QNAP QXG-10G1TD

538,00 zł

QXG-10G1TD

Jednoportowa (10Gbase-T) karta rozszerzeń sieciowych 10GbE, PCIe Gen3 x2, z fabrycznie zamontowanym uchwytem niskoprofilowym; w zestawie znajdują się również uchwyty niskoprofilowe płaskie oraz uchwyty pełnej wysokości

sprawdź dostępność

SKU: QXG-10G1TD Kategorie: , , Marka:

Opis na stronie producenta

Dimensions (L x W x H) 88.85×67.9×14.7mm mm
Controller RTL8127AT
Number of Ports 1 x NBASE-T (RJ45)
Connector NBASE-T (RJ45)
PCIe and Lanes PCIe Gen 3.0 x2
Transmission Rates 10Gbps/5Gbps/2.5Gbps/1Gbps/100Mbps
IEEE Standards IEEE 802.3an
IEEE 802.3
IEEE 802.3az
IEEE 802.3u
IEEE 802.3bz
IEEE 802.3ab

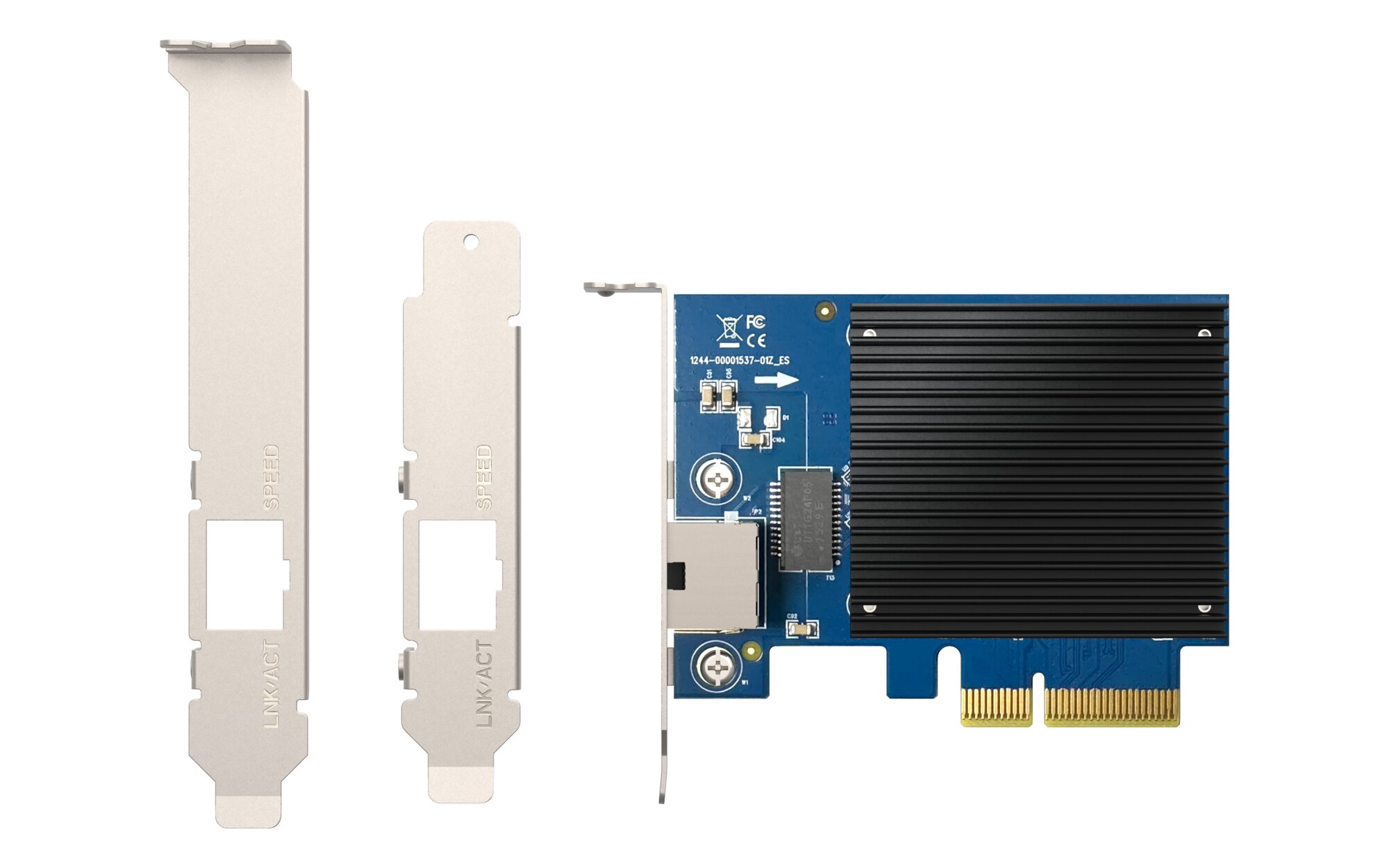

Bracket Low-profile bracket pre-installed; full-height and specialized (for selected QNAP NAS) brackets are bundled
Supported NAS operating systems QTS /QuTS 5.2.9 (and later)
Supported QNAP NAS Models with PCIe slot(s) (1 free slot required)
Support Ubuntu Commercial Linux Distribution Ubuntu 22.04./ 24.04
Support Windows Windows 11 25H2
Support Windows Server Windows server 2022, 2025
Port and Cable RJ-45; over CAT-6 class cable
Package Contents 1 x Network card; 1 x QIG; 3 x Brackets
Standard Warranty 3 years
Note: QNAP reserves the right to replace partial parts or accessories if the original is no longer available from its manufacturer/supplier. Any replacement would be fully tested and verified to meet strict compatibility and stability guidelines and will deliver identical performance to the original.
Product images are for illustrative purposes only and may differ from the actual product. Due to differences in monitors, colors of products may also appear different to those shown on the site.
Designs and specifications are subject to change without notice.

QXG-10G1TD
5-Speed 10GbE RJ45 Network Expansion Card: Seamless High-Speed Connectivity with Low Power Consumption

The QXG-10G1TD single-port 10GbE network expansion card is designed to meet the growing demand for high-speed networking across both NAS and PC environments, providing up to 10 times the bandwidth of traditional Gigabit Ethernet. Engineered for maximum versatility, the QXG-10G1TD not only delivers up to 10Gbps transfer speeds but also supports five speeds (10GbE / 5GbE / 2.5GbE / 1GbE / 100MbE). Its ease of use and low power consumption make it an ideal, cost-effective network upgrade for SOHO, small offices, and professional workstations.

  • 5-Speed (NBASE-T) Flexible Connectivity

    Supports 10GbE / 5GbE / 2.5GbE / 1GbE / 100MbE via Multi-Gigabit, ensuring seamless backward compatibility with existing network infrastructure for a smooth, cost-effective upgrade.

  • Effortless RJ45 Upgrades

    Utilizes a universally standard RJ45 port, allowing you to achieve full 10Gbps network speeds using existing Cat 6a cables, completely bypassing the massive expenses of fiber optic rewiring

  • Next-Gen Energy-Efficient Design

    Equipped with a highly efficient network controller that effectively reduces power consumption, minimizing heat generation while balancing top-tier performance with corporate ESG energy efficiency goals.

  • Optimized Jumbo Frame Transmission

    Supports Jumbo Frames to significantly improve the transfer efficiency of large files—such as 4K/8K video projects and intensive backups—by reducing packet processing overhead for smoother, high-throughput data pipelines.

  • Versatile NAS & PC Compatibility

    The QXG-10G1TD can be effortlessly installed in QNAP NAS, Windows®, and Linux® systems, unifying diverse hardware ecosystems and boosting cross-platform collaboration efficiency.

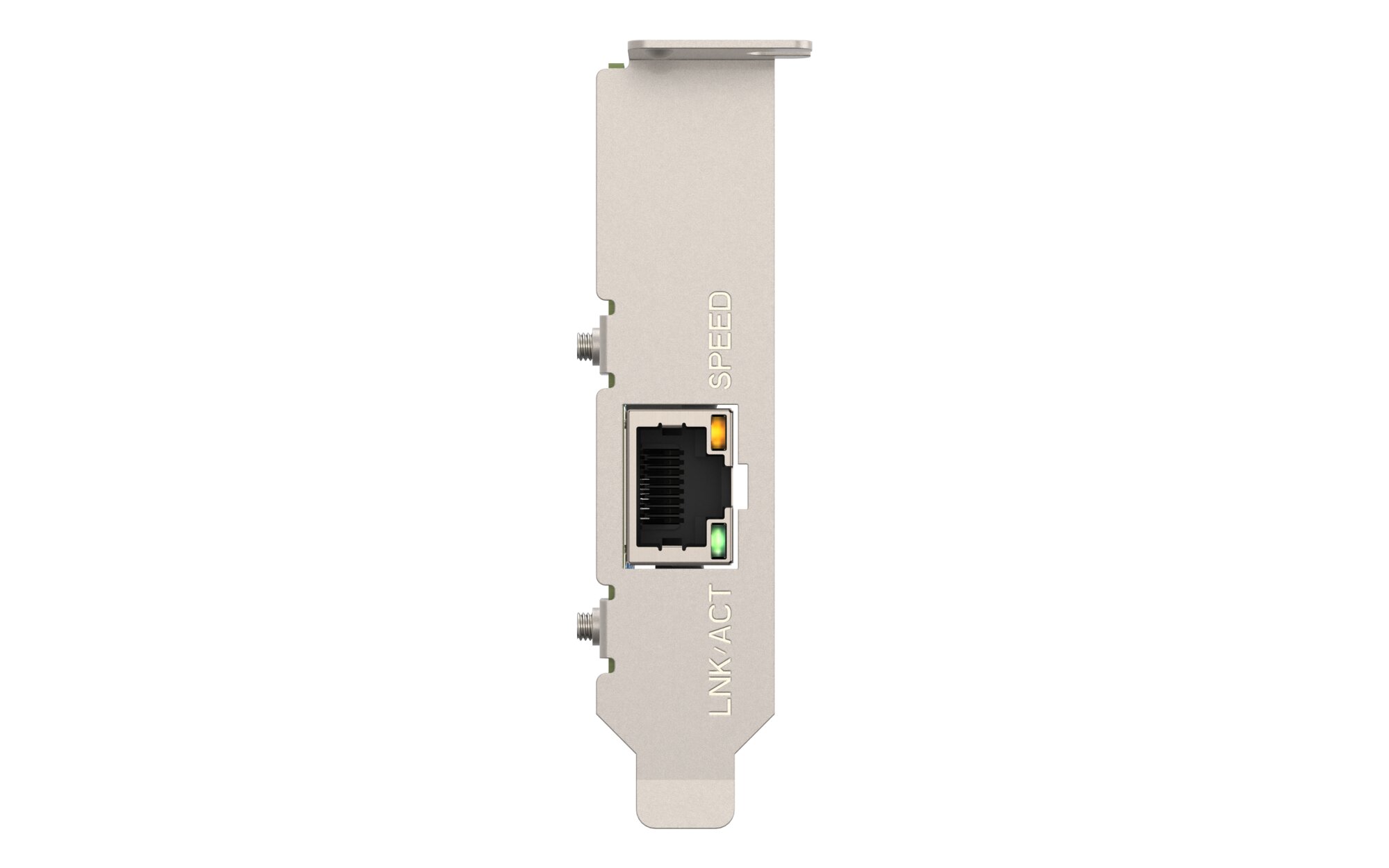

  • Intuitive LED Indicators

    Comes with clear, high-visibility LED indicators, making it convenient for IT staff to monitor network port status in real-time and accelerate troubleshooting workflows.

Suitable for NAS and PC

The QXG-10G1TD network expansion card supports QNAP NAS, Windows®, and Linux®, allowing you to easily add network ports to your devices for greater network bandwidth

• NAS: QTS 5.2.9 (or later), QuTS hero h5.2.9 (or later). Check compatibility
• Windows®: Windows 11® 25H2, Windows Server 2022®/2025® (Driver installation required)
• Linux®: Ubuntu® 22.04. LTS / 24.04 LTS (Driver installation required)

Installation Notes:
• Windows® devices: For Windows 11, please download the Win11 Auto Installation Program (NetAdapterCx); for Windows Server, please download the corresponding version of the NDIS driver.
• Ubuntu® devices: Please download the 10G Ethernet Linux driver (r8127).

Firmware Notice: QNAP network adapters are validated with firmware versions released or approved by QNAP. Firmware updates performed using unauthorized firmware packages or utilities are not supported by QNAP. Issues caused by unauthorized firmware modifications may not be covered under warranty or technical support.

Create a Seamless 10GbE Network Ecosystem

Maximize your infrastructure ROI by pairing the QXG-10G1TD with QNAP’s comprehensive range of 10GbE switches. This synergy allows small businesses and creators to deploy a high-speed network environment that accelerates data-intensive workflows while remaining highly cost-effective.

Cost-Effective Network Upgrades for SOHO & SMB

Upgrading your NAS and workstation networks shouldn’t drain your IT budget. The QXG-10G1TD provides a high-ROI, highly affordable upgrade path, delivering professional-grade connectivity perfectly suited for SOHO environments and small business owners.

Energy-efficient design

Equipped with a next-generation controller, the QXG-10G1TD significantly reduces power draw compared to legacy 10GbE solutions while maintaining peak high-speed performance. This energy-efficient architecture not only minimizes heat generation for 24/7 system stability but also lowers your overall Total Cost of Ownership (TCO), making it the ideal upgrade for SOHO and small offices.
