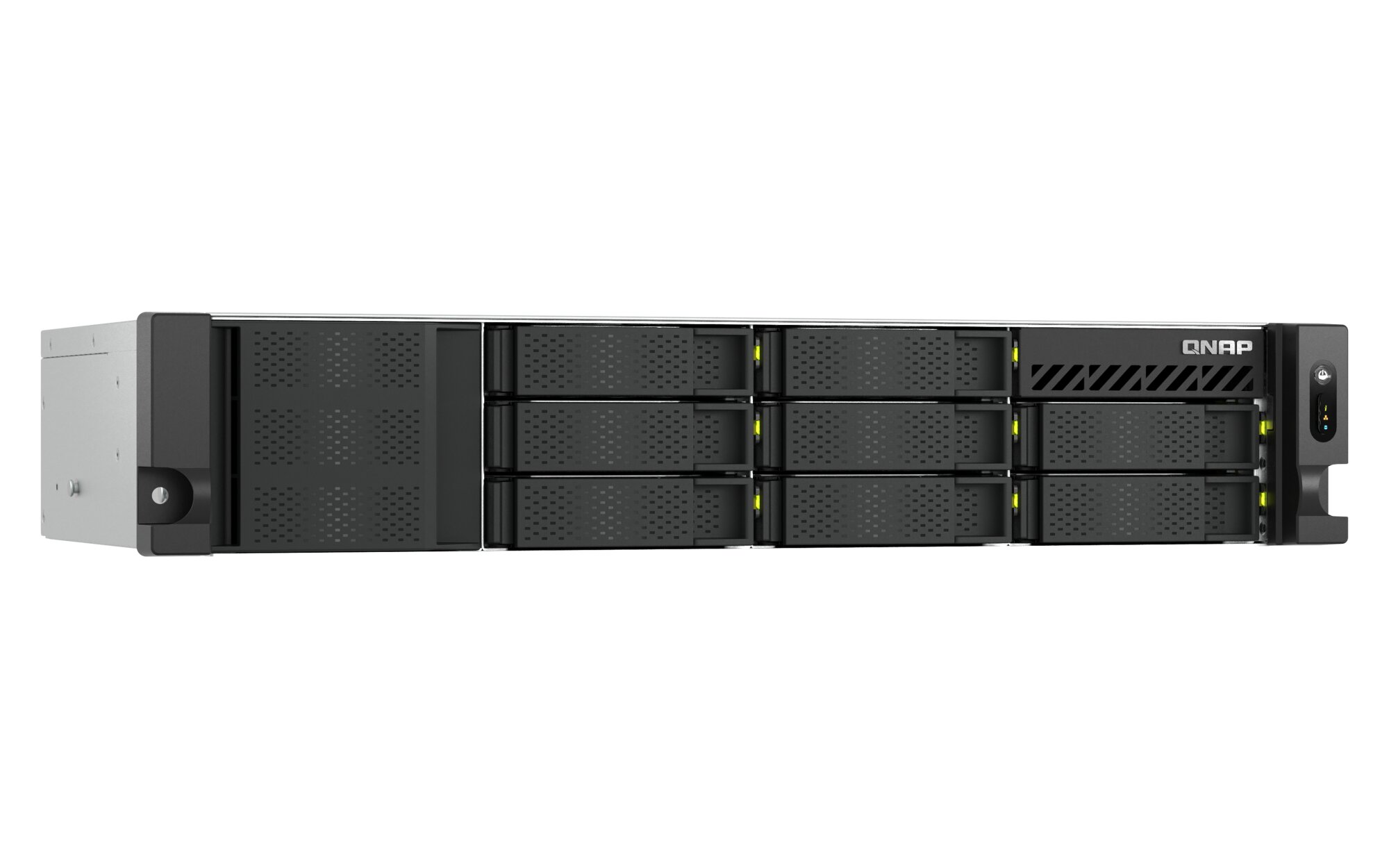

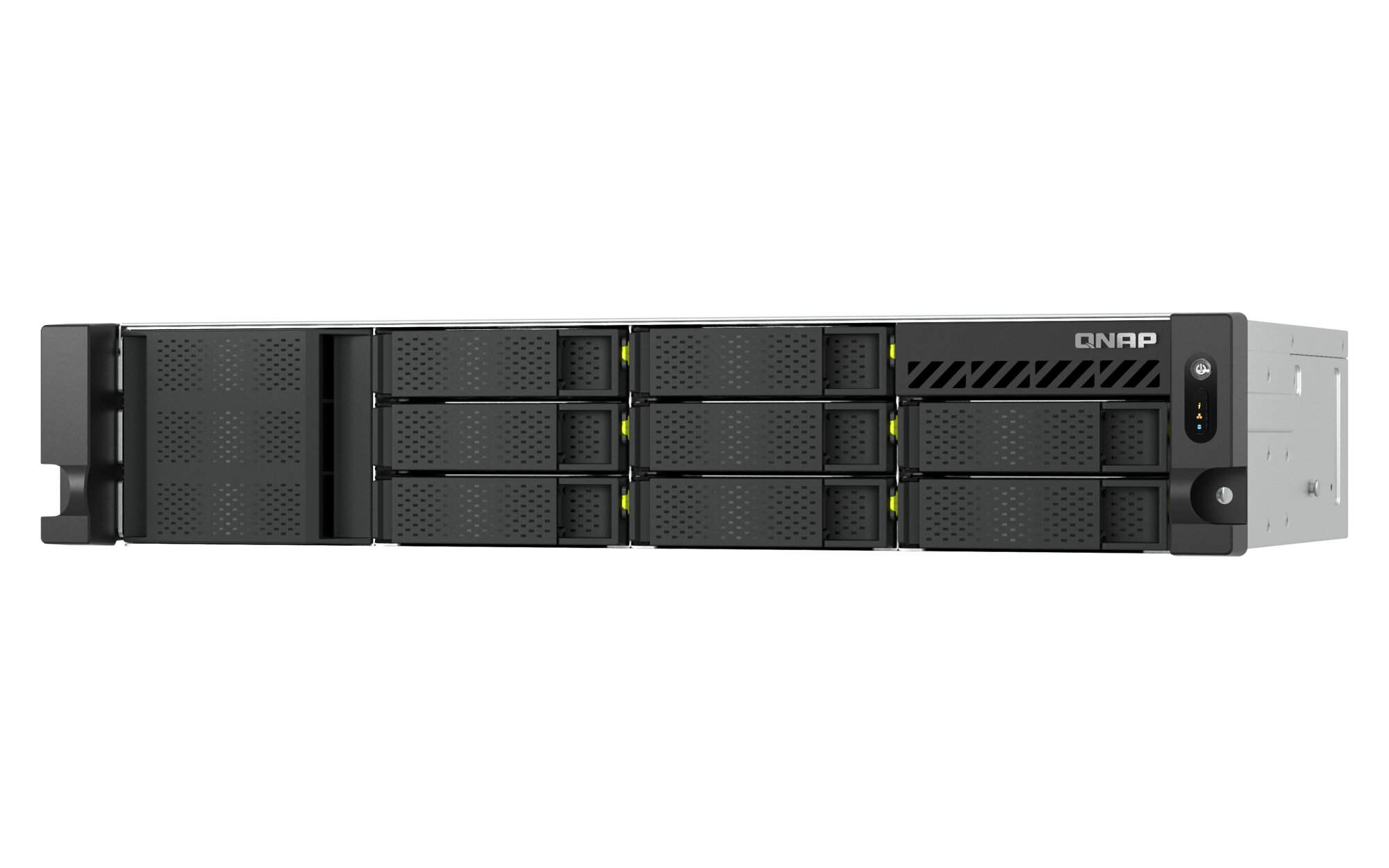

QNAP TS-h1065eU-RP-8G
QNAP TS-h1065eU-RP-8G - obrazek 2
QNAP TS-h1065eU-RP-8G - obrazek 3
QNAP TS-h1065eU-RP-8G - obrazek 4
QNAP TS-h1065eU-RP-8G - obrazek 5
QNAP TS-h1065eU-RP-8G - obrazek 6
QNAP TS-h1065eU-RP-8G - obrazek 7
QNAP TS-h1065eU-RP-8G - obrazek 8
QNAP TS-h1065eU-RP-8G - obrazek 9

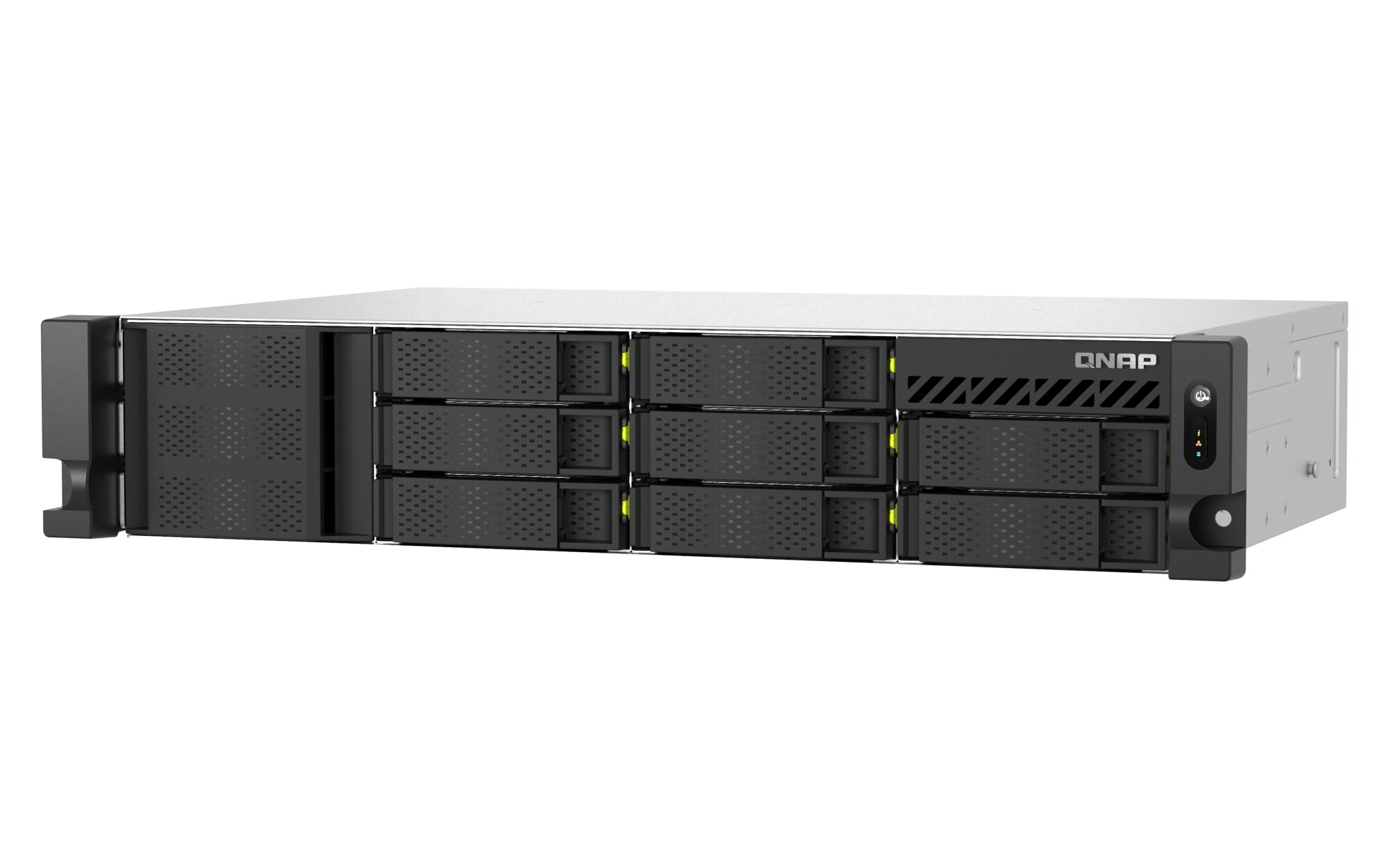

QNAP TS-h1065eU-RP-8G

10759,00 zł

TS-h1065eU-RP-8G

  • CPU: Intel 4-core processor
  • CPU Architecture: 64-bit x86
  • System Memory: 8 GB SODIMM DDR5
  • Maximum Memory: 16 GB (1 x 16GB)
  • Memory Slot: 1 x SODIMM DDR5
  • Flash Memory: 4GB (Dual boot OS protection)
  • Drive Bay: Front: 8 x 3.5-inch / Rear:2 x E1.S/M.2 NVMe Gen3 x1 slots
  • Hot-swappable: Yes
  • Standard Warranty: 3

sprawdź dostępność

SKU: TS-h1065eU-RP-8G Kategorie: , Znacznik: Marka:

Opis na stronie producenta

CPU Intel 4-core processor
CPU Architecture 64-bit x86
Floating Point Unit Yes
Encryption Engine  (AES-NI)
Hardware-accelerated Transcoding Yes
System Memory 8 GB SODIMM DDR5
Maximum Memory 16 GB (1 x 16GB)
Memory Slot 1 x SODIMM DDR5
Flash Memory 4GB (Dual boot OS protection)
Drive Bay Front: 8 x 3.5-inch
Rear:2 x E1.S/M.2 NVMe Gen3 x1 slots
Drive Compatibility 3.5-inch bays:
3.5-inch SATA hard disk drives
2.5-inch SATA solid state drives

E1.S/M.2 slots:
E1.S NVMe SSD
M.2 NVMe SSD
Hot-swappable Yes
M.2 Slot Optional via a PCIe adapter
SSD Cache Acceleration Support Yes
2.5 Gigabit Ethernet Port (2.5G/1G/100M) 2 (2.5G/1G/100M/10M)
5 Gigabit Ethernet Port (5G/2.5G/1G/100M) Optional via network adaptor
10 Gigabit Ethernet Port Optional via network adaptor

Optional via PCIe expansion card
Wake on LAN (WOL) Yes
Jumbo Frame Yes
PCIe Slot 1 x PCIe Gen3 x2

Slot 1: PCIe Gen 3 x2

Card dimensions for PCIe slot 1：97 x 68.9 x 18.76 mm / 3.82 x 2.71 x 0.74 inches.
USB 2.0 port 3
USB 3.2 Gen 2 (10Gbps) Port 1 x Type A USB 3.2 Gen 2
Form Factor 2U Short Depth Rackmount
LED Indicators HDD 1-8, E1.S/M.2 1~2, Status, LAN, Expansion, Power
Buttons Power, Reset
Dimensions (HxWxD) 88.6 × 432 × 297.4 mm
Weight (Net) 9.21 kg
Weight (Gross) 10.71 kg
Operating Temperature 0 – 40 °C (32°F – 104°F)
Storage Temperature -20 – 70°C (-4°F – 158°F)
Relative Humidity 5-95% RH non-condensing, wet bulb: 27˚C (80.6˚F)
Power Supply Unit 300W (x2), 100-240V
Power Consumption: Disk Standby Mode 31.742 W
Power Consumption: Operating Mode, Typical 55.83 W

Tested with drives fully populated.
Fan 3 x 60mm, 12VDC
System Warning Buzzer
Standard Warranty 3
Max. Number of Concurrent Connections (CIFS) – with Max. Memory 1500

TS-h1065eU-RP

2U short-depth NAS equipped with advanced E1.S/M.2 PCIe NVMe slots and expandable with 10GbE connectivity

TS-h1065eU-RP is designed for small and medium-sized businesses. Its 2U short-depth rackmount design makes it ideal for deployment in space-constrained environments. TS-h1065eU-RP is powered by an Intel® quad-core processor, delivering 8 × 3.5-inch SATA drive bays, two highly expandable E1.S/M.2 PCIe NVMe slots, and a dual power supply design, significantly reducing the risk of unexpected power outages and ensuring stable system operation—all within a compact 30 cm (12-inch) chassis. This combination of features is unmatched by competitors, making it a high-performance and highly efficient NAS solution for multitasking workloads.

short-depthintel-processor-2025ddr5-ram2.5GbEusb3.2-gen1pcieqts-quts-hero

  • Flexible E1.S/M.2 slots

    Two built-in E1.S/M.2 NVMe PCIe slots allow flexible configuration of SSD caching or installation of the QXG-ES10G1T network module, ensuring the NAS is never limited in its specifications.

  • DDR5 RAM

    Built-in high-performance and low power consumption DDR5 RAM supports In-Band ECC (IBECC) for data reliability. Up to 16GB RAM can be installed.

  • Built-in QuTS hero operating system

    Utilizing the ZFS file system, it provides data protection features such as self-healing of static data, WORM, data deduplication, and snapshot backups, ensuring data integrity and system stability.

  • Dual 2.5GbE as standard

    Accelerate data transfer and backup speeds by enabling Port Trunking or SMB Multichannel.

  • PCIe Gen 3 slot

    Supports 5/10GbE NIC or QM2 expansion cards, offering flexible upgrades for high-speed networking and enhanced application performance.

  • Long-term supply

    TS-h1065eU-RP will be available and supported by QNAP for an extended period, up to 2031.

QuTS hero Operating System

Honored with 2026 MSP Today Product of the Year Award

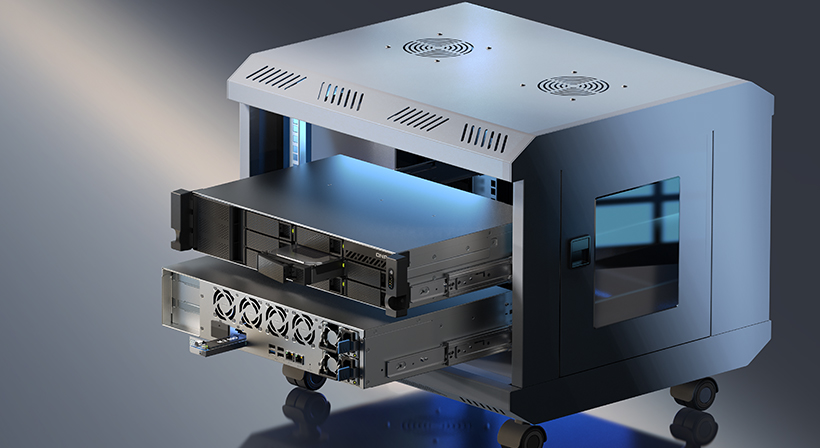

2U short-depth design for flexible deployment

TS-h1065eU-RP has a short chassis depth of only 12 inches (297mm), making it easy to install in small cabinets and various space-limited environments, including factories, small offices, surveillance rooms, audiovisual rooms, or in-vehicle applications.

Compatible with the short rail kit RAIL-B02 and Rail-S01.

High-performance Intel® quad-core processor

  • Processor

    Intel® quad-core processor

    More specs and details

  • Memory

    Built-in DDR5 non-ECC RAM (Supports In-Band ECC); upgradable to 16GB (1 x 16GB)

  • AES-NI Encryption Engine

    AES 256-bit hardware-accelerated encryption boosts system performance while securing sensitive data

  • In-Band ECC

    Enhances system security and data reliability

Transfer speed

2 x 2.5GbE SMB sequential throughput (1M) Read

588 MB/s
 Write

591 MB/s
2 x 10GbE SMB sequential throughput (1M) Read

1528 MB/s
 Write

1507 MB/s

Tested in QNAP Labs. Figures may vary by environment.

Test Environment:
NAS: TS-h1065eU with QXG-10G2TB
OS: QTS 5.2.6.3209
Volume type : 8 x Samsung 870 EVO 1TB SATA SSD , RAID 5, thick volume
Client PC : Windows Server 2019 Standard, Intel i7-6700 3.4GHz, 64GB RAM, LAN-10G2T-X550
IOmeter : RAM*4, 30-sec ramp up time, 3-min seq. run time, 1 workers, 32-outstanding

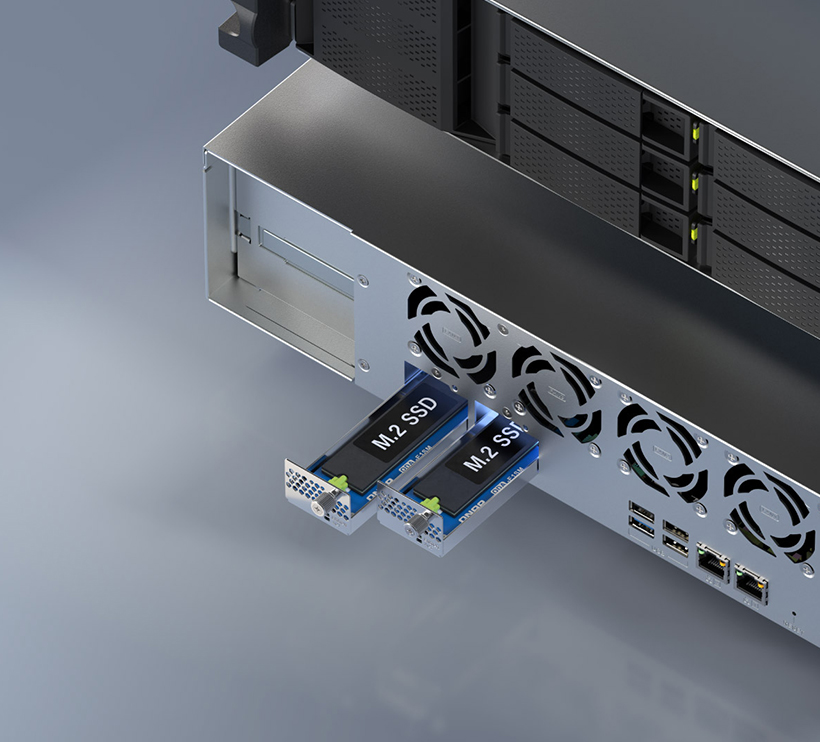

Powerful expansion with E1.S / M.2 PCIe NVMe slots

TS-h1065eU-RP comes with three E1.S / M.2 PCIe NVMe slots that offer unparalleled NAS flexibility for boosting performance. To reach its full potential, it is recommended to upgrade the TS-h1065eU-RP to support high-speed 10GbE networking and pair it with M.2 SSDs.

  • Enable SSD caching

    Install E1.S / M.2 PCIe NVMe SSDs and enable SSD caching to reduce latency and enhance random read/write efficiency (IOPS) for small files.

    Learn more SSD cache acceleration

  • Create SSD system drive

    Use the E1.S / M.2 PCIe NVMe SSD storage pool as the QuTS hero system drive to achieve optimal NAS system performance, efficient application metadata management, and optimized database operations.

  • Upgrade to 10GbE

    Install the QXG-ES10G1T 10GbE network module for faster network connectivity.

    Learn more QNAP 10GbE solutions

  • Configure SSD system drive

    Use an E1.S / M.2 PCIe NVMe SSD storage pool as the QuTS hero system drive to significantly enhance application metadata management and database performance, delivering improved overall system responsiveness.

  1. HS-M2SSD-07 or TPAD-M2SSD-04 thermal kit (optional purchase) is recommended for optimizing M.2 PCIe NVMe SSD cooling efficiency for stable data transfer.
  2. With the QDA-E1SM2 adapter, it supports M.2 NVMe SSDs, providing a hot-swappable solution.
  3. A TRAY-E1S-01 drive tray (sold separately) is required to install 9.5/15mm E1.S SSD.

Surpass the competitor with standard 2.5GbE and flexible 10GbE upgrade

In modern business IT, a NAS with only 1GbE is a performance bottleneck. TS-h1065eU-RP comes with faster network connectivity which enables businesses to facilitate bandwidth-demanding applications, such as large file access, backup/restore, virtualization, and more.

  • Built-in 2.5GbE

    TS-h1065eU-RP comes with two 2.5GbE ports, outperforming similar competitor NAS that only provides 1GbE.

  • Upgradable to 10GbE

    With the PCIe Gen3 slot and E1.S/M.2 PCIe NVMe slots, a 10GbE network module can be easily installed

  • Enhance overall bandwidth

    Obtain increased network speed and fault tolerance by configuring Port Trunking.

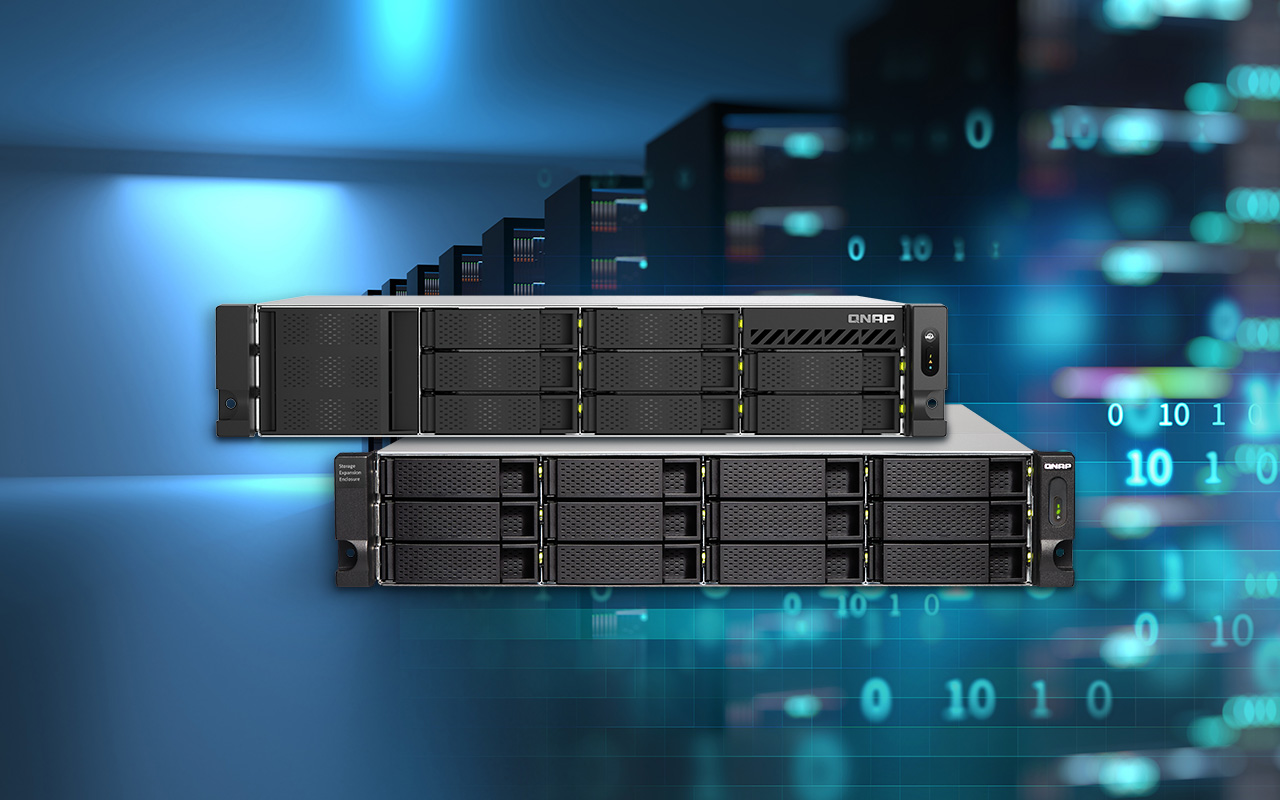

Future-proof your storage with JBOD scalability

As file volumes and storage needs grow, the TS-h1065eU-RP can connect up to one QNAP 12-bay TL-R1200C-RP JBOD expansion units, adding up to 12 additional hard drives and providing exceptional storage capacity.

View Compatible Expansion Devices >

QuTS hero operating system

Designed for enterprises, the QuTS hero operating system adopts the highly reliable ZFS file system to provide utmost data integrity and stability for mission-critical storage. QuTS hero further optimizes SSD performance and endurance to meet businesses’ stringent demands for performance and reliability. Explore the QuTS hero operating system Check out QuTS hero’s latest features

  • Automatic repair of corrupted data

    ZFS supports self-healing for silent data corruption, automatically detecting damaged data to ensure data integrity.

  • Data immutability

    Defend against ransomware by creating a WORM (Write Once, Read Many) folder to prevent data from being overwritten, modified, or deleted, while also enabling immutable backups.

  • Power failure protection

    ZIL (ZFS Intent Log) protects against potential data corruption caused by power failure by safeguarding unwritten data.

  • Data reduction

    Inline data deduplication reduces storage consumption for maintaining optimal disk capacity.

  • Prevent simultaneous SSD failure

    The patented QSAL algorithm automatically and regularly detects RAID-level SSD lifespan to prevent simultaneous SSD failure, avoiding RAID crashes and data loss.

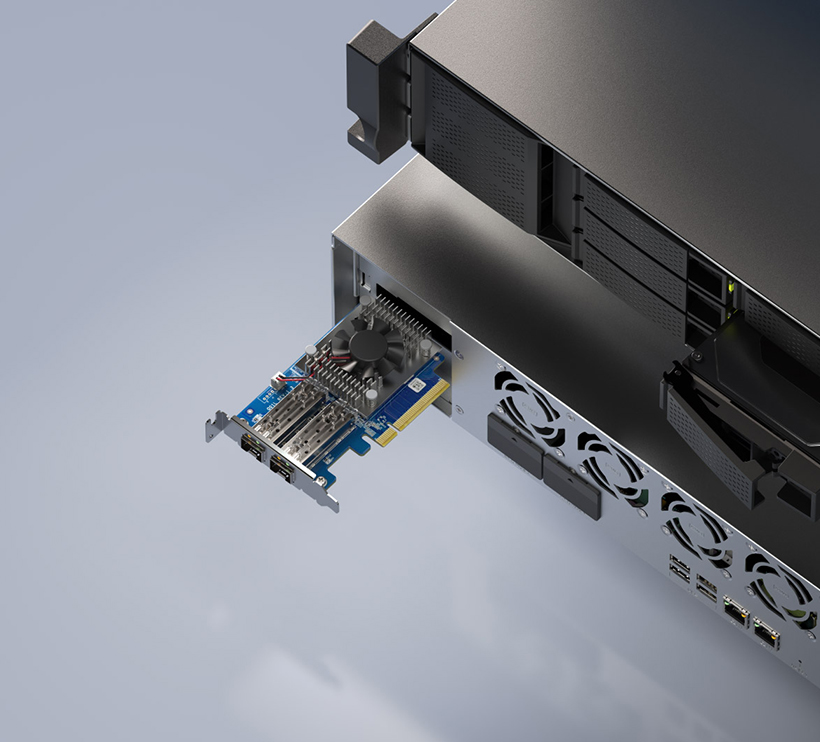

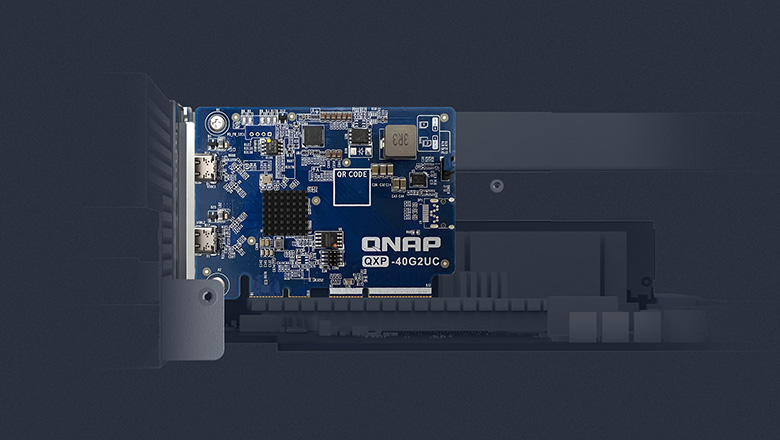

Abundant I/O capabilities with PCIe expansion

QNAP offers a wide range of expansion cards to add versatile functions to your NAS. TS-h1065eU-RP has two PCIe Gen 3 x4 slots that support various expansion cards for expanding application potential.

All-in-one backup solution

The TS-h1065eU-RP supports various apps that cover all your backup needs. See all

  • NAS/File server

    Supports multiple protocols such as Rsync, FTP and CIFS/SMB for backing up different file servers.

  • Cloud

    Back up NAS data to/from major cloud services, including QNAP’s myQNAPcloud One.

  • Mac

    Set a QNAP NAS as Time Machine backup destination.

  • Windows® PC/Server

    Back up full PC/server systems and manage all backups from multiple devices through a single interface. Learn how

  • VM

    Back up VMware® vSphere and Microsoft® Hyper-V with dramatically lower costs than others. Explore

  • Google™ Workspace/Microsoft 365®

    Use QNAP’s HDP for SaaS to back up, recover, and manage the data of 10,000+ users over multiple Google™ Workspace and Microsoft 365®.

  • WordPress

    Backup, restore or migrate your WordPress site. QNAP NAS can also host a website. Learn more

Secondary backup or restore

By supporting secondary backup, replication, or restore in a single interface, QNAP makes your business Disaster Recovery (DR) quick, easy, and effective. Explore more >

  • NAS and file server

    Use the same interface to configure and run backup, replication, and restore jobs.

  • Cloud

    Supports advanced technologies to save backup time, spaces, and effort.

  • myQNAPcloud One

    QNAP-hosted cloud storage that only charges for storage space, with transmitting data being completely free.

Real-time sync for seamless team collaboration

Whether you’re in the office or on the go, you can access the latest files synchronized to TS-h1065eU-RP on multiple devices for efficient teamwork. Version Control keeps track of document changes, simplifying file management and restoration.

  • Cross-Device Sync
    Sync NAS files across multiple devices, including desktops, laptops, tablets, and phones.
  • Custom Sync Rules
    Set rules for automatic file sync and conflict resolution.
  • Team Folders
    Share folders with specific teams for collaborative file management.

Explore more

Multi-level security strategy for enterprises

Bolster business data security with resilience from all aspects

Connection

Permission

Transmission

  • SMB signing acceleration

    Enable SMB signing to facilitate secure SMB file transfer, while QNAP’s exclusive algorithm greatly increases data signing efficiency and data transmission performance.

Assessment

  • Security and risk assessment

    Security Center proactively detects NAS status and unusual file activity, and offers instant protective measures.

  • Centralized notification management

    Centrally manage system events and alert notifications via Notification Center to stay up-to-date with NAS status.

  • Block malware attacks

    Malware Remover regularly scans your NAS. When detecting malware attacks, infected files are immediately blocked and removed to ensure NAS security.

Construct a multi-level security defense system for enterprises

How to configure your network and connect your NAS to prevent malware attacks?

Secure data access at your fingertips

  • Access NAS data like from a local folder

    Map your TS-h1065eU-RP NAS folders as network drives on your computer, and access files like they were stored locally.

  • Cross-platform file sharing

    Supporting SMB/CIFS, AFP, WebDAV, and NFS protocols, the TS-h1065eU-RP enables seamless file sharing and transfer across Windows®, macOS® and Linux® computers, without compatibility concerns.

  • Secure remote access

    Use QVPN to create a secure virtual private network to access to the TS-h1065eU-RP. Businesses can further leverage QuWAN to swiftly set up Mesh VPNs, allowing employees to easily join VPN and systems on intranet.

Trusted storage for virtualization

Powerful yet affordable

Cost-effective iSCSI/IP-SAN storage solutions with high bandwidth for reduced latency.

Flexible & Scalable

Supports multiple protocols and expansion options to meet business needs.

Data protection

Offers LUN encryption, snapshots, and backup to ensure data safety.

Object storage certified as Veeam® Ready

Use the TS-h1065eU-RP with QuObjects as the premier destination for S3 object storage and backup. QuObjects supports Object Lock, validated as Veeam® Ready – Object with Immutability. Learn More

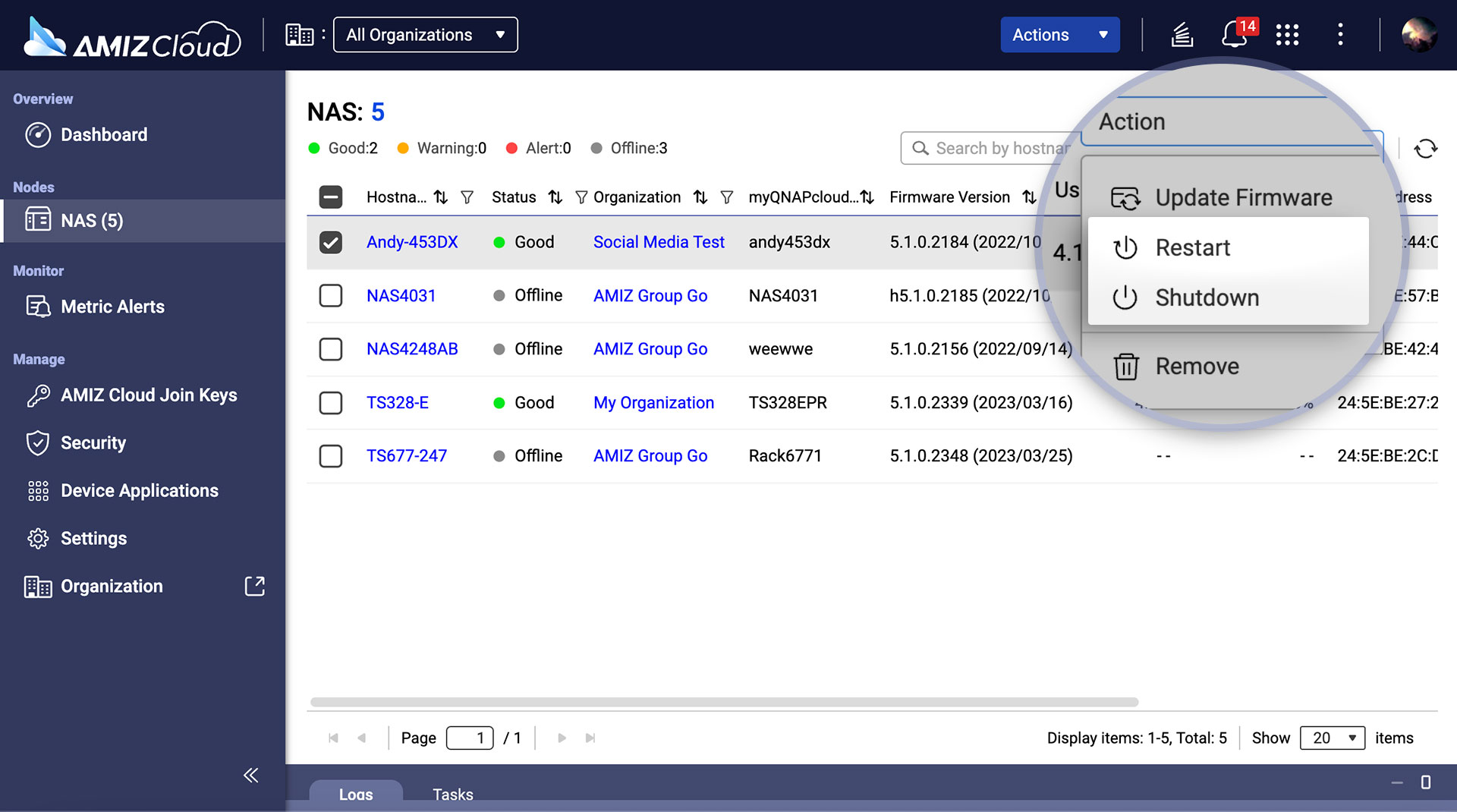

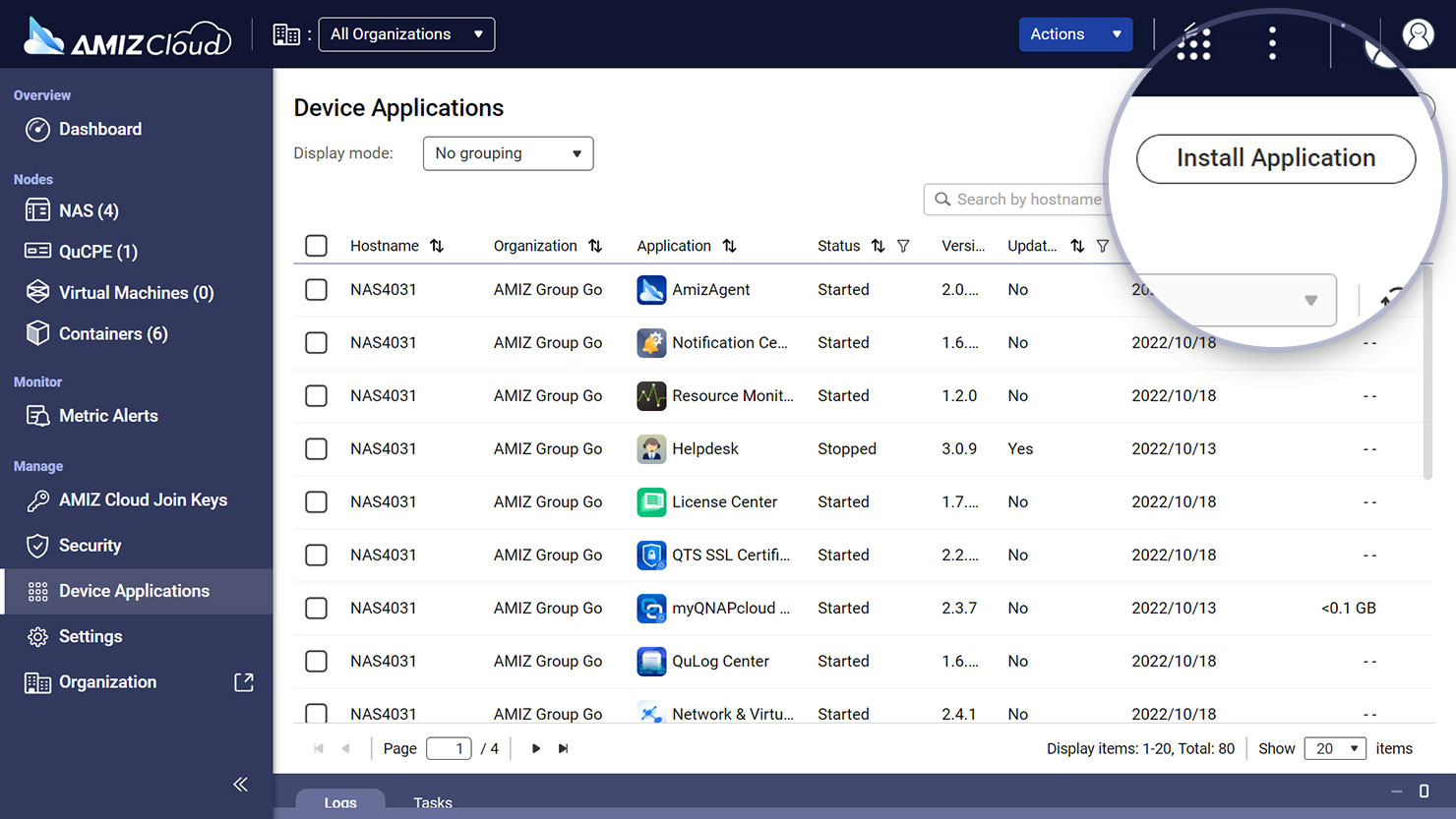

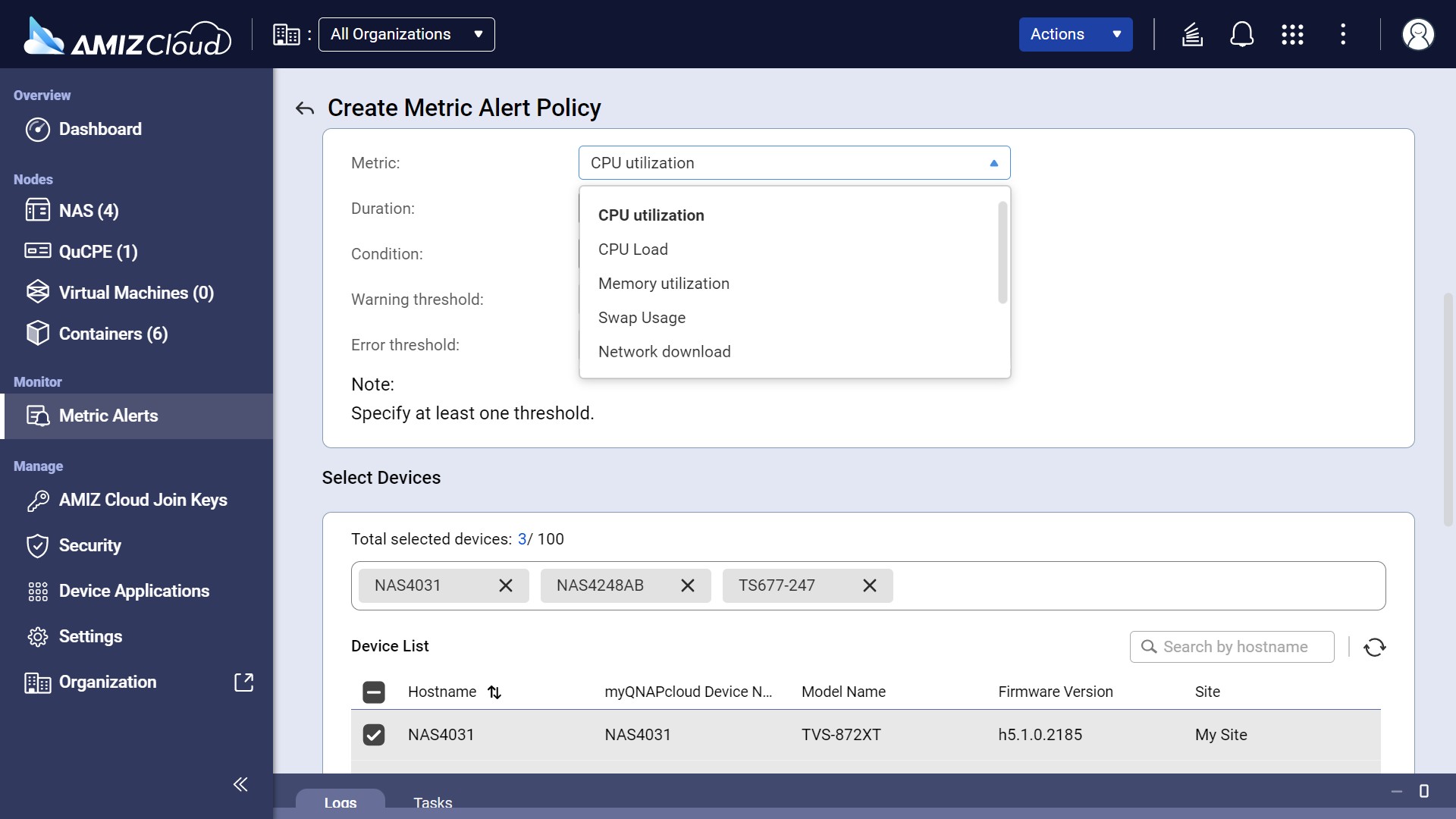

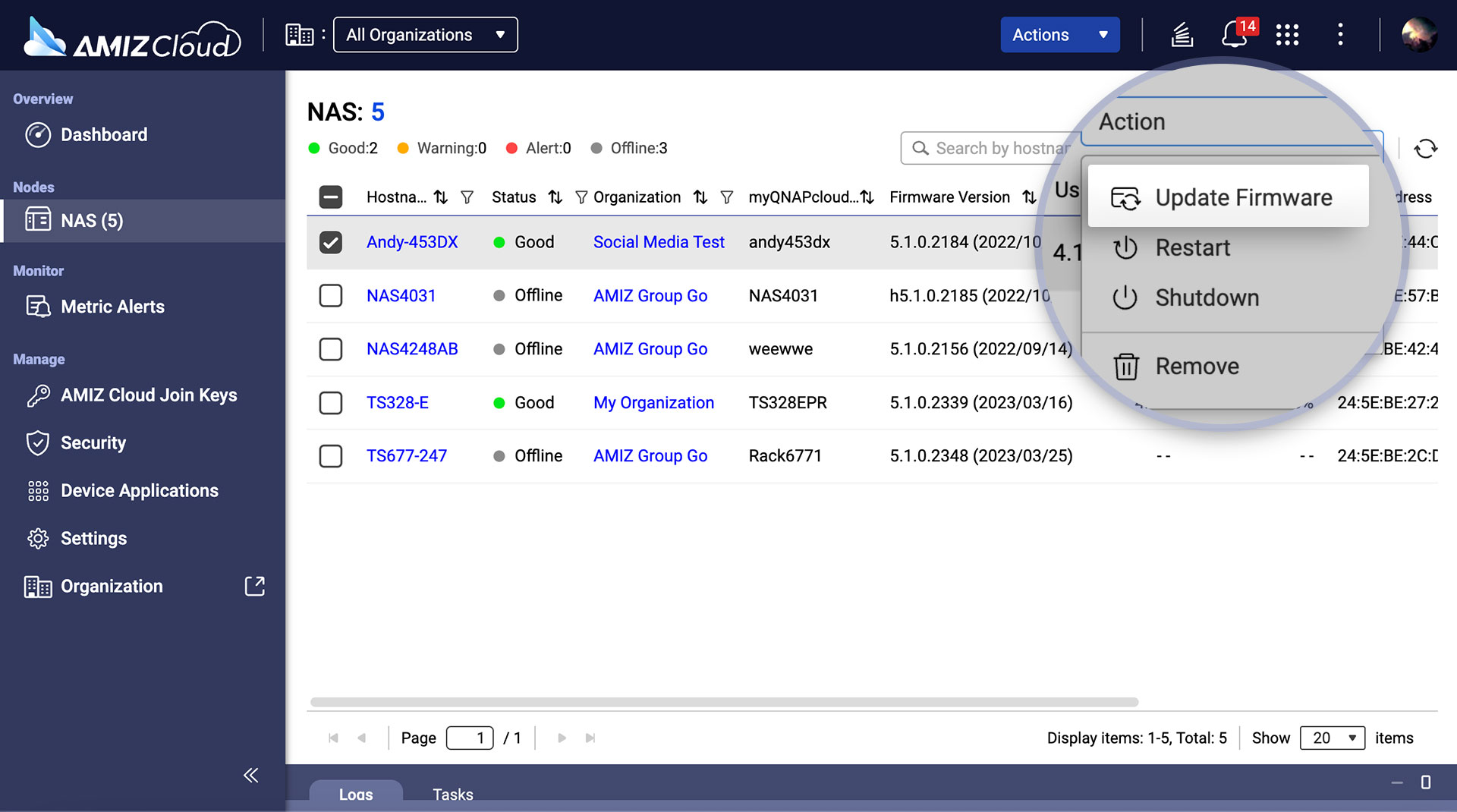

Centrally manage multi-site NAS from the cloud

QNAP provides AMIZcloud, a central management platform for large-scale NAS management. With AMIZcloud, IT administrators can remotely manage multi-site NAS devices and networks to boost productivity, enhance security, and optimize costs.

Organization-based authority management for multi-site NAS

Quickly join multi-site NAS to a secure VPN

Run VMs and Containers

With no additional fees, you can run multiple VMs of different OS on TS-h1065eU-RP. This allows you to deploy multi-tenant environments and applications to increase management efficiency and save hardware costs.

  • Containers

    Run Docker®, LXD, Kata Containers and download Container Apps using Container Station.

  • VM High Availability

    VM Live Migration and HA (High Availability) guarantee continuous operation and minimal downtime.

  • Network & Virtual Switch

    Flexibly allocate virtual network resources and configure VLANs to ensure virtual services via the virtual network topology in Network & Virtual Switch.

Surveillance NAS solution for Business

Surveillance NAS is an easy-to-deploy and cost-efficient all-in-one intelligent surveillance platform that integrates AI analytics, video backup and fault tolerance, centralized management (CMS), and surveillance cloud services, meeting professional surveillance requirements across diverse deployment scenarios. A single NAS supports up to 1,024 channels, leveraging file-based writing technology to enhance processing performance and meet the demands of multi-channel, high-capacity, and long-duration recording. Learn more about QVR Surveillance NAS solution

QNAP solves all your surveillance system challenges in business

Trouble finding surveillance footage when the exact time of events is unknown?

How to efficiently centralize backup of multi-site surveillance footage from various branches/stores to the headquarters?

Difficulties using third-party’s surveillance APIs on your existing surveillance systems?

IP cameras require network and power. Check out how a retailer deploys surveillance network with QVR surveillance solution.

Use AI-powered drive failure prediction to safeguard your data

  • Powered by cloud-based AI engine, DA Drive Analyzer can predict drive failure and lifespan. Enterprises can plan drive replacement in advance to prepare for drive failure before it occurs and prevent data loss.

    • ️Supports SATA / SAS / NVMe drive analysis
    • Supports Proxy sever connection
    • Completes drive failure prediction in 24 hours
    • Customized drive data upload time
    • All NAS include 1 drive license for permanently free

    Learn more

Extend hardware warranty up to 5 years

The TS-h1065eU-RP is backed by a 3-year warranty at no additional cost.
You can also purchase a warranty extension that extends your warranty coverage up to 5 years.

QNAP Warranty Service
