QNAP TL-D810TC4

4250,00 zł

TL-D810TC4

  • Interfejs połączenia JBOD: USB
  • Wnęka dysków: 8 x 3.5-inch
  • Kompatybilność dysków: 3.5-inch bays (3.5-inch SATA 6Gb/s, 3Gb/s hard disk drives, 2.5-inch SATA 6Gb/s, 3Gb/s solid state drives)
  • Gwarancja: 2 lata

sprawdź dostępność

SKU: TL-D810TC4 Kategorie: , Znacznik: Marka:

Opis na stronie producenta

JBOD Connection Interface USB
Drive Bay 8 x 3.5-inch

The system is shipped without HDD.
For the HDD compatibility list, please visit https://www.qnap.com/compatibility/
Drive Compatibility 3.5-inch bays:
3.5-inch SATA 6Gb/s, 3Gb/s hard disk drives
2.5-inch SATA 6Gb/s, 3Gb/s solid state drives

You can only use one disk type (HDD or SSD) in a RAID group. Combining different types of disk in one RAID group is not supported.
Hot-swappable Yes
Form Factor Tower
Host Interface 1 x USB 4 (40Gbps) Type-C
LED Indicators HDD 1-8, Status, Link, Fan error
Buttons Power switch
Dimensions (HxWxD) 188.2 × 329.3 × 281.4 mm

Dimensions do not include foot pad (foot pad may be up to 30mm / 1.18 inches high depending on model)
Weight (Net) 6.18 kg
Operating Temperature 0 – 40 °C (32°F – 104°F)
Storage Temperature -20 – 70°C (-4°F – 158°F)
Relative Humidity 5-95% RH non-condensing, wet bulb: 27˚C (80.6˚F)
Power Supply Unit 250W PSU, 100 – 240V
Fan Mode Switch  (Auto, high, medium, low)
Fan 2 x 120mm, 12VDC
System Warning Buzzer
Kensington Security Slot Yes
QTS / QuTS hero Yes
Windows Yes
Ubuntu Yes
Standard Warranty 2

TL-D810TC4 (USB 4)

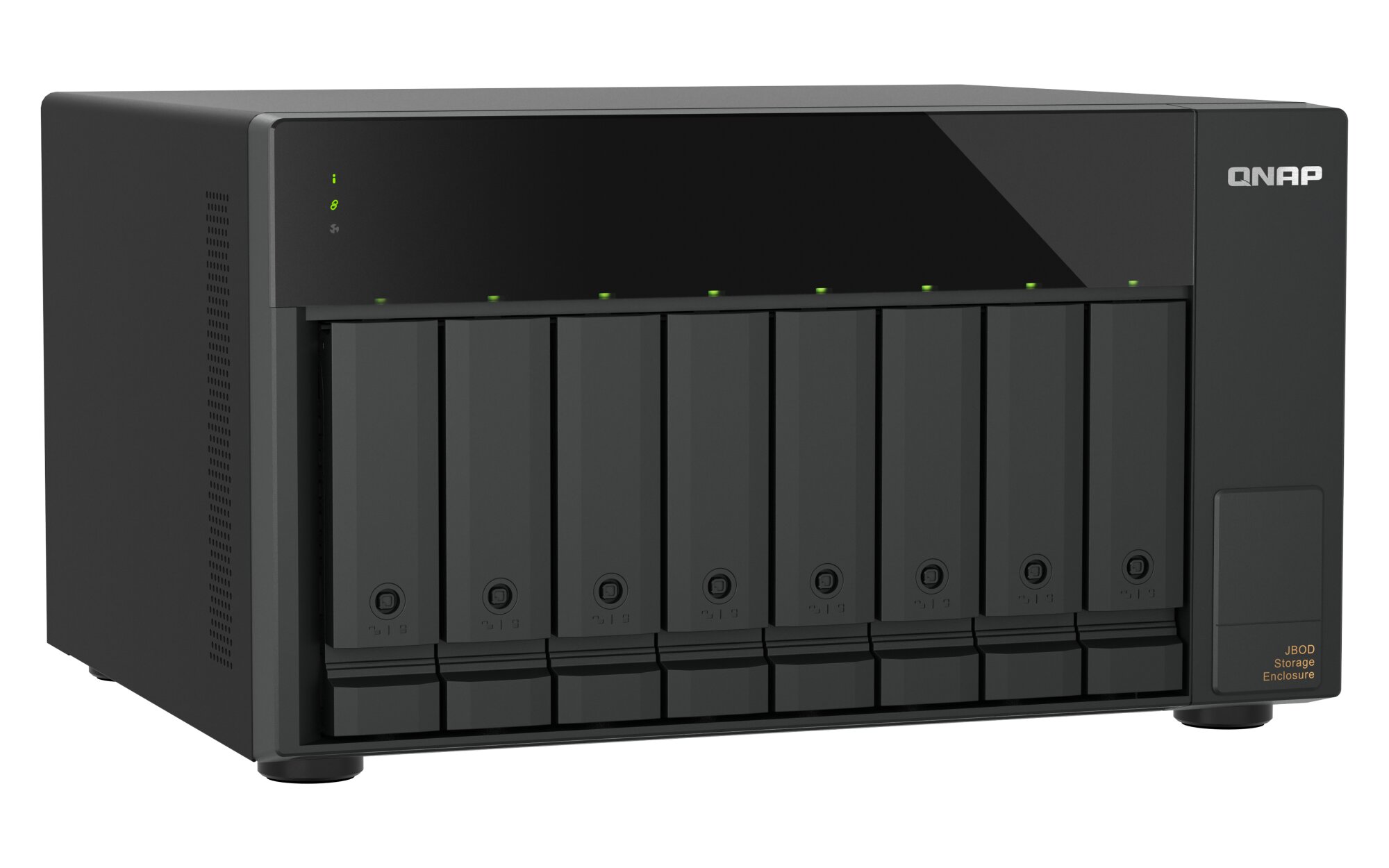

8-bay Desktop USB 4 Type-C JBOD

The desktop TL-D810TC4 features eight SATA 6Gb/s hard drive slots, supporting 3.5-inch/2.5-inch SATA HDDs or SSDs. With a USB 4 Type-C interface, it is also compatible with Thunderbolt™ 3/4, offering transfer speeds up to 40Gbps, making large-file access and backups faster and more efficient. TL-D810TC4 is the perfect expansion solution for creators and personal users with high storage demands, providing high-speed access, convenient deployment, and easy management of data and backups.

Please Note:
1. TL-D810TC4 currently supports QTS 5.2.x (or later) and QuTS hero 5.2.8 (or later) operating systems only.
2. When connecting this product via the QXP-40G2UC, some NAS models require a minimum BIOS version update. Please refer to the Compatibility List.
3. TL-D810TC4 is compatible with USB 4 (for NAS, Windows PC, and Mac) ,Thunderbolt™ 3 (for NAS and Mac), Thunderbolt™ 4 (for NAS, Windows PC, and Mac) ports.
4. TL-D810TC4 is compatible with USB 4 and Thunderbolt™ 4 only. USB 3 and earlier versions are not supported.
5. TL-D810TC4 can only be migrated with TL USB series JBODs, and not with other JBODs or devices.
6. To avoid abnormal performance, you must follow the proper power-on and power-off procedures as per the user manual.
7. To ensure optimal system compatibility, transfer performance, and data integrity, please connect the external enclosure directly to the USB port of your NAS, PC, or Mac. Do not connect a USB hub or docking station between the host system and the expansion unit.

  • Flexible Expansion for NAS, PCs, and Macs

    Compatible with QTS 5.2.x/QuTS hero 5.2.8 (or later), Windows 11 (or later), macOS 12.0 (or later), Ubuntu 22.04 (or later), and other systems, TL-D810TC4 allows flexible storage expansion up to 208 TB (maximum raw capacity: eight bays * 26 TB), ensuring both data security and ease of management.

  • High-Speed 40Gbps Transfer

    Utilizing USB 4 high-speed transfer, it supports up to 40Gbps (actual speeds depend on the device and cables) and supports QNAP NAS, Mac, Windows systems compatible with Thunderbolt™ 4.

    Note: A USB 4 Type-C cable is included. We recommend using a USB cable no longer than 1 meter.

  • Supports SATA Hard Drives

    With SATA 6Gb/s hard drive slots, it ensures reliable continuous read performance for smooth and fast operations.

  • Supports UASP

    Supports UASP (USB Attached SCSI Protocol), which significantly improves transfer speeds and reduces data delay and wait times.

  • Host-based power management

    When the main device powers on or off, JBOD automatically synchronizes, improving system stability and reducing operational risks.

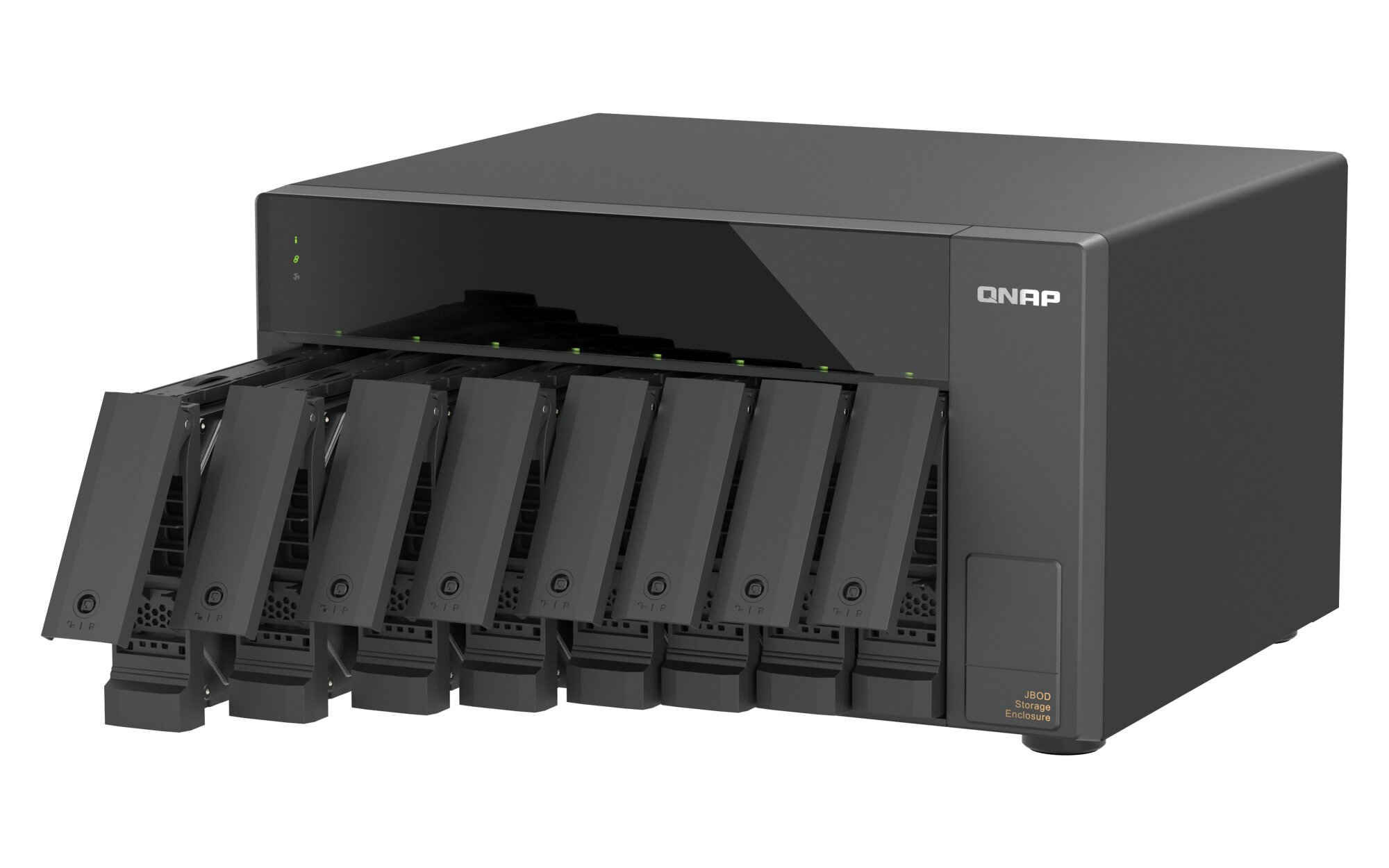

  • Lockable Hard Drive Slots

    With the included key, you can lock each hard drive slot, preventing removal of drives and ensuring the physical safety of your data.

USB 4 Type-C connectivity delivers even faster read performance!

TL-D810TC4 is equipped with a USB 4 Type-C port, supporting 40Gbps high-speed transfer, allowing rapid large-file transfers via USB, making it more versatile, efficient, and convenient. Combined with the built-in UASP (USB Attached SCSI Protocol), it significantly improves transfer speeds and reduces data delay and wait times.

Note: To utilize UASP, your computer and OS must support it.

Transfer Performance

QTS RAID 0 Read

2976 MB/s
 Write

2236 MB/s
QTS RAID 5 Read

2977 MB/s
 Write

1802 MB/s
Windows RAID 0 Read

2734 MB/s
 Write

2272 MB/s
Windows RAID 5 Read

2720 MB/s
 Write

717 MB/s
Ubuntu RAID 0 Read

2997 MB/s
 Write

2191 MB/s
Ubuntu RAID 5 Read

2977 MB/s
 Write

1339 MB/s

Tested in QNAP laboratories. Data may vary depending on actual environment.

Test Environment:
NAS: TVS-h874T, Intel Core i7 12-core Processor, 32GB RAM
Volume type: 8 x Samsung 870 EVO 1TB

More Space for Your NAS

With QNAP NAS’s Storage & Snapshots Manager, you can easily set up independent RAID groups, create storage pools, monitor S.M.A.R.T. status, and configure notifications to keep track of your hard drive health.

1. Create an Independent Storage Pool

Using QNAP software RAID, you can create an independent storage pool in TL-D810TC4, supporting RAID migration and disk replacement. Enjoy the same management experience as your NAS’s main storage pool.

Note: TL-D810TC4 can only be used as an independent storage pool or disk area. It cannot be merged with the NAS’s main storage pool or disk area, and system applications can only be installed on the NAS itself.

2. Set as External Disk Mode

Alternatively, use it as an independent storage box (each hard drive is seen as an independent space), providing additional storage space for quick transfer or short-term backup needs, improving efficiency and data security.

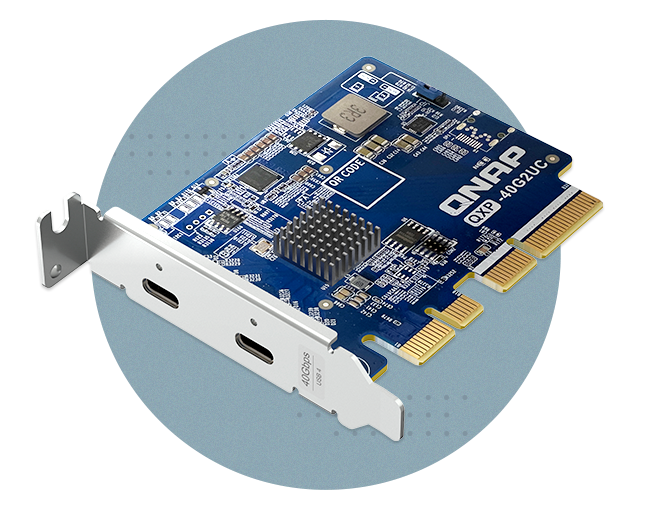

Dual USB 4 Expansion Card for Greater Flexibility in NAS Expansion

Install the QXP-40G2UC expansion card on your NAS and instantly add two USB 4 Type-C ports with speeds up to 40Gbps, upgrading your storage performance across the board.

Explore Now
text-left-img-right

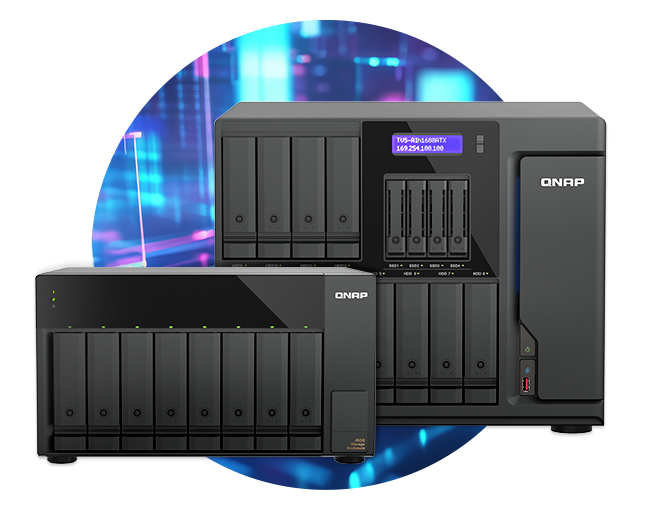

Expand Your NAS, Flexible and Efficient

USB 4 JBOD can be directly connected to a QNAP NAS TVS-AIh1688ATX with the USB 4 port without complicated network setup—just plug and play to expand storage capacity. It supports high-speed transfers and hot-swapping, making it an ideal choice for enhancing NAS storage flexibility.

text-right-img-left

Expand for Your Windows®/Mac Computers

Build a Large-Capacity Dedicated Database

Whether it’s large files, 4K videos, or work materials, you can easily store them, freeing up space on your local storage.

  • 1. Software RAID Setup:

    Use the built-in tools in your system (e.g., Windows® Storage Spaces) to combine multiple hard drives into a software RAID, improving data security or read/write performance as needed.

    Learn More

    Note: Due to platform incompatibilities, once configured in software RAID mode, the storage cannot be used across different platforms.

  • 2. Single Disk Mode:

    Each hard drive can be read and written independently, like a large multi-bay hard drive system. When one disk is full, you can remove it and replace it with a new one. You can also reinsert a disk with existing data to access its contents, ideal for large data batch storage and archiving.

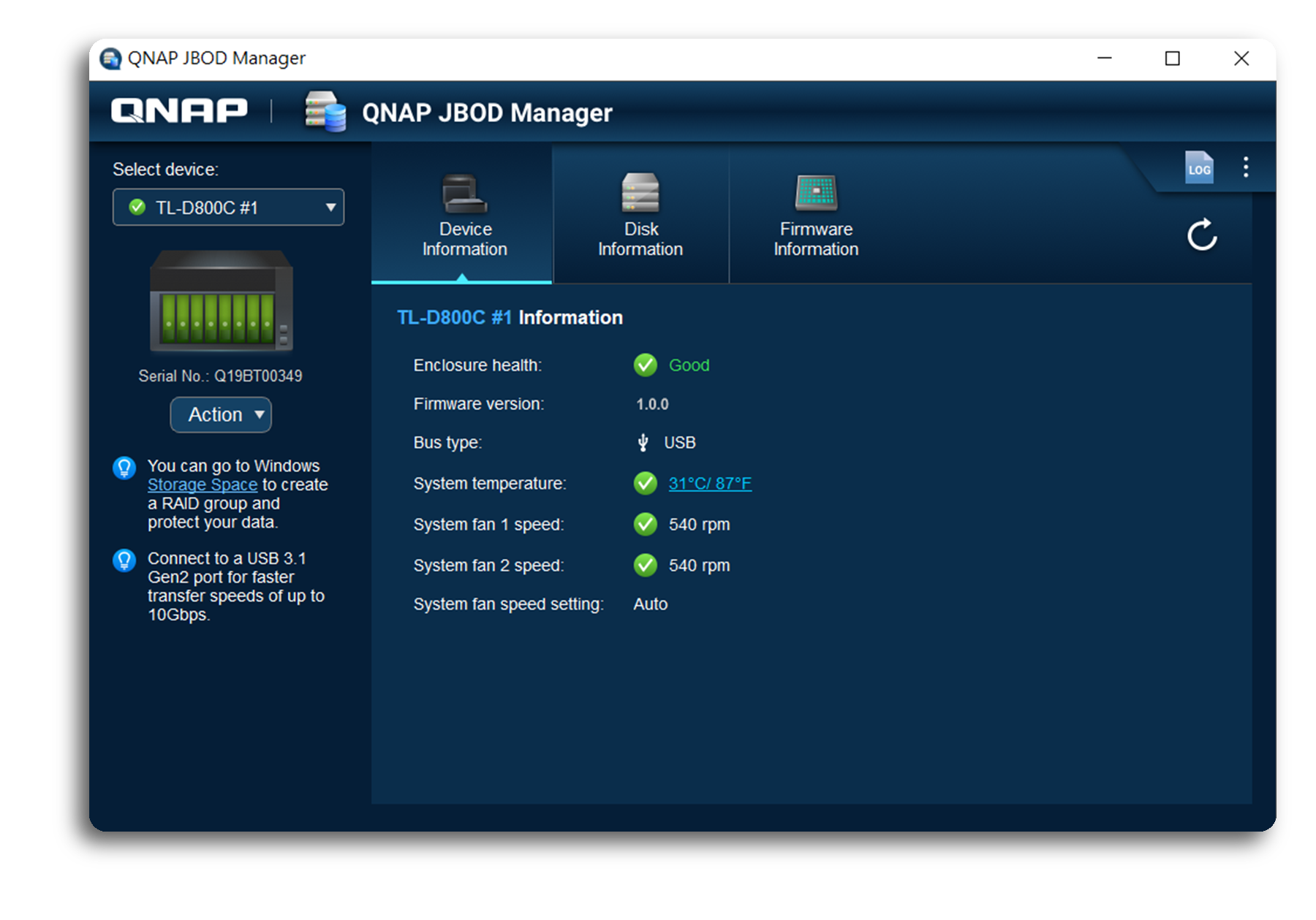

Monitor JBOD Status Anytime

Windows® PC users can monitor or set up the system and disk status of TL-D810TC4 via QNAP JBOD Manager, including checking device health, fan speed. The system will record all events within the device, and when an abnormal condition occurs, real-time desktop notifications will be provided to keep you informed.

1. Mac users can manage TL-D810TC4 using the latest JBOD Manager v1.3.
2. Windows users can easily manage TL-D810TC4 with the latest JBOD Manager v1.3.
3. Linux users can easily manage TL-D810TC4 with the latest JBOD Manager v1.1.

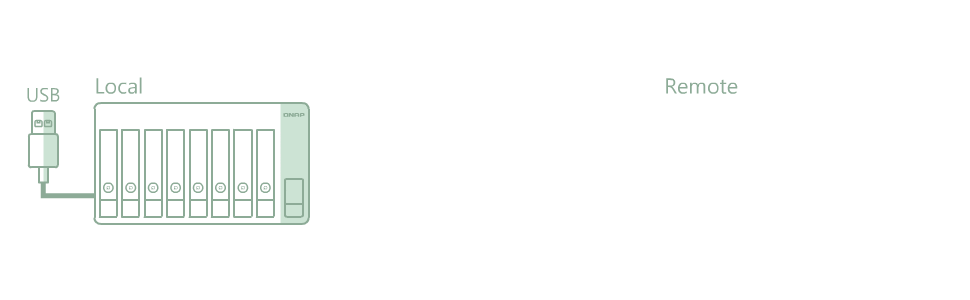

Too Time-Consuming for Remote Transfers? Just Ship the Entire Data!

When transferring large files or a single large dataset, network transfers can be time-consuming and bandwidth-heavy, often taking days to complete and impacting productivity. With TL-D810TC4, you can perform remote data migration by simply installing the hard drives, setting up a software RAID, and then shipping the entire unit to the target location. Once connected to a NAS or PC, it’s plug-and-play, enabling rapid large-file migration.

Note: If a software RAID is configured, TL-D810TC4 data migration only supports use on another host with the same system.

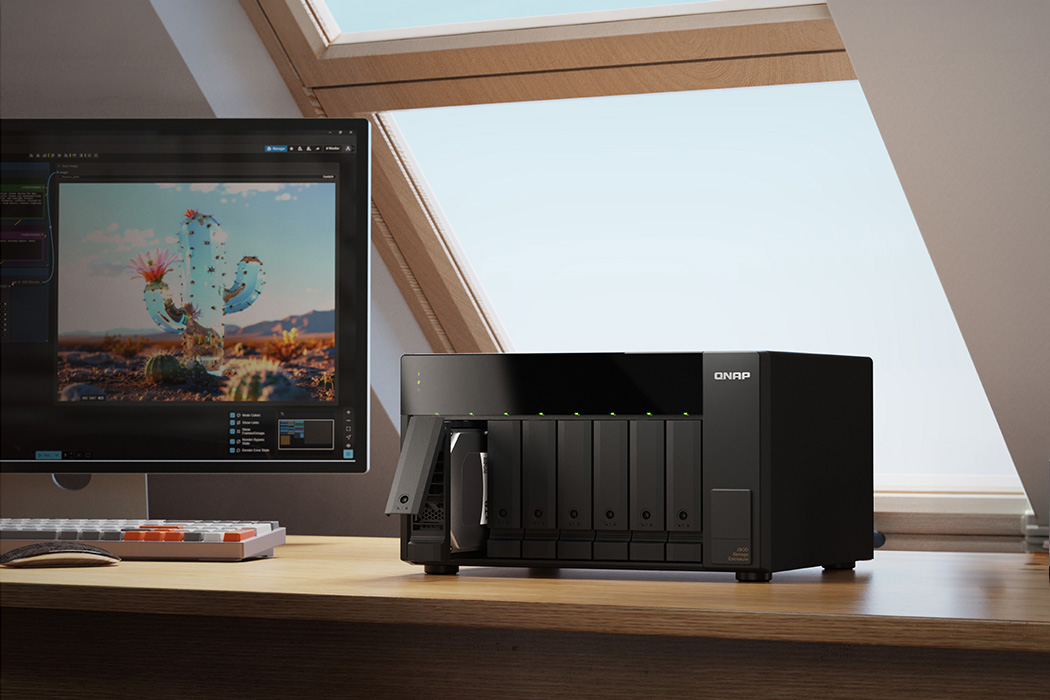

Desktop High-Speed Helper for Creators

The compact desktop design of TL-D810TC4, combined with excellent ventilation structure and fan cooling, is ideal for long-term desktop operation, maintaining high efficiency and stable performance continuously.

Extend hardware warranty up to 5 years

The TL-D810TC4 is backed by a 2-year warranty at no additional cost.
You can also purchase a warranty extension that extends your warranty coverage up to 5 years.
