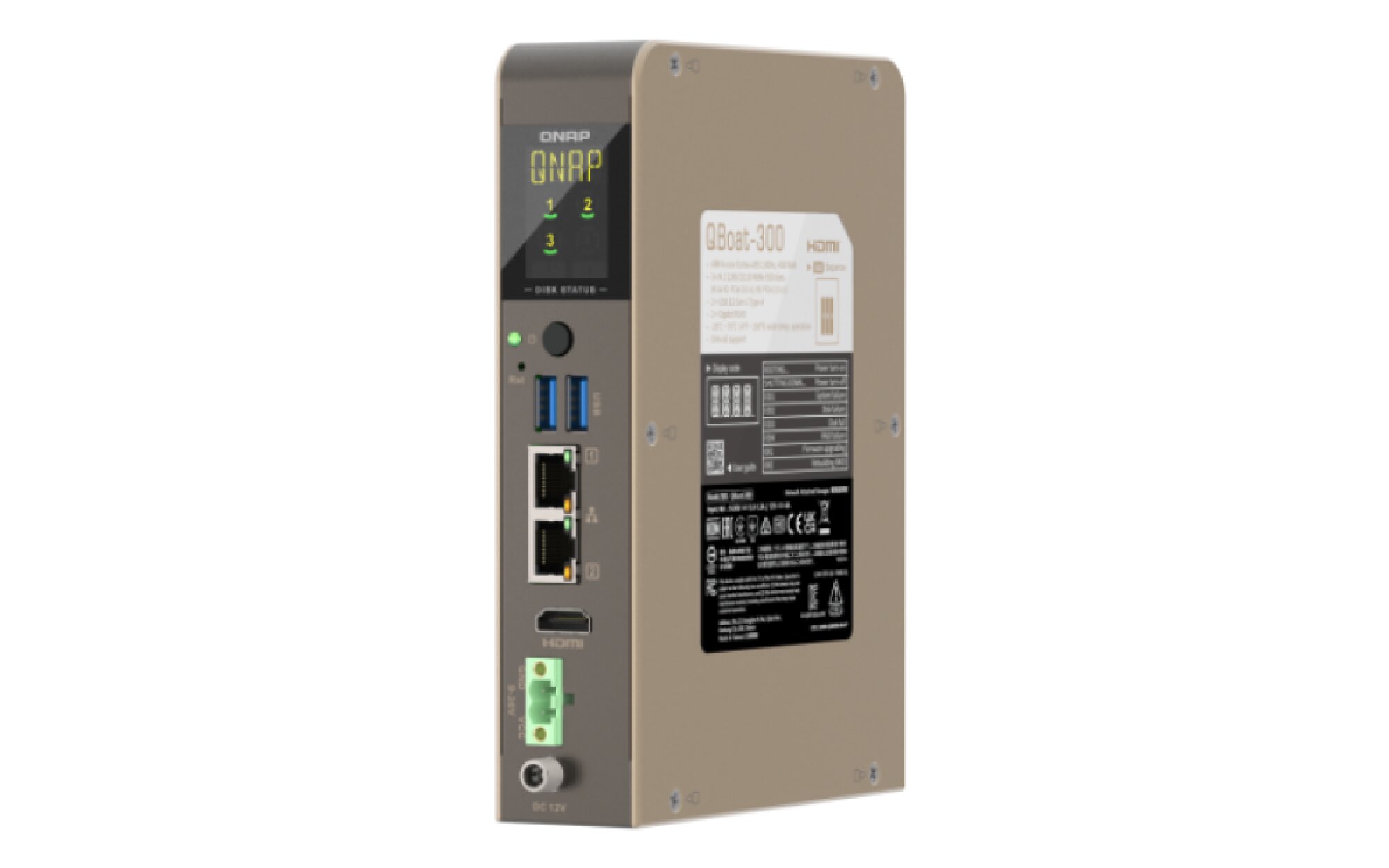

QNAP QBoat-300

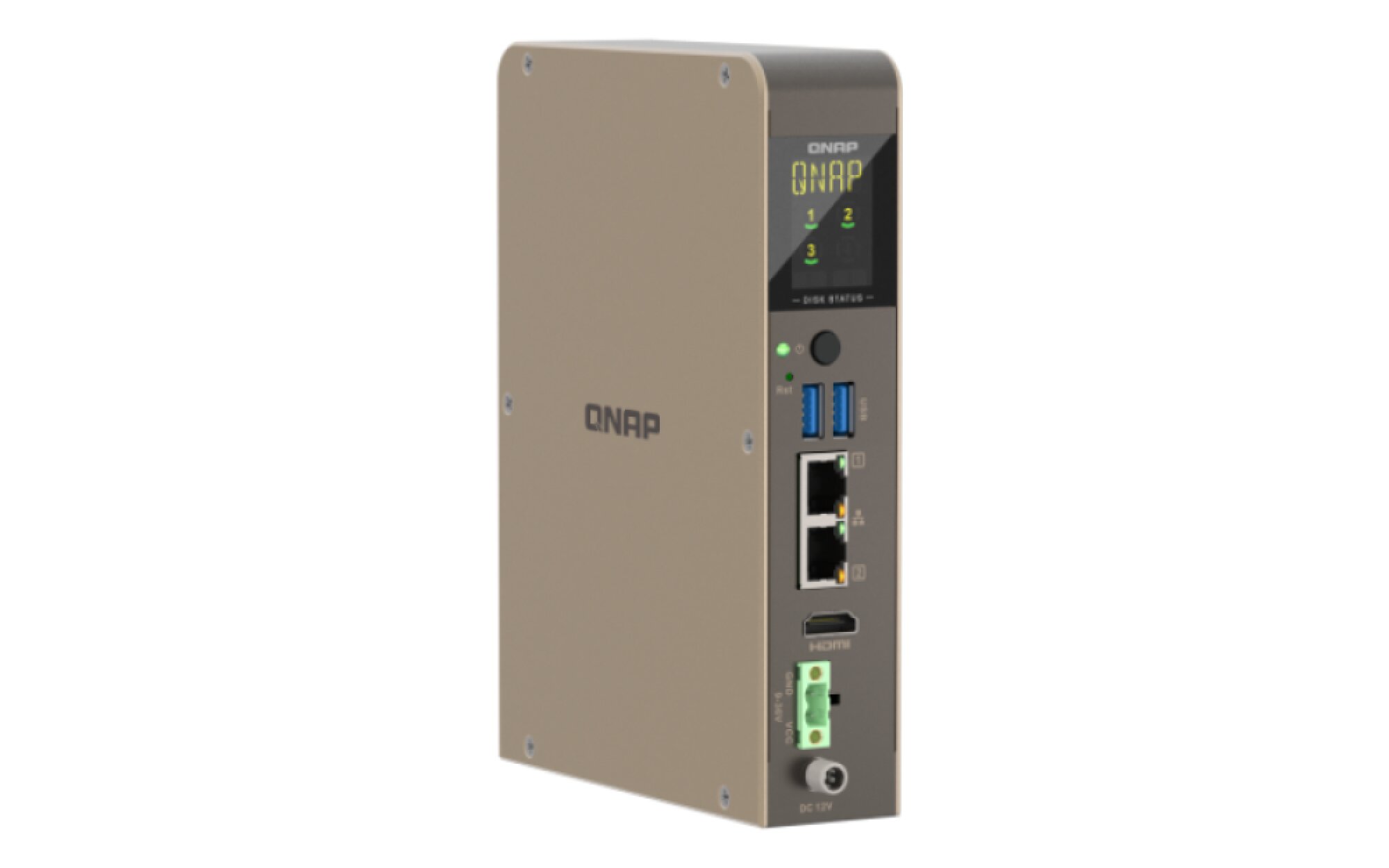

QNAP QBoat-300 - obrazek 2

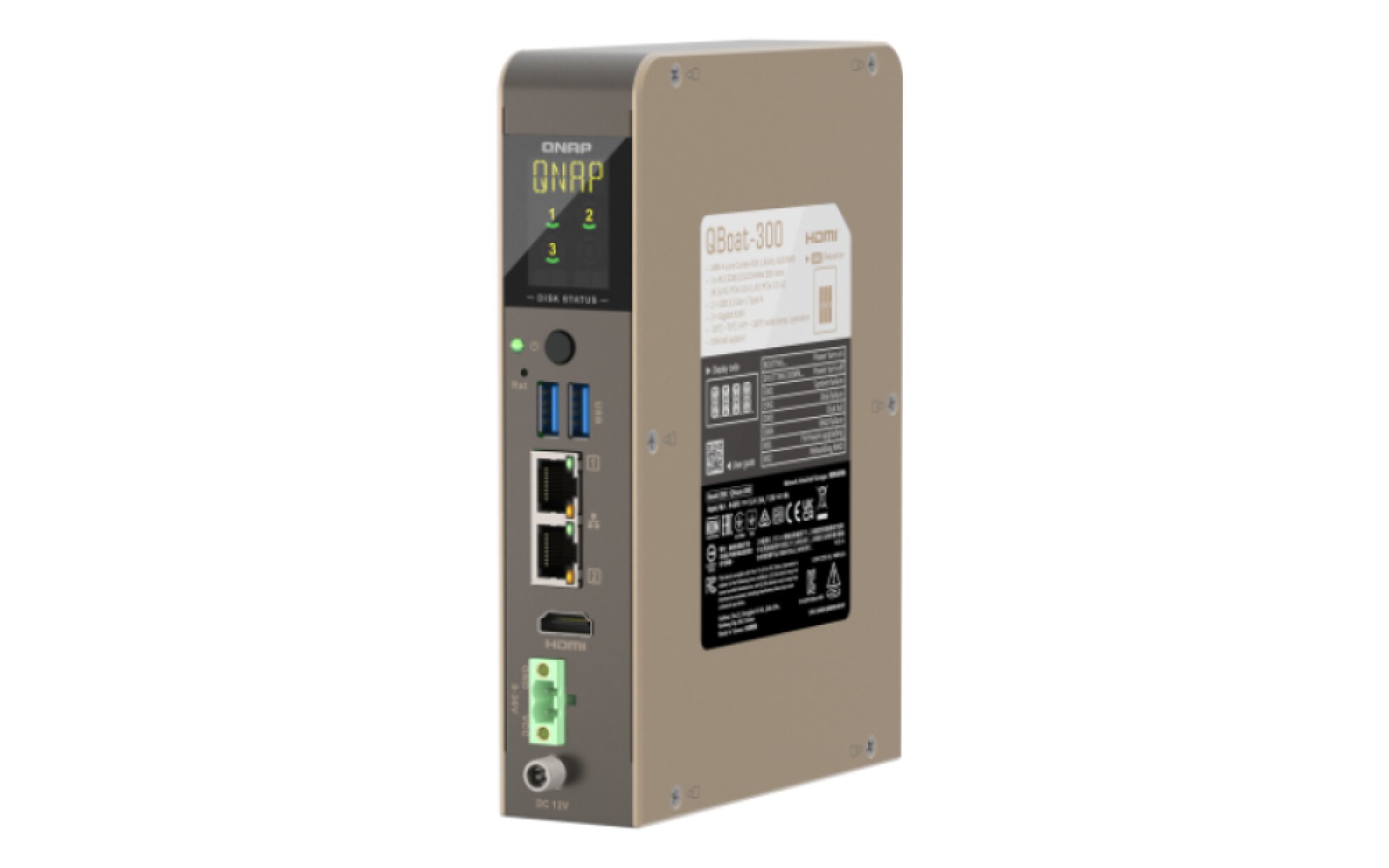

QNAP QBoat-300 - obrazek 3
QNAP QBoat-300 - obrazek 4
QNAP QBoat-300 - obrazek 5

QNAP QBoat-300

2999,00 zł

QBoat-300

  • CPU: Industrial-grade wide-temperature ARM 4-core Cortex-A55, up to 1.8GHz
  • CPU Architecture: 64-bit ARM
  • Graphic Processors: Mali-G52
  • System Memory: 4 GB on board (non-expandable)
  • Maximum Memory: 4 GB on board (non-expandable)
  • Flash Memory: 4 GB (Dual boot OS protection)
  • M.2 Slot: 3x M.2 22110/2280 PCIe slots
  • Gwarancja: 2 lata

sprawdź dostępność

SKU: QBoat-300 Kategoria: Znacznik: Marka:

Opis na stronie producenta

CPU Industrial-grade wide-temperature ARM 4-core Cortex-A55, up to 1.8GHz
CPU Architecture 64-bit ARM
Graphic Processors Mali-G52
Floating Point Unit Tak
Encryption Engine Tak
Hardware-accelerated Transcoding Tak
Neural Processing Unit (NPU) Tak
System Memory 4 GB on board (non-expandable)

Note: Reserves some RAM for use as shared graphics memory.
Maximum Memory 4 GB on board (non-expandable)
Flash Memory 4 GB (Dual boot OS protection)
M.2 Slot 3x M.2 22110/2280 PCIe slots

M.2 NVMe SSDs (2x PCIe 3.0 x1, 1x PCIe 2.0 x1)
Gigabit Ethernet Port (RJ45) 2
Wake on LAN (WOL) Tak
Jumbo Frame Tak
USB 3.2 Gen 1 port 2
Form Factor DIN-rail NAS
LCD Display/ Button LCD
Buttons Power, Reset
Dimensions (HxWxD) 184 × 40 × 132 mm

Dimensions do not include foot pad (foot pad may be up to 30mm / 1.18 inches high depending on model)
Weight (Net) 0.87 kg
Weight (Gross) 1.7 kg
Operating Temperature -20 – 70°C (-4°F – 158°F)
Storage Temperature -20 – 70°C (-4°F – 158°F)
Relative Humidity 5-95% RH non-condensing, wet bulb: 27˚C (80.6˚F)
Power Supply Unit Minimum 48W adapter (12VDC), 100-240VAC
Power Consumption: Operating Mode, Typical 12.02 W

3x M.2 2TB SSD
Fan Fanless
System Warning Buzzer
Kensington Security Slot N/A
Standard Warranty 2
Max. Number of Concurrent Connections (CIFS) – with Max. Memory 200
QBoat-300
Industrial-Grade Edge Data Hub Built for 24/7 Production Lines
QBoat-300 is a NAS designed for Industry 4.0 edge computing. Equipped with a quad-core industrial-grade wide-temperature processor and passive cooling mechanism, along with 3 M.2 NVMe SSD slots, its fanless design ensures stable high-performance data access even in extreme environments. Provides a flexible buffer hub for MES systems.

Wide-Temperature Processor

Equipped with an industrial-grade wide-temperature processor, designed for extreme temperature environments and long-term stable operation.

Passive Cooling Mechanism

All-metal fanless design effectively reduces dust accumulation and prevents mechanical failure, perfectly suited for harsh industrial environments.

DIN-Rail Industrial Design

Standard DIN-Rail mounting interface with vertical installation design that maximizes space efficiency in automation control cabinets.

High-Performance Storage

Built-in 3 M.2 NVMe SSD slots provide powerful caching capabilities, breaking through edge data processing bottlenecks.

Production Continuity

Serves as a critical network relay layer and buffer, ensuring uninterrupted production line operation during network fluctuations or peak loads.

Wide-Voltage Power Input

Supports 9-36V DC Terminal Block with industrial-grade power protection, with optional wide-voltage transformer.

Rugged Hardware for Your Industry 4.0 Edge Hub

Explore the powerful industrial-grade design details of QBoat-300, built for demanding edge computing environments.

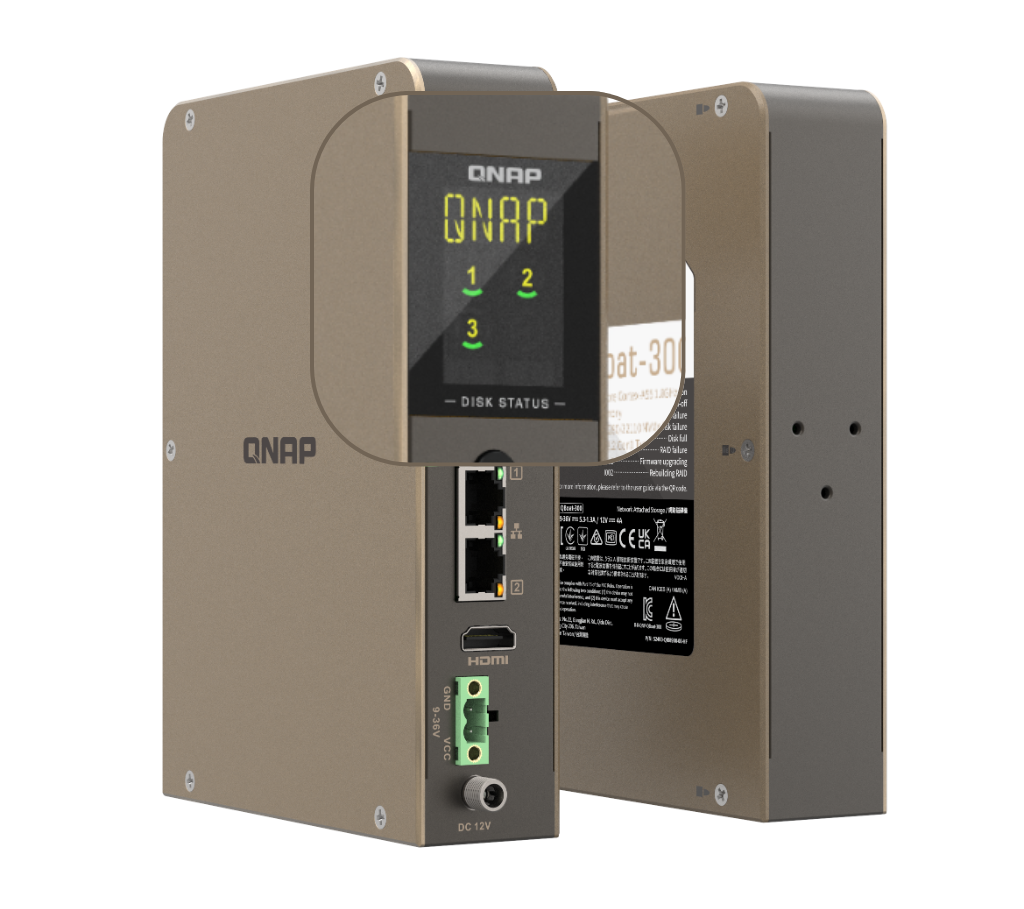

Front LCD Panel

Real-time system status display including disk status and system alerts, enabling at-a-glance on-site maintenance.

Front LCD Panel

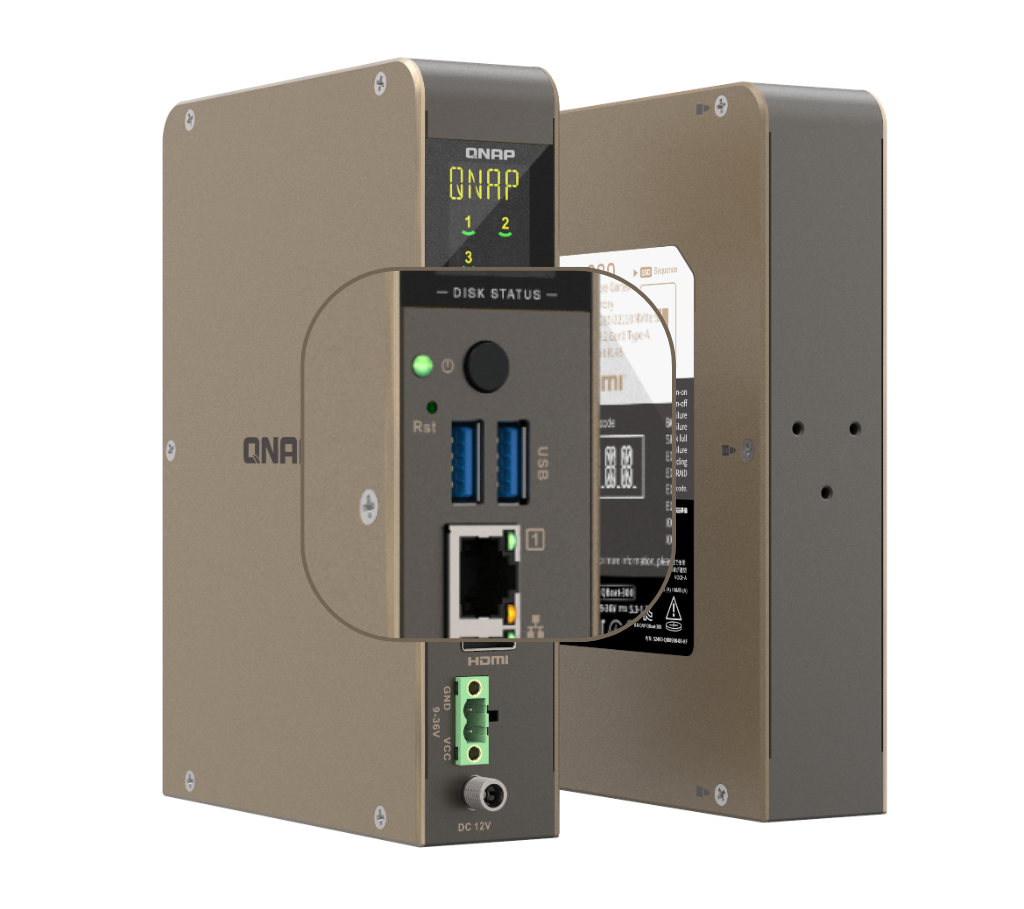

USB 3.2 Ports

Features 2 USB 3.2 Gen 1 high-speed expansion interfaces for flexible connection of industrial cameras or various sensors.

USB 3.2 Ports

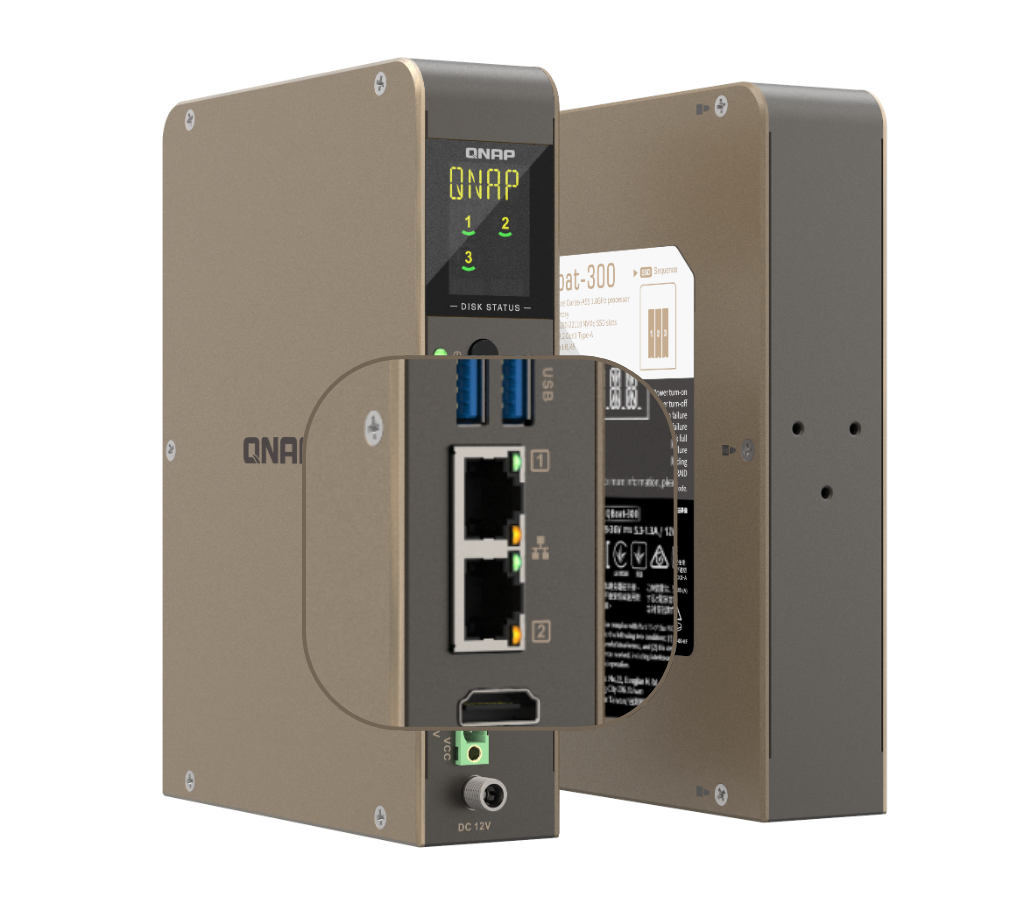

Dual Gigabit LAN Ports

Supports dual-network redundancy and link aggregation, ensuring stable uninterrupted data transmission on the production line.

Dual Gigabit LAN Ports

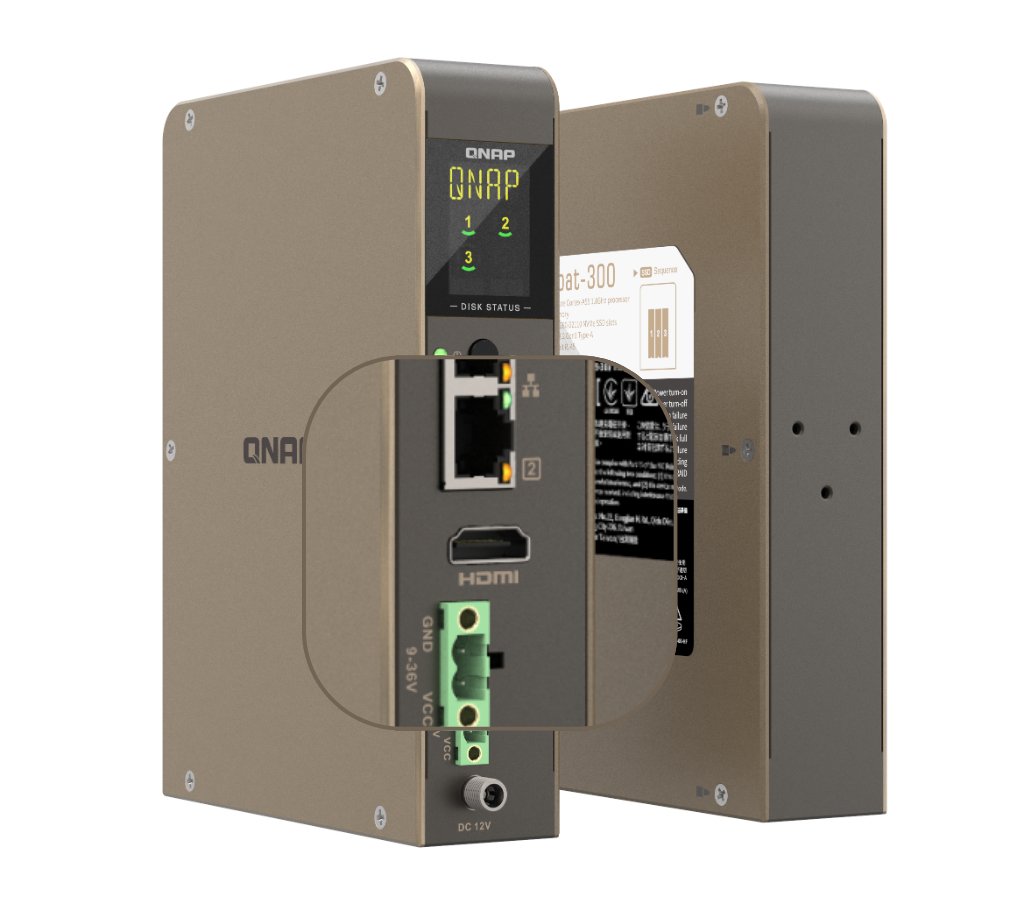

HDMI™ 4K Output

Supports 4K video output and hardware video decoding, ideal for real-time AOI defect detection monitoring display.

HDMI™ 4K Output

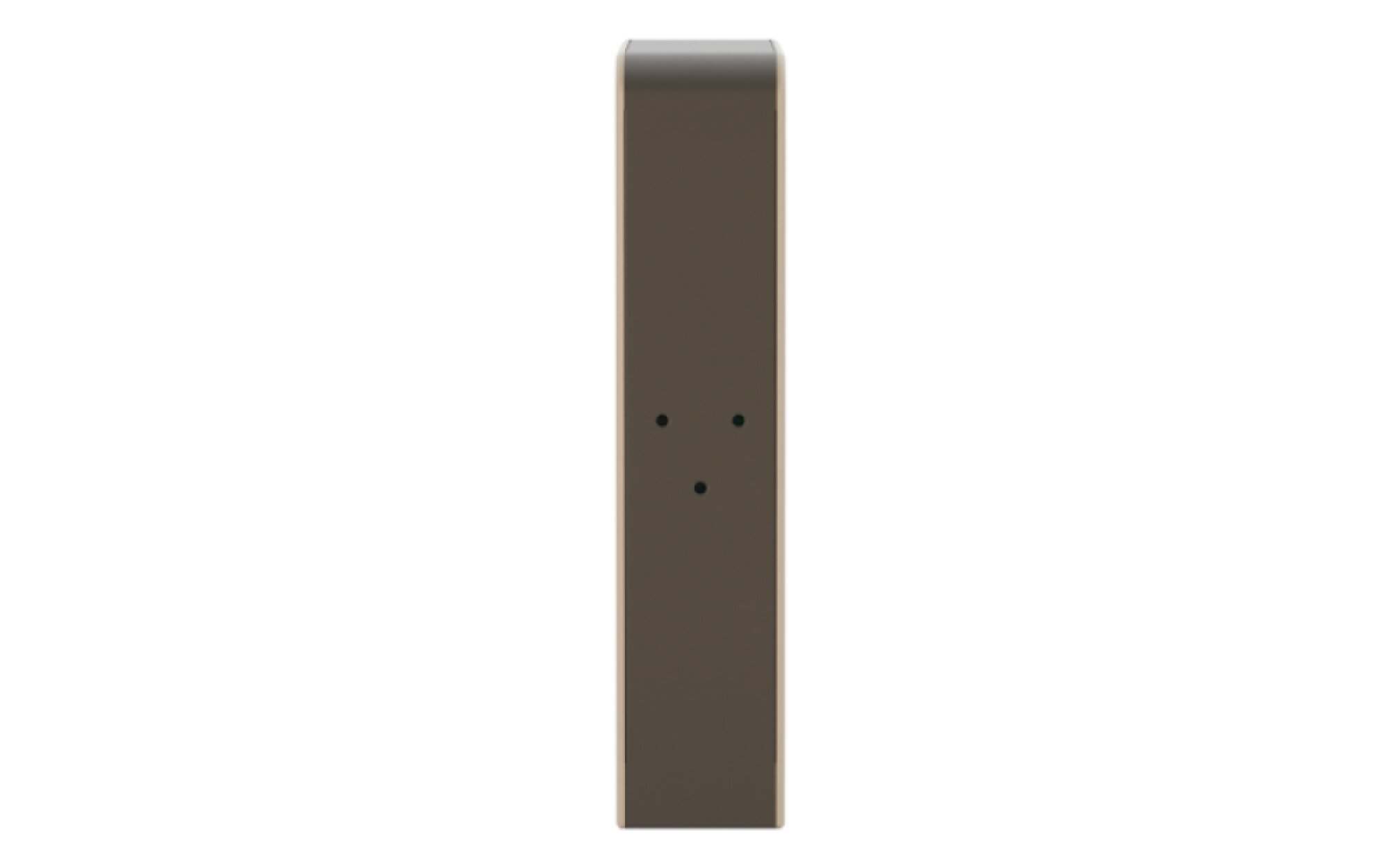

DIN-Rail Mount Bracket

Supports standard 35mm industrial DIN-Rail mounting with vertical installation design, significantly saving valuable space inside control cabinets.

DIN-Rail Mount Bracket

Data Visualization: Intuitive On-Site Monitoring from Edge to Floor

QBoat-300’s front 4-digit display and dedicated SSD indicators present real-time device status directly on the unit — no system login required.

Zero-Error On-Site Node Identification
Predictive System Diagnostics & Alerts
Critical Storage Health Monitoring

Pushing Environmental Limits: Industrial Wide-Temperature Operation from -20°C to 70°C

Unlike ordinary commercial equipment, QBoat-300 is engineered for harsh environments with an outstanding thermal balance design, enabling stable operation across a temperature range of -20°C to 70°C (-4°F ~ 158°F). Whether deployed at outdoor monitoring stations in cold regions or in high-temperature sealed industrial control cabinets, edge computing tasks will never be interrupted.

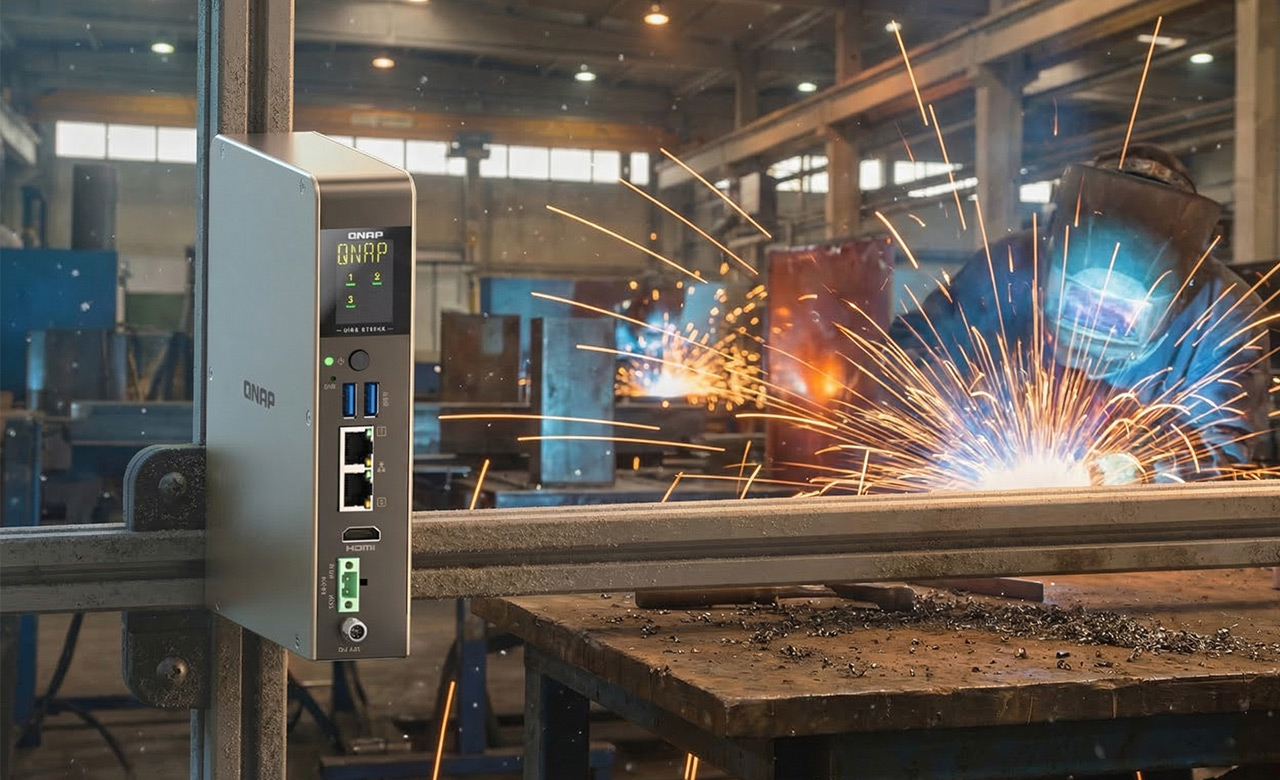

Passive Cooling Design: Completely Eliminates Dust and Noise

QBoat-300 uses an all-aluminum alloy housing for heat conduction. The fanless design not only achieves complete silence but also prevents metal dust, oil mist, or corrosive gases found in factory environments from being drawn into the unit.No moving parts, zero mechanical wear, maximizing long-term reliabilityPrevents dust, oil mist, and corrosive gases from entering the unitSignificantly reduces hardware damage risk, ideal for long-term deployment in harsh production line environmentsMinimal maintenance required, reducing TCO (Total Cost of Ownership)

Passive Cooling Design: Completely Eliminates Dust and Noise

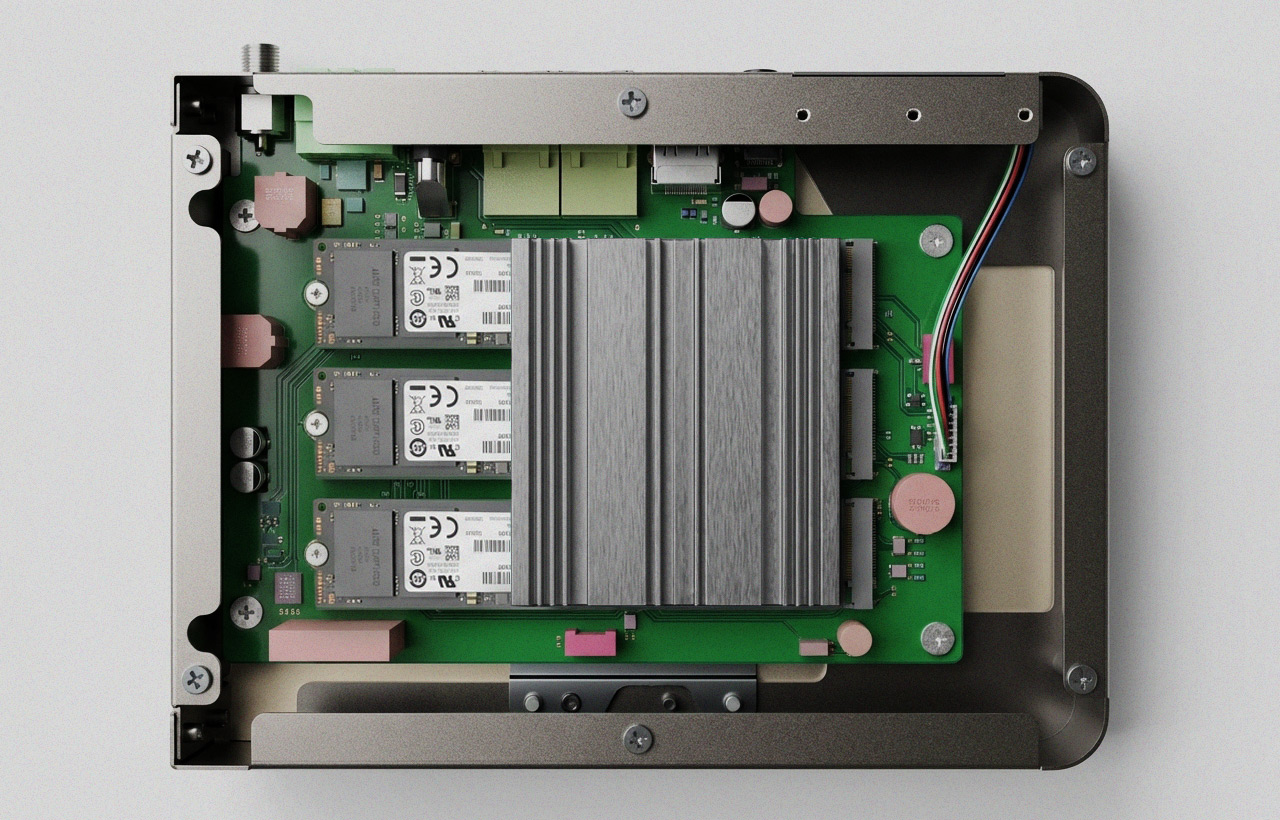

Ultra-Fast Cache & Buffer: 3 M.2 NVMe SSD Slots

Built-in 3 M.2 slots support PCIe Gen 3 high-speed transfer and 22110/2280 form factors. As the data hub for smart factories, it provides real-time image caching for high-throughput applications such as AOI visual inspection.3 x M.2 2280/22110 NVMe slots (2 x PCIe Gen 3 x1, 1 x PCIe Gen 2 x1)High-speed cache for AOI image data and sensor streamsEnsures data receives the most efficient preprocessing before being sent back to the cloudBarebone configuration supports flexible SSD deployment

Ultra-Fast Cache & Buffer: 3 M.2 NVMe SSD Slots

NVMe Acceleration

High-Performance Edge Computing with SSD Cache Acceleration

QBoat-300 features a high-performance quad-core processor with 4 GB memory and hardware encryption engine support. With 3 built-in M.2 NVMe SSD slots, it is recommended to pair with industrial-grade wide-temperature SSDs to deliver all-flash high-speed stable access performance, significantly boosting IOPS to meet intensive access application demands.

Transfer Performance
Read Write
Windows File Transfer (2 x 1 GbE) 181 MB/s 181 MB/s
Random Access Performance (2 x 1 GbE, iSCSI RR/RW-4K) 36,782 IOPS 24,108 IOPS
Test Environment
NAS: QBoat-300
CPU: Quad-core ARM Cortex-A55 (1.8 GHz)
RAM: 4 GB
OS: QTS 5.2.8
Disk: 3 x Exascend 960GB PCIe SSD (RAID 5)
Network: Built-in 1GbE x 2
Client PC
Windows Server 2019 (Performance Mode), Intel Xeon W1250 3.3GHz, RAM: 32GB
Tested at QNAP laboratory. Results may vary depending on actual environment.

Smart Factory

Ideal Use Case: Smart Factory MES Data Buffering

QBoat-300 serves as a buffer hub for MES (Manufacturing Execution Systems). Through tight integration with front-end devices, it can process and temporarily store production data in real time.

End Devices
AOI / PLC
100% Raw Data
→
Filter 90% Redundant Data
Edge Computing
QBoat-300
High-Speed Cache + Filtering
→
Central Server / Cloud
Transfer Only 10% Essential Data
Advantage 1: On-Site Data Decision Making

Integrates AOI, PLC, and sensor devices to uniformly collect and process production data in real time. Only “critical events” and “necessary information” are sent to backend systems, effectively reducing network, MES, and cloud overhead.

Advantage 2: Buffer On-Site, Then Securely Transfer

Prevents sudden traffic spikes from disrupting production operations. Large volumes of images and real-time data are first buffered on the production line, then automatically synchronized to headquarters or the cloud during off-peak hours, ensuring complete production records are preserved.

Advantage 3: Stability Meets Flexibility

With industrial-grade wide-temperature chips and 3 M.2 SSD slots, it provides powerful data caching capabilities, guaranteeing continuous data flow even on the busiest Industry 4.0 production lines.

Explore the Practical Integration Capabilities of QBoat-300

QBoat-300 seamlessly integrates into various industrial environments, from AOI optical inspection to smart logistics and control cabinet deployment, comprehensively meeting production line needs.

AOI Automated Optical Inspection
Smart Logistics & Warehouse Management
Automation Control Cabinet Integration

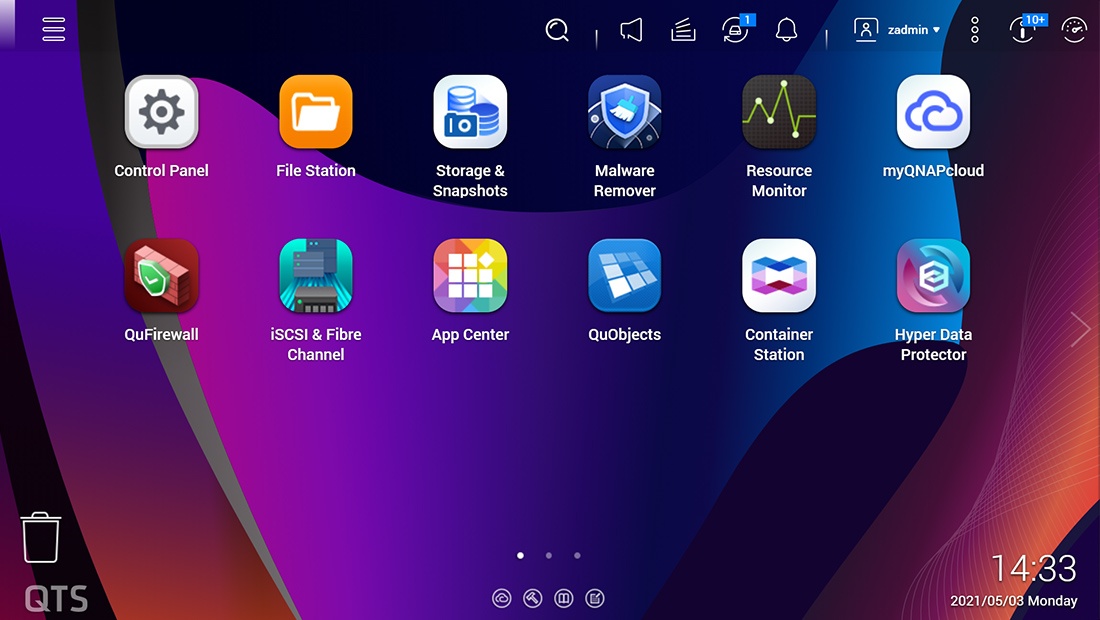

Powered by Professional QTS OS: Making Industrial Computing Simpler

QBoat-300 is more than hardware — it runs the QTS operating system optimized for data access and management. Eliminates the complexity of building Linux environments from scratch, providing an intuitive graphical management interface so you can focus on developing production line applications.

1

Remotely monitor hardware status, network traffic, and storage space via web browser. Even when deployed deep inside factory control cabinets, you can always stay informed of operational status.

2

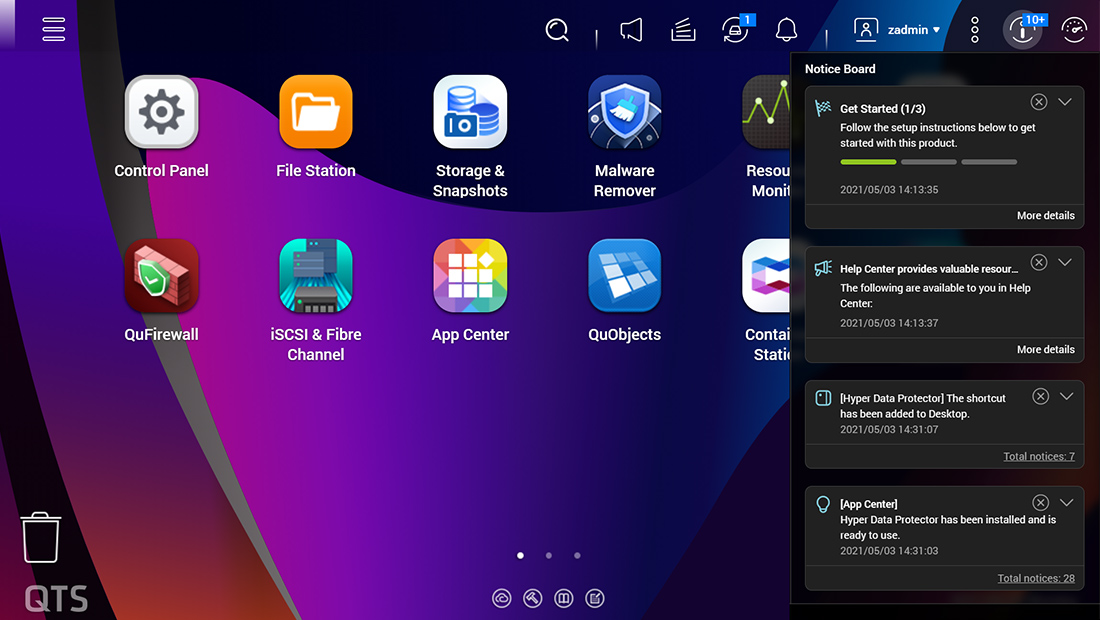

Built-in firewall, VPN support, and multi-level permission settings, combined with anti-malware scanning, provide comprehensive protection for critical production data.

3

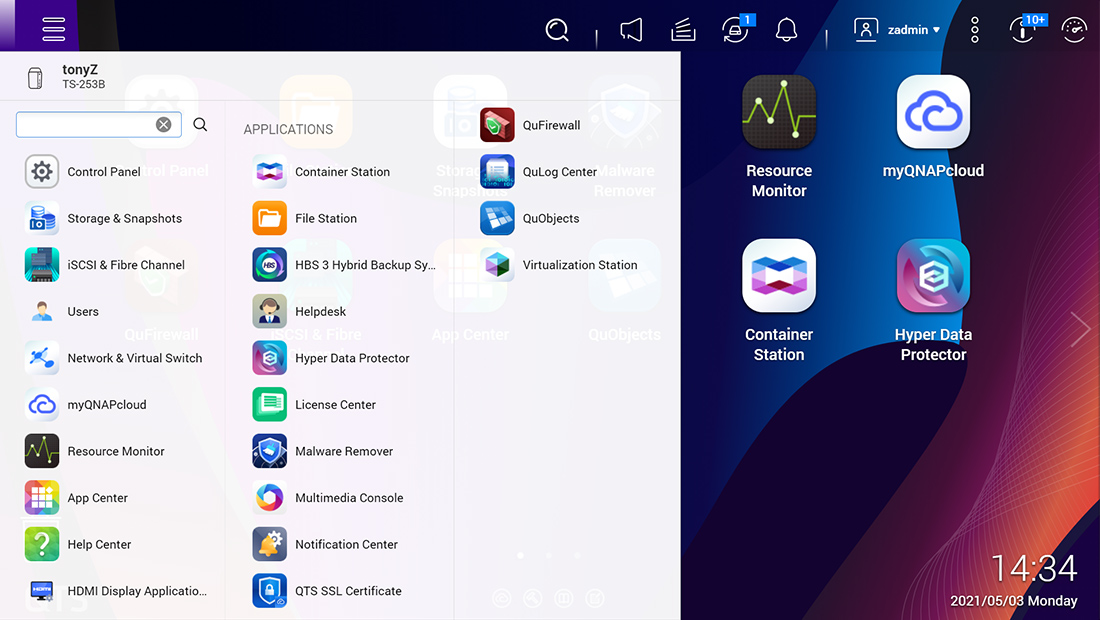

Install various industrial IoT, data synchronization, and backup packages with one click from the App Center. Transform QBoat-300 from a simple gateway into a powerful data processing hub.

Easy ManagementHigh SecurityRich App Ecosystem

Efficient Edge Computing and Containerization Technology

With high-performance M.2 NVMe SSD storage, QBoat-300 serves as an efficient edge AI data outpost. Deploy lightweight data cleaning and filtering services within containers to transform raw on-site data into structured data, providing precise materials for backend AI analysis and achieving seamless collaboration between edge and cloud.

Container Station

Container Station

Exclusively supports Docker®, LXD, and Kata Containers lightweight technologies. Download thousands of applications from the Docker Hub® online marketplace, easily import/export software containers and configure access permissions, enjoying a rich ecosystem of microservice applications.
