Synology RS826+

Synology RS826+

RS826+

  • Procesor: AMD Ryzen V1500B
  • Pamięć systemowa: 4 GB DDR4 ECC SODIMM
  • Łączna liczba gniazd pamięci: 2
  • Maksymalna pojemność pamięci: 32 GB (16 GB × 2)
  • Wnęka dysków: 4 × 3.5″ SATA HDD or 2.5″ SATA SSD
  • Rozszerzenia PCIe: 1 × Gen3 x8 slot (x4 link)
  • Gwarancja: 3 lata
SKU: RS826+ Kategorie: , Znacznik: Marka:

Opis na stronie producenta

Hardware Specifications
RS826RP+
RS826+
CPU CPU Model AMD Ryzen V1500B AMD Ryzen V1500B
CPU Quantity 1 1
CPU Cores 4 4
CPU Threads 8 8
CPU Architecture 64-bit 64-bit
CPU Frequency 2.2 GHz 2.2 GHz
Hardware Encryption Engine Yes Yes
Memory System Memory 4 GB DDR4 ECC SODIMM 4 GB DDR4 ECC SODIMM
Memory Module Pre-installed 4 GB (4 GB × 1) 4 GB (4 GB × 1)
Total Memory Slots 2 2
Maximum Memory Capacity 32 GB (16 GB × 2) 32 GB (16 GB × 2)
Notes
  • Synology may revise pre-installed memory module specifications in response to component lifecycle and supply conditions. All revised components undergo the same rigorous validation to ensure equivalent compatibility, stability, and performance.
  • Please select Synology memory modules for optimum compatibility and reliability. Synology will not provide complete product warranty or technical support if non-Synology memory modules are used for memory expansion.
  • For multi-module memory configurations, all modules must be identical and share the same model number. Check the Product Manual of your Synology product for recommended memory configurations.
Storage Drive Bays (See all supported drives)
4 × 3.5″ SATA HDD or 2.5″ SATA SSD
4 × 3.5″ SATA HDD or 2.5″ SATA SSD
Maximum Drive Bays with Expansion Unit 8 (RX426 × 1) 8 (RX426 × 1)
Hot Swappable Drive* Yes Yes
Notes
  • Compatible drives are mandatory. Please consult our compatibility list before purchasing hard drives. For more details, please refer to this article.
  • SSD cache can be enabled with select compatible SSD. See the compatibility list for model-specific support and details. SSDs are sold separately.
External Ports RJ-45 1GbE LAN Port 4 4
USB 3.2 Gen 1 Port 2 2
Expansion Port 1 1
Expansion Port Type USB Type-C USB Type-C
PCIe PCIe Expansion 1 × Gen3 x8 slot (x4 link) 1 × Gen3 x8 slot (x4 link)
Appearance Form Factor (RU) 1U 1U
Size (Height × Width × Depth) 44 mm × 480 mm × 518.6 mm 44 mm × 480 mm × 492.6 mm
Weight 8.0 kg 6.4 kg
Rack Installation Support* 4-post 19″ rack (Synology Rail Kit – RKM114/RKS-02) 4-post 19″ rack (Synology Rail Kit – RKM114/RKS-02)
Notes The rail kit is sold separately
Others System Fan 40 mm × 40 mm × 2 pcs 40 mm × 40 mm × 3 pcs
Fan Speed Mode
  • Full-Speed Mode
  • Cool Mode
  • Quiet Mode
  • Full-Speed Mode
  • Cool Mode
  • Quiet Mode
Power Recovery Yes Yes
Noise Level 41.2 dB(A) 26.5 dB(A)
Scheduled Power On / Off Yes Yes
Wake on LAN / WAN Yes Yes
Power Supply Unit / Adapter 150 watts 150 watts
Redundant Power Supply Yes –
AC Input Power Voltage 100 V to 240 V AC 100 V to 240 V AC
Power Frequency 50/60 Hz, Single Phase 50/60 Hz, Single Phase
Power Consumption 46.07 watts (Access)
20.10 watts (HDD Hibernation)		 37.73 watts (Access)
15.57 watts (HDD Hibernation)
British Thermal Unit 157.10 BTU/hr (Access)
68.54 BTU/hr (HDD Hibernation)		 128.66 BTU/hr (Access)
53.09 BTU/hr (HDD Hibernation)
Notes
  • For more information on how power consumption is measured, refer to this article.
  • Noise testing was conducted with the Synology system fully installed with Synology SATA HDDs and in an idle state. Two G.R.A.S. Type 40AE microphones are placed at a 1 m distance from the front and rear of the device. Background noise: 16.49-17.51 dB(A); Temperature: 24.25-25.75˚C; Humidity: 58.2-61.8%
Temperature Operating Temperature 0°C to 35°C (32°F to 95°F) 0°C to 35°C (32°F to 95°F)
Storage Temperature -20°C to 60°C (-5°F to 140°F) -20°C to 60°C (-5°F to 140°F)
Operating Humidity 8% to 80% RH 8% to 80% RH
Storage Humidity 5% to 95% RH 5% to 95% RH
Certification
  • FCC
  • CE
  • BSMI
  • VCCI
  • RCM
  • UKCA
  • EAC
  • CCC
  • KC
  • BIS
  • UL
  • FCC
  • CE
  • BSMI
  • VCCI
  • RCM
  • UKCA
  • EAC
  • CCC
  • KC
  • BIS
  • UL
Warranty 3-year hardware warranty, extendable to 5 years with EW202 3-year hardware warranty, extendable to 5 years with EW202
Notes
  • The warranty period starts from the purchase date as stated on your purchase receipt. (Learn more)
  • EW201/EW202 is only available in Asia, Africa, and Oceania. Refer to the Extended Warranty website for details on supported countries/regions. (Learn more)
Environment RoHS Compliant RoHS Compliant
Packaging Content
  • Main Unit × 1
  • Accessory Pack × 1
  • AC Power Cord × 2
  • Main Unit × 1
  • Accessory Pack × 1
  • AC Power Cord × 1
Optional Accessories
Notes For multi-module memory configurations, all modules must be identical and share the same model number. Check the Product Manual of your Synology product for recommended memory configurations.
Notes:
  1. Model specifications are subject to change without prior notice.
  2. The figures are based on Synology internal testing. Each performance test is done individually. No other services or applications are processed at the same time.
  3. The actual performance may be lower than lab testing figure due to differences in server configuration, deployment, and the number of active operations.
  4. If usage requirements exceed the specifications above, please contact our regional partners for professional advice.

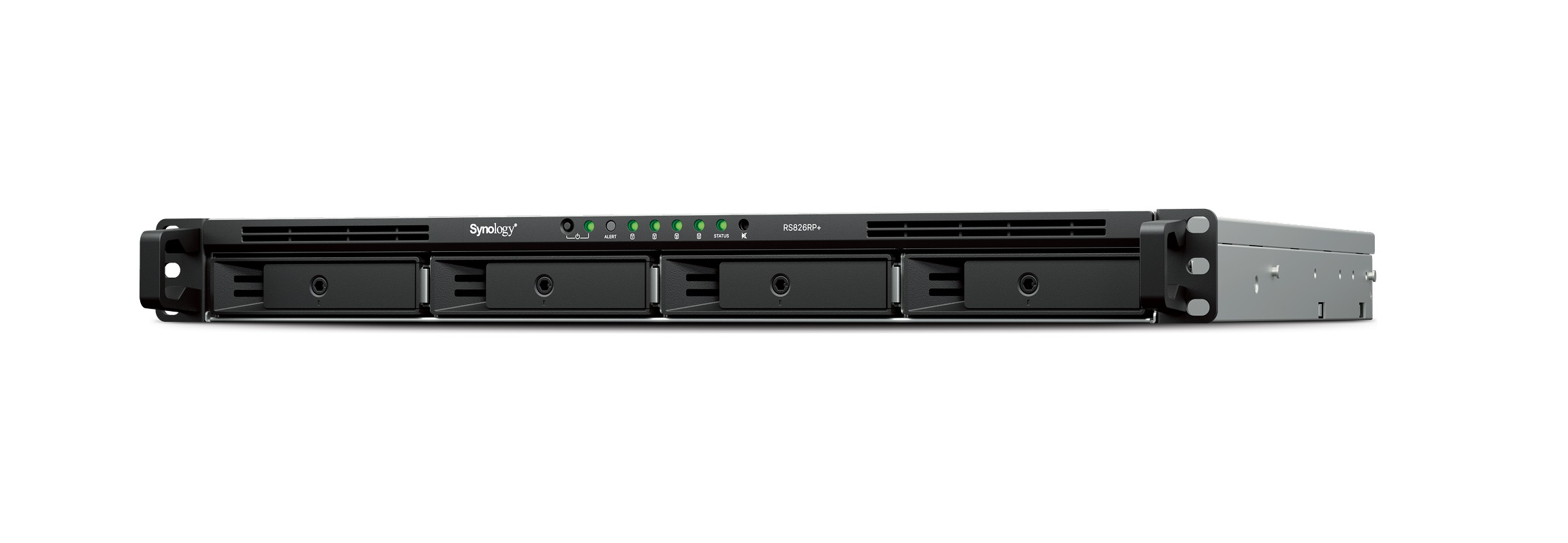

RackStation® RS826+

Compact storage for edge and remote workloads

Scalable 4-bay edge storage solution

Download Datasheet
Fast and reliable
Over 2,000/1,300 MB/s seq. read/write2, built-in 4 x 1GbE, and up to 192 TB raw storage after expansion3,4
Flexible configuration
Add 4 extra drive bays, 10/25GbE ports, and SSD cache5 volumes whenever needed
Versatile business application platform
Back up endpoints, manage up to 40 IP cameras6, or safely sync and share files across sites

Designed for reliability

RS826RP+/RS826+ come with four Gigabit RJ-45 ports which can be bonded with Link Aggregation to enable automatic network failover and load balancing.

Two RS826RP+/RS826+ units can be paired using Synology High Availability to form a reliable active/passive server cluster, maximizing service uptime.

Furthermore, the RS826RP+ features a redundant power supply for an extra edge in service continuity.

Image showing the redundant power ports of RS826RP+

Accommodates future expansion

The RS826RP+/RS826+ can be flexibly configured to meet evolving needs through increased storage, local SSD cache, or faster networking.

Storage expansion

Expand up to 192 TB of raw storage3 using 8 drive bays with the RX426 expansion unit.

SSD cache5

Flexible networking options7

Automated storage tiering

Synology Tiering automatically moves infrequently accessed data to cost-efficient tiers, balancing performance and capacity to optimize your storage ROI. The RS826RP+/RS826+ can be configured as either hot or cold storage, providing the flexibility to complement your existing hardware and infrastructure.Learn more

Image showing Synology Tiering working with high-performance storage and cost-effective storage

Intuitive storage for on-site and remote teams

Provide secure and convenient cross-platform tile access, sharing, and synchronization across multiple locations.

A secure private cloud solution for enterprise collaboration

A private cloud suite for file sharing

Empower your entire organization with streamlined access, sharing, and syncing of data from any location. Establish granular control over file and folder access and sharing permissions. Maintain a comprehensive audit trail of file activities and track changes to file share settings with detailed records.Learn more

Multi-platform support

Efficient multi-site synchronization

Cloud-powered multi-site syncing

Empower global workflows with high-speed access to data from anywhere in your network. Our hybrid cloud solution caches frequently used files locally for rapid access, while less frequently accessed data is stored in the cloud, reducing your on-site storage requirements.8Learn more

NAS-to-NAS synchronization

Sync to public cloud providers

Comprehensive backup solutions

Endpoint, VM, and NAS/SAN protection

Securely back up Windows, Mac, and Linux endpoints, Synology servers, and VMware® and Hyper-V® virtual machines with Active Backup for Business.Learn more

Microsoft 365 and Google Workspace

Advanced data protection and recovery

Efficient and reliable Synology system backup

Back up entire systems or all data, applications, and configurations to a wide range of storage destinations, including Synology C2 Storage.8 In case of data loss, quickly restore complete systems through bare-metal recovery or retrieve individual files as needed. Advanced features including automated scheduling, granular access controls, end-to-end encryption, data deduplication, and multi-version retention empower you to create the optimal backup plan for your data deployment.Learn more

Tamper-proof protection with immutable snapshots

Collaboration in a secure cloud, assisted by AI

Enhance workplace collaboration with Synology Office Suite. Create, edit, and share documents across teams in real time. Host an on-premises mail server to provide web-based email access while maintaining full data ownership.9 Additionally, stay connected through secure one-on-one chats, public channels, encrypted private channels, and group conversations. AI assistance enhances productivity across apps, with support for leading AI providers via API key integration.Learn more

Work smarter with AI

An all-in-one private cloud productivity AI solution with smart tools and privacy controls.

Learn more
Summarize emails and generate smart replies

Surveillance

Synology Surveillance Station

Protecting your business has never been easier, with centralized management, support for over 20,000 IP camera models, and remote monitoring and playback. Synology’s video management system provides all the tools you need for live monitoring, investigation, management, and backup.10Learn more

Open integration platform for surveillance

Centralized monitoring and management

Monitor and manage your Synology fleet from a central interface, on-prem or in the cloud.

Central Management System
Manage Synology servers from a central console using group policies, task delegation, batch updates, and more.
Learn more
Active Insight
Monitor your global Synology fleet’s performance, backup status, login activity, and more with the power of the cloud.
Learn more
