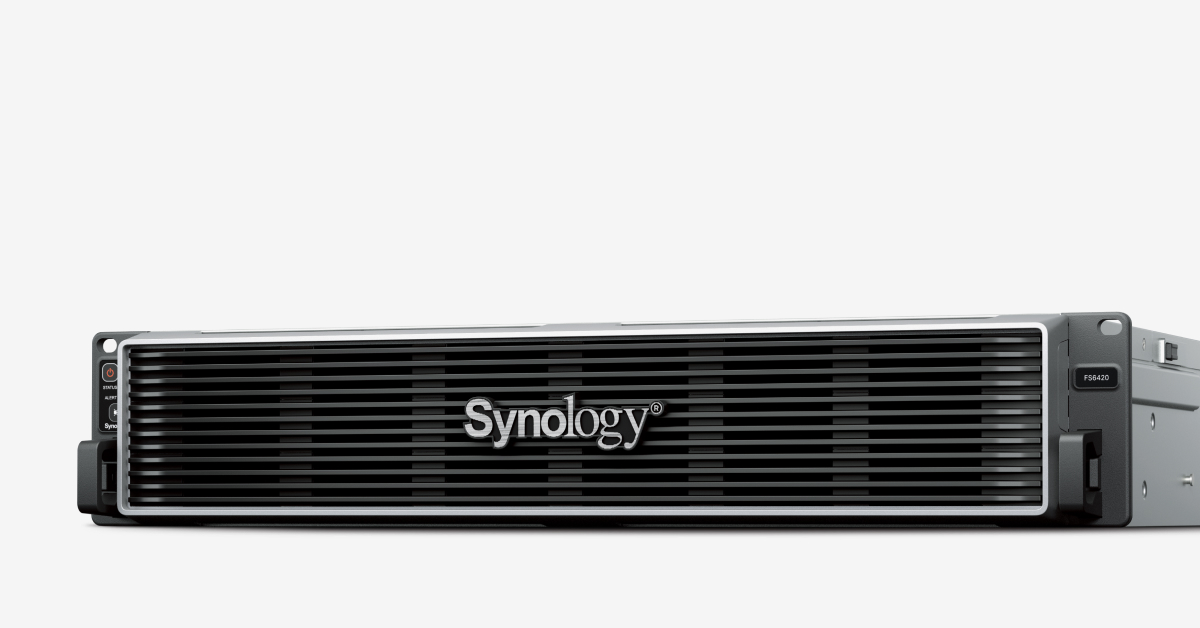

Synology FS6420

Synology FS6420

FS6420

  • Procesor: AMD EPYC 7303
  • Pamięć systemowa: 64 GB DDR4 ECC RDIMM
  • Łączna liczba gniazd pamięci: 16
  • Maksymalna pojemność pamięci: 1024 GB (64 GB × 16)
  • Wnęka dysków: 24 × 2.5″ SATA SSD
  • Rozszerzenia PCIe: 2 × Gen4 x16 slot (x16 link)
  • Gwarancja: 5 lat
SKU: FS6420 Kategorie: , Znacznik: Marka:

Opis na stronie producenta

Hardware Specifications
CPU
 CPU Model AMD EPYC 7303
CPU Quantity 1
CPU Cores 16
CPU Threads 32
CPU Architecture 64-bit
CPU Frequency 2.4 (base) / 3.4 (turbo) GHz
Hardware Encryption Engine Yes
Memory
 System Memory 64 GB DDR4 ECC RDIMM
Memory Module Pre-installed 64 GB (64 GB × 1)
Total Memory Slots 16
Maximum Memory Capacity 1024 GB (64 GB × 16)
Notes
  • Synology may revise pre-installed memory module specifications in response to component lifecycle and supply conditions. All revised components undergo the same rigorous validation to ensure equivalent compatibility, stability, and performance.
  • Please select Synology memory modules for optimum compatibility and reliability. Synology will not provide complete product warranty or technical support if non-Synology memory modules are used for memory expansion.
  • For multi-module memory configurations, all modules must be identical and share the same model number. Check the Product Manual of your Synology product for recommended memory configurations.
Storage
 Drive Bays (See all supported drives)
24 × 2.5″ SATA SSD
Hot Swappable Drive* Yes
Notes
  • Compatible drives are mandatory. Please consult our compatibility list before purchasing hard drives. For more details, please refer to this article.
  • SSD cache can be enabled with select compatible SSD. See the compatibility list for model-specific support and details. SSDs are sold separately.
External Ports
 RJ-45 10GbE LAN Port 2
Out-of-Band Management LAN Port 1
USB 3.2 Gen 1 Port 2
PCIe
 PCIe Expansion 2 × Gen4 x16 slot (x16 link)
Appearance
 Form Factor (RU) 2U
Size (Height × Width × Depth) 88 mm × 482 mm × 724 mm
Weight 15.5 kg
Rack Installation Support* 4-post 19″ rack (Synology Rail Kit – RKS-02)
Notes The rail kit is sold separately
Others
 System Fan 80 mm × 80 mm × 4 pcs
Fan Speed Mode
  • Full-Speed Mode
  • Cool Mode
  • Quiet Mode
Easy Replacement System Fan Yes
Power Recovery Yes
Noise Level 53.0 dB(A)
Scheduled Power On / Off Yes
Wake on LAN / WAN Yes
Power Supply Unit / Adapter 550 watts
Redundant Power Supply Yes
AC Input Power Voltage 100V to 240V AC
Power Frequency 50/60 Hz, Single Phase
Power Consumption 164.74 watts (Access)
British Thermal Unit 561.76 BTU/hr (Access)
Notes
  • For more information on how power consumption is measured, refer to this article.
  • Noise testing was conducted with the Synology system fully installed with Synology SATA SSDs and in an idle state. Two G.R.A.S. type 40AE microphones were placed at a 1 m distance from the front and rear of the device. Background noise: 16.49-17.51 dB(A); Temperature: 24.25-25.75˚C; Humidity: 58.2-61.8%.
Temperature
 Operating Temperature 0°C to 35°C (32°F to 95°F)
Storage Temperature -20°C to 60°C (-5°F to 140°F)
Operating Humidity 8% to 80% RH
Storage Humidity 5% to 95% RH
Certification
  • FCC
  • CE
  • BSMI
  • VCCI
  • RCM
  • UKCA
  • EAC
  • CCC
  • KC
  • BIS
  • UL
Warranty
 5 Years
Notes The warranty period starts from the purchase date as stated on your purchase receipt. (Learn more)
Environment
 RoHS Compliant
Packaging Content
  • Main Unit × 1
  • Accessory Pack × 1
  • C13 to C14 power cord × 2
  • Front Cover × 1
Optional Accessories
Notes For multi-module memory configurations, all modules must be identical and share the same model number. Check the Product Manual of your Synology product for recommended memory configurations.
Notes:
  1. Model specifications are subject to change without prior notice.
  2. The figures are based on Synology internal testing. Each performance test is done individually. No other services or applications are processed at the same time.
  3. The actual performance may be lower than lab testing figure due to differences in server configuration, deployment, and the number of active operations.
  4. If usage requirements exceed the specifications above, please contact our regional partners for professional advice.

FlashStation FS6420

High-performance all-flash storage for demanding, high-throughput workloads.

Harness all-flash storage to speed up business workflows

Download Datasheet
Fast and reliable
Over 257,000 random write IOPS2, built-in dual-port 10GbE, and up to 168 TB raw storage3,4
Flexible configuration
Supports additional 10/25GbE ports, Fibre Channel adapters5, and up to 1,024 GB of memory
Versatile business application platform
Enhance productivity with collaboration tools and run containerized or virtualized workloads

Accelerate your essential workloads

FS6420 delivers the performance and reliability you need to accelerate your demanding workloads and data services.

Performance that drives productivity

iSCSI: Random IOPS with SSD

Read: 929K+ IOPS

Write: 257K+ IOPS

Built for high reliability

Out-of-band (OOB) management

Simplify troubleshooting by managing powered-down devices remotely and accessing critical logs through a dedicated interface.

Redundant power

Redundant power supplies ensure maximum server uptime by preventing single-point power failures.

Failover cluster

Maximize service continuity by pairing two identical units into a Synology High Availability cluster, ensuring automated, minute-level failover in the event of hardware failure.

Synology High Availability

Flexible, high-performance network connectivity

The FS6420 supports a wide range of networking interfaces, protocols, and configurations for seamless integration into enterprise environments.

Built-in fast connectivity

Two 10GbE RJ-45 ports provide excellent networking performance right out of the box.

Flexible networking options5

Improve I/O performance or add redundancy with optional 10GbE or 25GbE SFP+/SFP28 and 10GbE Ethernet NICs, or Fibre Channel HBAs.

Failover and network balancing

Bond multiple network interfaces with Link aggregation to enable automatic network failover and load balancing.

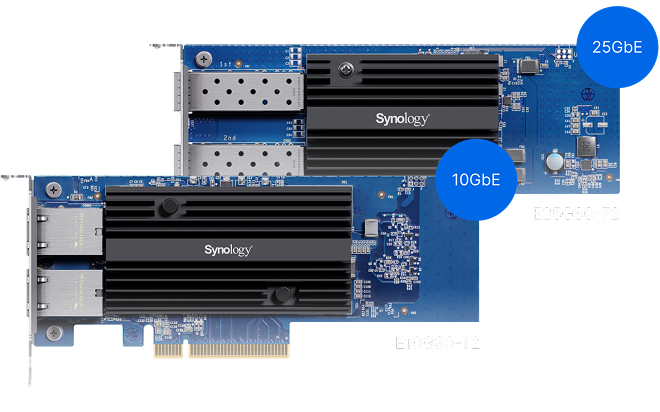

Image showing Synology add-in cards of 10GbE and 25GbE for connectivity upgrade

Storage efficiency

Automated storage tiering

Synology Tiering automatically moves infrequently accessed data from the FS6420 to cost-efficient tiers, balancing performance and capacity to maximize storage ROI. Flexible tiering policies, broad target support, and clear visibility into data usage help you adapt quickly to changing business needs.

Flash volume deduplication

Image showing Synology Tiering working with high-performance storage and cost-effective storage

VM Block & File Storage

Certified virtualization support

Deploy and manage storage operations in various virtualization environments with certified support for VMware® vSphere™, Microsoft® Hyper-V®, and Citrix® XenServer™.

Block storage for Kubernetes

Logos showing certification or compatibility for Windows Server, VMware®, Citrix®, and Openstack

Container & VM hosting

Container Manager enables easy deployment and management of Docker‑based containers on Synology systems, providing scalability and simplified management for thousands of apps. For full virtualization, Virtual Machine Manager (VMM) enables Windows®, Linux®, and DSM environments to run as isolated, flexible virtual machines, giving businesses the freedom to test, develop, and run diverse workloads securely on a single Synology system.7

Image showing the topology of a Synology system supporting deployment of containers and virtual machines via DSM packages.

Collaboration in a secure cloud, assisted by AI

Enhance workplace collaboration with Synology Office Suite. Create, edit, and share documents across teams in real time. Host an on-premises mail server to provide web-based email access while maintaining full data ownership.8 Additionally, stay connected through secure one-on-one chats, public channels, encrypted private channels, and group conversations. AI assistance enhances productivity across apps, with support for leading AI providers via API key integration.Learn more

Image showing icons of Synology Office, MailPlus, and Chat

Intuitive storage for on-site and remote teams

Provide secure and convenient cross-platform tile access, sharing, and synchronization across multiple locations.

A secure private cloud solution for enterprise collaboration

A private cloud suite for file sharing

Empower your entire organization with streamlined access, sharing, and syncing of data from any location. Establish granular control over file and folder access and sharing permissions. Maintain a comprehensive audit trail of file activities and track changes to file share settings with detailed records.Learn more

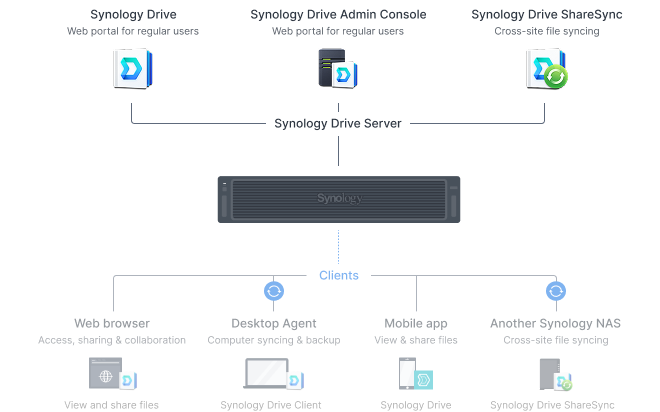

Image showing ways to access your Synology private cloud. Packages shown are Synology Drive, Synology Drive Client, and Synology Drive ShareSync.

Multi-platform support

Efficient multi-site synchronization

Cloud-powered multi-site syncing

Empower global workflows with high-speed access to data from anywhere in your network. Our hybrid cloud solution caches frequently used files locally for rapid access, while less frequently accessed data is stored in the cloud, reducing your on-site storage requirements.9Learn more

NAS-to-NAS synchronization

Sync to public cloud providers

Comprehensive backup solutions

Endpoint, VM, and NAS/SAN protection

Securely back up a wide range of systems including Windows, Mac, and Linux endpoints, VMware® and Hyper-V® virtual machines, and Synology servers. Expand protection to physical servers running Windows or Linux, as well as storage solutions such as Nutanix Files, NetApp ONTAP, and Windows Server with VSS (Volume Shadow Copy Service). Built-in deduplication technology optimizes storage efficiency, while multi-versioning capabilities provide flexible restoration options.Learn more

Microsoft 365 and Google Workspace

Advanced data protection and recovery

Efficient and reliable Synology system backup

Back up entire systems or all data, applications, and configurations to a wide range of storage destinations, including Synology C2 Storage.9 In case of data loss, quickly restore complete systems through bare-metal recovery or retrieve individual files as needed. Advanced features including automated scheduling, granular access controls, end-to-end encryption, data deduplication, and multi-version retention empower you to create the optimal backup plan for your data deployment.Learn more

Tamper-proof protection with immutable snapshots

Centralized monitoring and management

Monitor and manage your Synology fleet from a central interface, on-prem or in the cloud.

Central Management System
Manage Synology servers from a central console using group policies, task delegation, batch updates, and more.
Learn more
Active Insight
Monitor your global Synology fleet’s performance, backup status, login activity, and more with the power of the cloud.
Learn more
