Synology DVA7400

Synology DVA7400

DVA7400

  • Procesor: AMD V1780B
  • Pamięć systemowa: 16GB DDR4 ECC UDIMM
  • Łączna liczba gniazd pamięci: 2
  • Maksymalna pojemność pamięci: 32 GB (16 GB x 2)
  • Wnęka dysków: 12
  • Gwarancja: 3 lata
SKU: DVA7400 Kategorie: , Znacznik: Marka:

Opis na stronie producenta

CPU
 CPU Model AMD V1780B
CPU Architecture 64-bit
CPU Frequency Quad Core 3.35 (base) / 3.6 (turbo) GHz
Hardware Encryption Engine (AES-NI) Yes
Memory
 System Memory 16GB DDR4 ECC UDIMM
Memory Module Pre-installed 16GB
Total Memory Slots 2
Maximum Memory Capacity 32 GB (16 GB x 2)
Notes
  • Synology may revise pre-installed memory module specifications in response to component lifecycle and supply conditions. All revised components undergo the same rigorous validation to ensure equivalent compatibility, stability, and performance.
  • Please select Synology memory modules for optimum compatibility and reliability. Synology will not provide complete product warranty or technical support if non-Synology memory modules are used for memory expansion.
  • For information about recommended memory configurations, please check the Product Manual of your Synology product.
Storage
 Drive Bays 12
Compatible Drive Type* (See all supported drives)
  • 3.5″ SATA HDD
  • 2.5″ SATA SSD
Hot Swappable Drive* Yes
Notes Synology only guarantees full functionality, reliability, and performance for Synology drives listed on the compatibility list. The use of non-validated components may limit certain functionality and result in data loss and system instability.
External Ports
 Out-of-Band Management LAN Port 1
RJ-45 10GbE LAN Port 2
USB 3.0 Port 2
Appearance
 Size (Height × Width × Depth) 88 mm x 482 mm x 578 mm
Weight 12.24 kg
Others
 Wake on LAN / WAN Yes
System Fan 60 mm x 60 mm x 38 mm x 3 pcs
Fan Speed Mode
  • Cool Mode
  • Quiet Mode
  • Full-Speed Mode
Power Recovery Yes
Noise Level 51.8 dB(A)
Scheduled Power On / Off Yes
Power Supply Unit / Adapter 800 W
AC Input Power Voltage 100 V to 240 V AC
Power Frequency 50/60 Hz, Single Phase
Power Consumption 131.12 W (Access)
51.95 W (HDD Hibernation)
British Thermal Unit 447.12 BTU/hr (Access)
177.15 BTU/hr (HDD Hibernation)
Notes
  • For more information on how power consumption is measured, refer to this article.
  • Noise Level Testing Environment: Fully loaded with Seagate 2TB ST2000VN000 hard drive(s) in the idle state. Two G.R.A.S. Type 40AE microphones, each set up 1 meter away from the Synology NAS at the front and rear. Background noise: 16.49-17.51 dB(A); Temperature: 24.25-25.75˚C; Humidity: 58.2-61.8%
Temperature
 Operating Temperature 0°C to 35°C (32°F to 95°F)
Storage Temperature -20°C to 60°C (-5°F to 140°F)
Relative Humidity 5% to 95% RH
Certification
  • FCC
  • CE
  • BSMI
  • VCCI
  • RCM
  • UKCA
  • KC
Warranty
 3 Years
Notes The warranty period starts from the purchase date as stated on your purchase receipt. (Learn more)
Environment
 RoHS Compliant
Packaging Content
  • Main Unit × 1
  • Accessory Pack × 1
  • AC Power Cord × 2
  • Quick Installation Guide × 1
Optional Accessories
  • Plus Series 3.5″ SATA HDD: HAT3300 Series
  • DDR4 ECC U-DIMM: D4EU02-16GB
  • Enterprise Series 3.5″ SATA HDD: HAT5300 Series
  • Enterprise Series 2.5″ SATA SSD: SAT5200 Series
  • Surveillance Device License Pack
Notes:
  1. Model specifications are subject to change without prior notice.
  2. The figures are based on Synology internal testing. Each performance test is done individually. No other services or applications are processed at the same time.
  3. The actual performance may be lower than lab testing figure due to differences in server configuration, deployment, and the number of active operations.
  4. If usage requirements exceed the specifications above, please contact our regional partners for professional advice.

DVA7400

Search smarter with everyday language.

AI-powered NVR for proactive security and business analytics

The Synology DVA7400 is a high-performance 12-bay rackmount NVR engineered for high-density monitoring environments that demand advanced AI analysis.

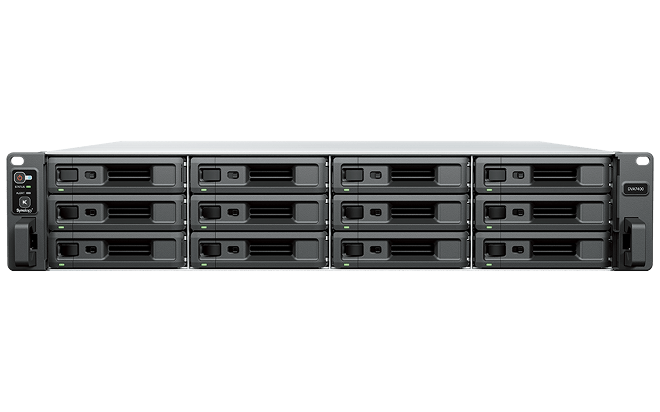

Enterprise-grade surveillance hub

The Synology DVA7400 provides a robust, high-capacity solution for mission-critical surveillance. By keeping the system accessible during unexpected downtime, it empowers businesses to maintain security operations without interruption.

Seamless scalability

A 12-bay rackmount design that grows with your surveillance needs. Pair with Archive Vault and Surveillance365 for secure offsite archiving and extended retention.

Meet surveillance regulatory compliance

Exceed compliance standards with high-capacity storage designed for long-term footage retention, facilitating compliance with demanding legal discovery requirements.

Exceed compliance standards with high-capacity storage designed for long-term footage retention, facilitating compliance with demanding legal discovery requirements.

Security meets AI-powered intelligence

Scale your investigative capabilities with on-device, cutting-edge AI analytics built for massive deployments.

  • Search across multiple cameras using natural language queries and surface results in seconds.
  • Filter by visual characteristics such as clothing color or vehicle type to pinpoint specific subjects and dramatically improve search accuracy.
  • Automatically link a person’s appearances across multiple cameras and zones to reconstruct their full movement path.

Detect smartly, act promtly

License Plate Recognition

Monitor vehicles entering and leaving your premises, and configure automated actions for allowed or blocked vehicles.
Monitor vehicles entering and leaving your premises, and configure automated actions for allowed or blocked vehicles

Face Recognition

Accurately track the flow of people and vehicles in and out of your site, with detailed reports ready for post-event review and analysis.

People and Vehicle Counting

People and Vehicle Detection

Instantly alert staff when people or vehicles linger in predefined zones, such as a no-parking zone or restricted entrance.

Intrusion Detection

Set virtual boundaries and receive smart alerts the moment people or vehicles cross from a designated direction.

Add AI intelligence to your IP cameras

Upgrade your existing cameras with the DVA7400 to unlock advanced AI analytics features, supporting up to 100 cameras and 40 simultaneous AI tasks to transform your surveillance deployment into a proactive security powerhouse.

Up to 100 cameras
Up to 40 simultaneous AI tasks

Simplify multi-site security operations

Unified monitoring and third-party integration across all sites.

One platform, total control

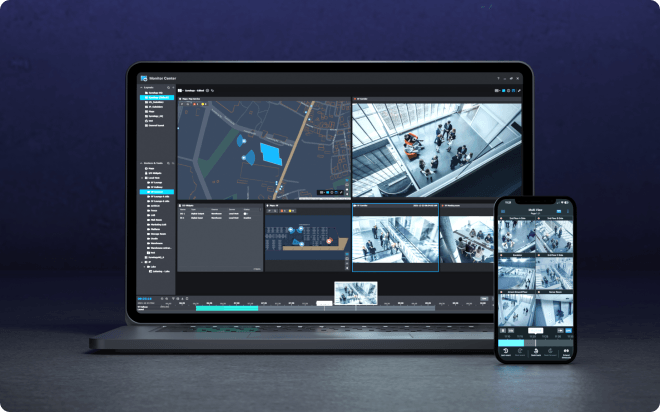

Fully integrated with Surveillance Station, enabling unified monitoring, event management and third-party integration across multi-site deployments.

Fully integrated with Surveillance Station, enabling unified monitoring, event management and third-party integration across multi-site deployments.

Multi-platform support
Monitor streams in real time or browse recorded footage seamlessly from browsers, desktop clients, and mobile apps.
Centralized management at scale
Manage fleets of recording servers from a single interface.
Extensive third-party integration
Empower your surveillance system with robust integration support for a wide range of third-party solutions.

Tailored for high-density security

Experience the next generation of security intelligence.

Retail

Protect your retail space with Semantic Video Search to instantly track suspects and safeguard inventory. Use People Counting to transform surveillance data into actionable insights for smarter, safer daily operations.

Manufacturing

Safeguard perimeters and production lines with real-time AI analytics. Leverage License Plate Recognition to enhance facility automation, and use Semantic Video Search to alert operators to irregular staff behavior or external security threats.

Campus

Rapidly identify individuals or vehicles of interest using Semantic Video Search, and leverage Crowd Detection to issue alerts before incidents escalate—enabling proactive, preventative protection.
