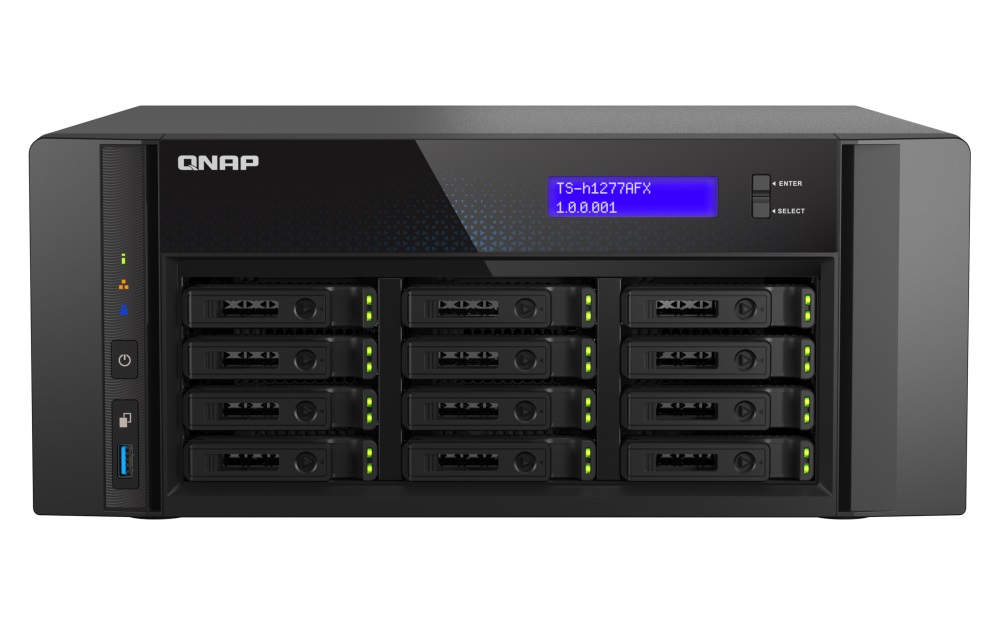

QNAP TS-h1277AFX-R7-32G

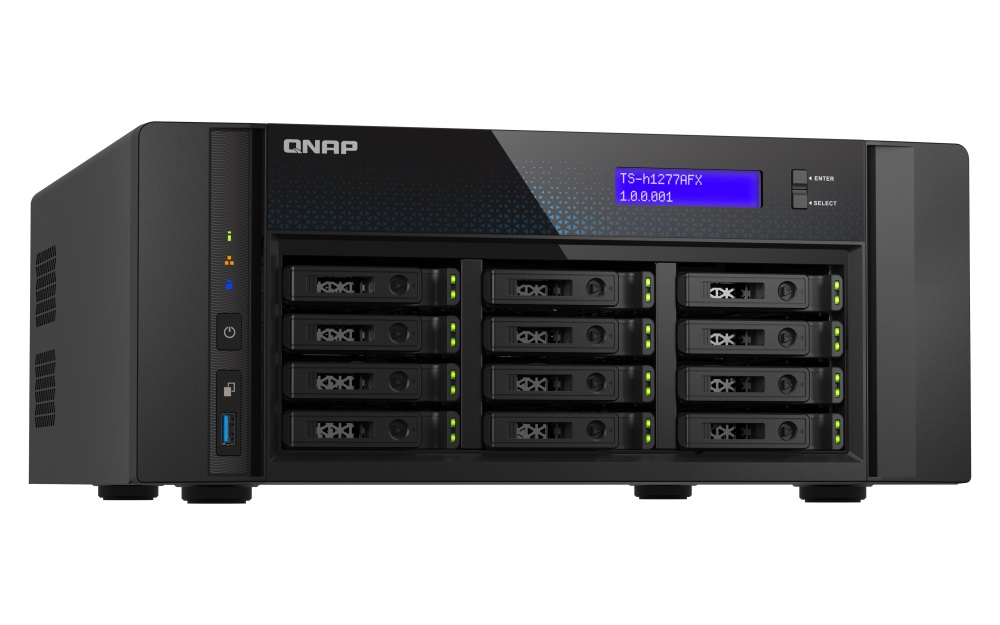

QNAP TS-h1277AFX-R7-32G - obrazek 2

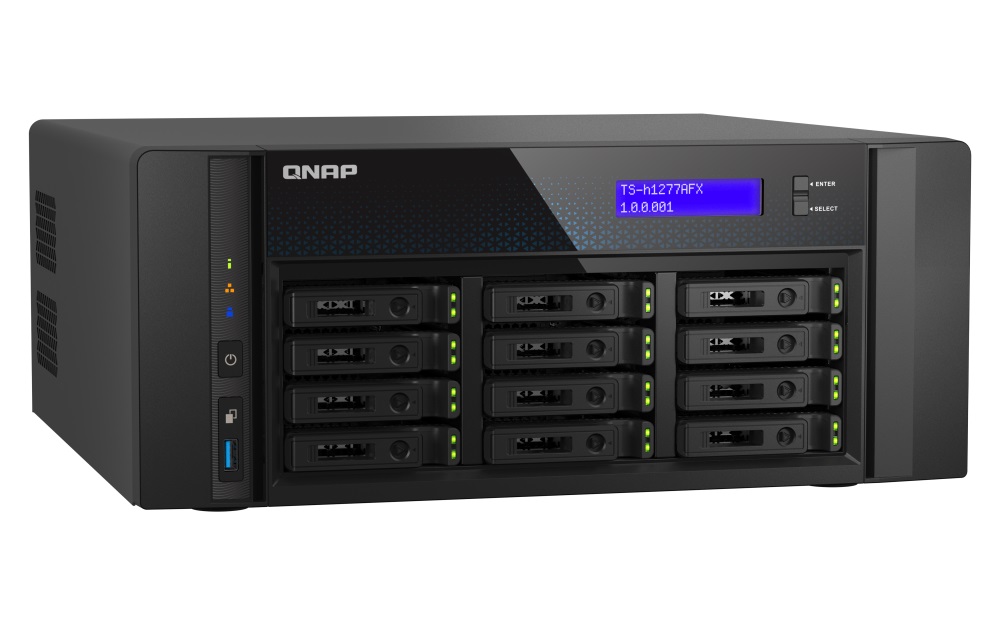

QNAP TS-h1277AFX-R7-32G - obrazek 3

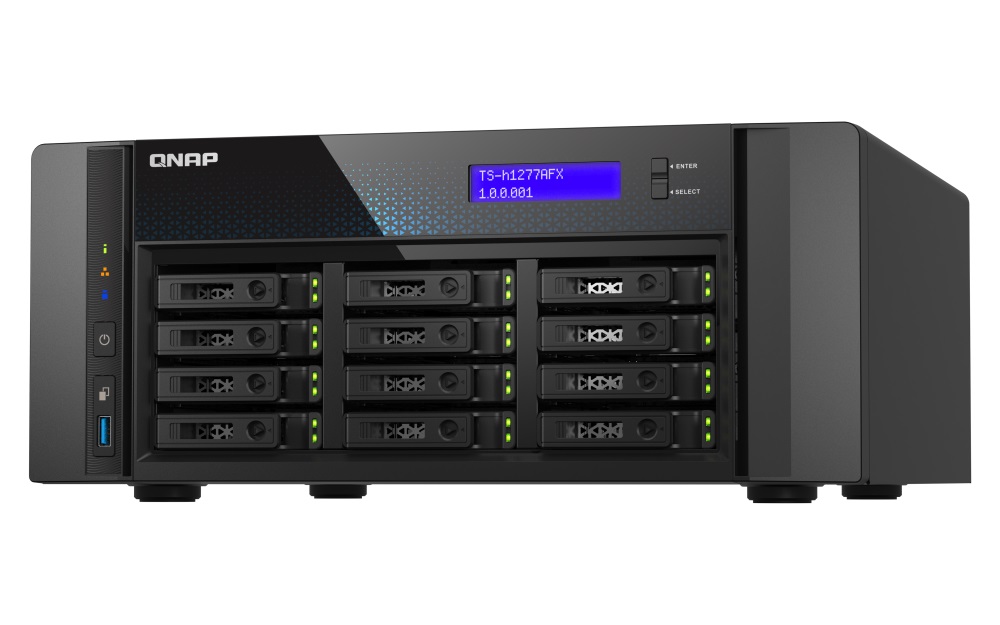

QNAP TS-h1277AFX-R7-32G - obrazek 4

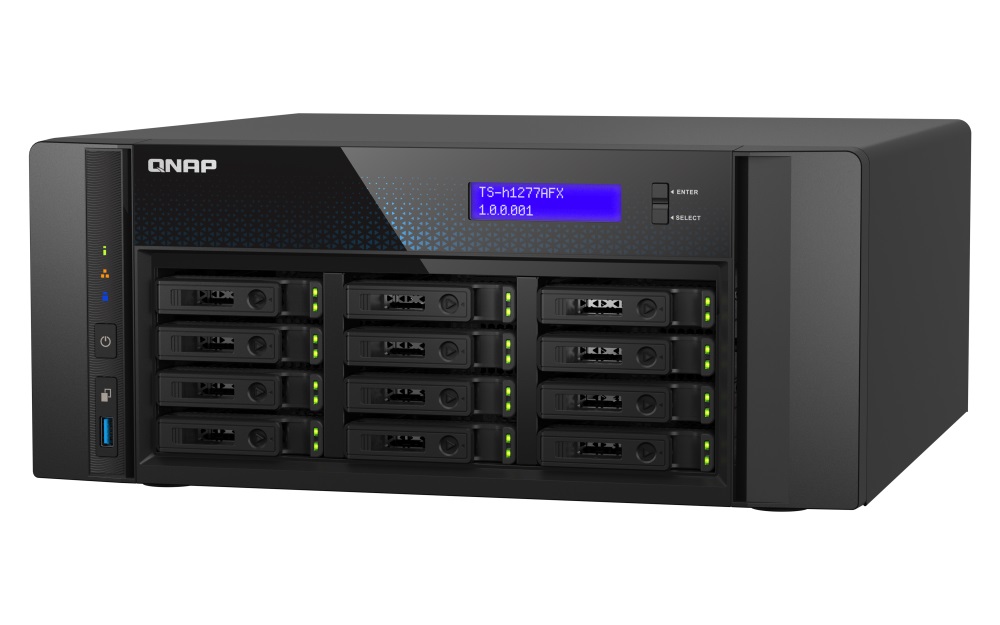

QNAP TS-h1277AFX-R7-32G - obrazek 5

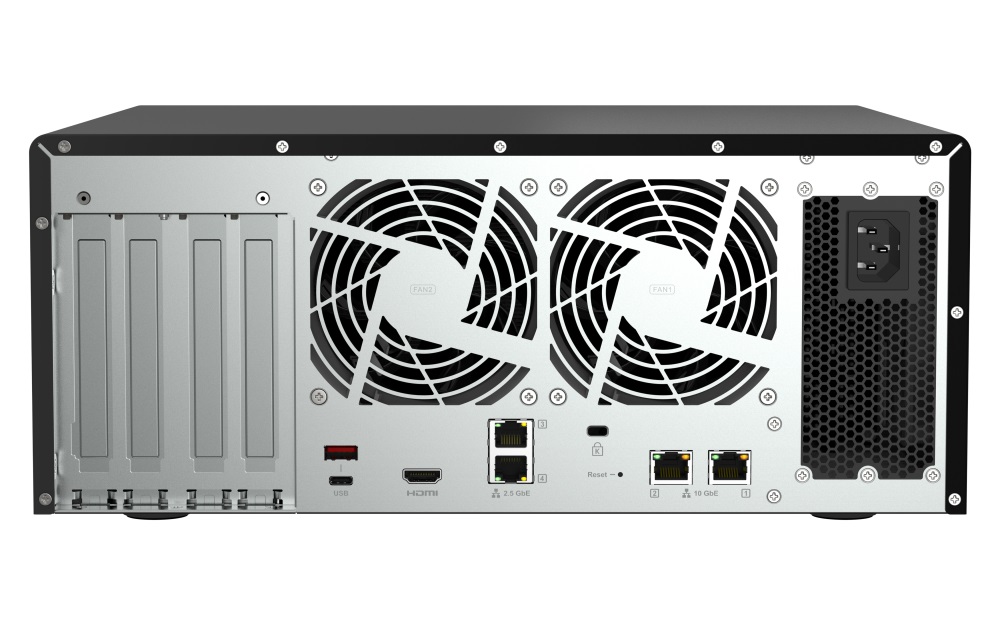

QNAP TS-h1277AFX-R7-32G - obrazek 6

QNAP TS-h1277AFX-R7-32G

26843,00 zł

TS-h1277AFX-R7-32G

  • Procesor: AMD Ryzen™ 7 9000 Series 8C/16T 3.8 GHz, up to 5.5 GHz
  • Procesory graficzne: AMD Radeon iGPU
  • Sloty pamięci: 4 x DDR5 UDIMM
  • Pamięć flash: 4GB (Dual boot OS protection)
  • Wnęka dysków: 12 x 2.5″ SATA 6Gb/s
  • Kompatybilność dysków: 2.5-inch SATA solid state drives
  • Slot M.2: Optional via PCIe adapters
  • Gwarancja: 5 lat

sprawdź dostępność

SKU: TS-h1277AFX-R7-32G Kategoria: Znaczniki: , Marka:

Opis na stronie producenta

CPU AMD Ryzen™ 7 9000 Series 8C/16T 3.8 GHz, up to 5.5 GHz
CPU Architecture 64-bit x86
Graphic Processors AMD Radeon iGPU
Encryption Engine ✔ (AES-NI)
Hardware-accelerated Transcoding ✔
System Memory 32 GB UDIMM DDR5 ECC (1 x 32 GB)
Maximum Memory 192 GB (4 x 48GB)
Memory Slot 4 x DDR5 UDIMM
Flash Memory 4GB (Dual boot OS protection)
Drive Bay 12 x 2.5″ SATA 6Gb/s

The system is shipped without SSD.
For the SSD compatibility list, please visit https://www.qnap.com/compatibility/
Drive Compatibility 2.5-inch SATA solid state drives
Hot-swappable ✔
M.2 Slot Optional via PCIe adapters

Compatible with NVMe SSD PCIe Gen 3 and above. Please refer to https://www.qnap.com/compatibility/ for compatibility.
SSD Cache Acceleration Support ✔
GPU pass-through ✔
SR-IOV ✔
2.5 Gigabit Ethernet Port (2.5G/1G/100M) 2 (2.5G/1G/100M/10M)
10 Gigabit Ethernet Port 2 x 10GBASE-T (10G/5G/2.5G/1G/100M)
25 Gigabit Ethernet Port Optional via a PCIe adapter
Wake on LAN (WOL)

Only the 2.5GbE port
Jumbo Frame ✔
PCIe Slot 3
Slot 1: Gen 4 x 4
Slot 2: Gen 4 x 8 or Gen 4 x 4*
Slot 3: Gen 4 x 8

*Slot 2 provides the width of PCIe Gen4 x8 when Slot 1 is not in use, and provides the width of PCIe Gen4 x4 when Slot 1 is in use.
Card dimensions for PCIe slot 1 ~ Slot 2：185 x 111.15 x 18.76 mm / 7.28 x 4.38 x 0.74 inches.
Card dimensions for PCIe slot 3：280 x 111.15 x 18.76 mm / 11.02 x 4.38 x 0.74 inches.
Wider cards can be installed if the next PCIe slot will not be used.
USB 3.2 Gen 1 port 1
USB 3.2 Gen 2 (10Gbps) Port 2 x USB 3.2 (1x Type-C with DPI included , 1x Type-A) (10Gb/s)
HDMI™ Output 1 x HDMI™ 1.4b ( up to 3840 x 2160 @ 30Hz )
Form Factor Tower
LED Indicators Power/Status, LAN, USB, SSD1-12
LCD Display/ Button ✔
Buttons Power, Reset, USB Auto Copy
Dimensions (HxWxD) 157.2 × 368 × 362 mm

Dimensions do not include foot pad (foot pad may be up to 30mm / 1.18 inches high depending on model)
Weight (Net) 8 kg
Weight (Gross) 8.9 kg
Operating Temperature 0 – 40 °C (32°F – 104°F)
Storage Temperature -20 – 70°C (-4°F – 158°F)
Relative Humidity 5-95% RH non-condensing, wet bulb: 27˚C (80.6˚F)
Power Supply Unit Minimum 500W, 100-240V
Power Consumption: Disk Standby Mode 69.01
Power Consumption: Operating Mode, Typical 102.54 W

Tested with drives fully populated.
Fan 2 x 92mm, 12VDC
System Warning Buzzer
Kensington Security Slot ✔
Standard Warranty 5
Max. Number of Concurrent Connections (CIFS) – with Max. Memory 10,000
Note: Use only QNAP memory modules to maintain system performance and stability. For NAS devices with more than one memory slot, use QNAP modules with identical specifications and refer to the hardware user manual to install compatible QNAP memory modules.
Warning: Using unsupported modules may degrade performance, cause errors, or prevent the operating system from starting.
QNAP reserves the right to replace partial parts or accessories if the original is no longer available from its manufacturer/supplier. Any replacement would be fully tested and verified to meet strict compatibility and stability guidelines and will deliver identical performance to the original.
The terms HDMI, HDMI High-Definition Multimedia Interface, HDMI trade dress and the HDMI Logos are trademarks or registered trademarks of HDMI Licensing Administrator, Inc.
Product images are for illustrative purposes only and may differ from the actual product. Due to differences in monitors, colors of products may also appear different to those shown on the site.
Designs and specifications are subject to change without notice.

TS-h1277AFX

High-performance all-flash NAS – Optimizing collaboration and productivity for creatives, with unmatched affordability.

Powered by AMD Ryzen™ 7 9000 Series processors, the 12-bay SATA all-flash NAS TS-h1277AFX redefines performance and expandability, delivering an ideal storage solution tailored for multimedia creators. Coupled with the ZFS-based QuTS hero operating system, it ensures unmatched data integrity, system reliability, and advanced SSD optimization. The TS-h1277AFX supports 2.5/10/25GbE high-speed connectivity, making it an ideal companion for low-latency 4K/8K video editing, visual effects (VFX) workflows, team collaboration, and large file transfers – empowering creators to focus entirely on their craft without worrying technical barriers.

amd-ryzen-9000quts-hero-qts2.5gbex10gbeusb3.2-gen2hdmi

  • DDR5 Memory

    Featuring advanced DDR5 ECC memory with up to 192 GB support, delivering exceptional stability for demanding workloads.

  • Optimized SSD Performance

    Boosts efficiency and durability with real-time deduplication and SSD failure prevention.

  • Data Immutability

    WORM (Write Once, Read Many) technology ensures data integrity and protection against tampering.

  • 3 x PCIe Gen 4 Expansion

    Upgrade to 25GbE, add M.2 SSDs, or connect JBOD units to scale performance and storage capacity.

  • Dual 2.5GbE & Dual 10GBASE-T Multi-Gig

    Multiple network ports for seamless connectivity, with expansion via network switches for more devices and workstations.

  • Built-in GPU for graphics

    Power-efficient AMD Radeon™ Graphics streamlines video editing/transcoding and simultaneously runs multiple tasks.

 TS-h1277AFX-R7-32G

AMD Ryzen™ 7 9000 Series 8C/16T 3.8 GHz, up to 5.5 GHz, 32 GB UDIMM DDR5 ECC (1 x 32 GB)

12-bay SATA All-Flash Array for Maximum Efficiency

With robust I/O performance, the TS-h1277AFX handles large-scale projects with ease, providing stable and reliable storage while minimizing latency.

  • Storage capacity up to

    184 TB

Essential and fast for creative projects

The TS-h1277AFX all-flash storage solution is engineered to meet the demands of modern data-intensive workflows, including 4K/8K video editing, visual effects (VFX), and virtual desktop infrastructure (VDI). Facilitating cross-platform collaboration, streamlined workflows, and robust data security, it’s ideal for professional media production, enterprise environments, and beyond.

Powered by AMD Ryzen™ 7 9000 Series and DDR5 RAM

The TS-h1277AFX, featuring the AMD Ryzen™ 9000 Series processor with Zen 5 architecture and DDR5 memory, offers higher bandwidth, lower latency, and reduced power consumption, delivering exceptional performance for critical applications.

  • CPU

    AMD Ryzen™ 7 9000 Series 8-core/16-thread processor (Up to 5.5 GHz)

  • Memory

    DDR5 ECC (Error-Correcting Code) RAM (up to 192 GB, 4 x 48 GB)

Transfer speed

iSCSI Random IOPS 4K (5 x 25GbE) Read

1387780
 Write

1106619
SMB Sequential Throughout 1M (6 x 25GbE) Read

17348 MB/s
 Write

12092 MB/s

Tested in QNAP Labs. Figures may vary by environment.

Test Environment:
NAS: TS-h1277AFX-R7 with 64GB RAM and QXG-25G2SF-CX6*3
OS: QTS 5.2.2.2941
Volume type:
Phison PASCARI SA50V 15.36TB 2.5″ SATA SSD S1201K0015T3V0116T300 x12, RAID 5
Client PC:
5x Windows Server 2019, (1x Intel Core i7-7700, 3x Intel Core i3-8100, 1x i7-6700), simultaneously read and write 256GB file

Designed to blend in, built to stand out

The TS-h1277AFX features advanced cooling for near-silent operations, providing effective cooling without distracting noises. With a lightweight and stylish design, the TS-h1277AFX is a perfect fit for modern work environments.

  • Ideal for office environment

  • Noise under standby mode

    19 dBA
  • Noise under normal mode32 dBA

Built-in 10GbE & 2.5GbE, upgradeable to 25GbE

  • Direct connectivity for up to 10 PC/workstations

    With 2 x 10GbE and 2 x 2.5GbE ports, plus PCIe slots for expansion, the TS-h1277AFX supports direct connection of up to 10 PCs/workstations without a switch.

  • Multi-user collaboration with network switch

    Upgrade with a 25GbE expansion card and high-speed switch for seamless multimedia collaboration, enabling efficient file access and real-time editing across multiple workstations.

Supercharge your workstation with PCIe Gen 4 slots

The TS-h1277AFX features three PCIe Gen 4 slots, delivering double the I/O performance of PCIe Gen 3. This provides versatile expansion options, optimizing application performance and overall system efficiency.

  • Network Expansion: 2.5/10/25GbE Expansion Card

    Maximize bandwidth for large file access, backup, and virtualization with expansion cards, and further boost transfer speeds through SMB Multichannel connection aggregation.

    Explore

  • M.2 Slot Expansion: QM2 Expansion Card

    Add M.2 SSDs for high-speed storage pools or cache acceleration, reducing latency and improving overall system responsiveness.

    Explore

  • GPU Expansion: Graphics Card

    Enhance video editing and transcoding capabilities, or leverage GPU Passthrough for accelerating virtual machine graphics processing.

    View Compatibility List

  • Storage Expansion: Storage Expansion Cards

    Expand storage capacity by connecting multiple high-performance QNAP JBOD devices, ideal for large-scale data storage, backups, and long-term archiving. Check Compatible Devices >

    Explore

Future-proof your storage with JBOD scalability

As file volumes and storage needs grow, the TS-h1277AFX can connect up to eight QNAP 16-bay TL-R1620Sep-RP JBOD expansion units, adding up to 128 additional hard drives and providing substantial storage capacity.

View Compatible Expansion Devices

QNAP JBOD enclosures can only be used as an independent storage pool or volume. They cannot be combined with the storage pool or disk volume of the NAS host. NAS applications can only be installed on the host NAS.

Guarding every spark of creativity

Instant disaster recovery mechanisms effectively counter ransomware threats, ensuring your production workflow remains uninterrupted and your valuable content stays protected.

Offsite Backup

Backup/sync your TS-h1277AFX data to another QNAP NAS or remote server for secure offsite storage, protecting your creative assets.

Explore Hybrid Backup Sync

Real-Time Sync

Instant 1:1 synchronization with backup NAS ensures zero RPO, enabling rapid recovery and minimal downtime.

Explore Real-time SnapSync

Near-Infinite Snapshots

Regular snapshots protect against ransomware, offering quick recovery and ensuring the safety of your media files.

Explore more

Trusted storage for virtualization

Powerful yet affordable

Cost-effective iSCSI/IP-SAN storage solutions with high bandwidth for reduced latency.

Flexible & Scalable

Supports multiple protocols and expansion options to meet business needs.

Data protection

Offers LUN encryption, snapshots, and backup to ensure data safety.

Compatible with top-tier solutions

The TS-h1277AFX supports VMware® vSphere™, Microsoft® Hyper-V®, and Citrix® XenServer™ mainstream virtualization platforms. With the QNAP CSI Plugin for Kubernetes®, the TS-h1277AFX is also ideal block storage for Kubernetes® containerized apps. Check QNAP NAS with Support for Virtualization application

Object storage certified as Veeam® Ready

Use the TS-h1277AFX with QuObjects as the premier destination for S3 object storage and backup. QuObjects supports Object Lock, validated as Veeam® Ready – Object with Immutability. Learn More

Run VMs and Containers

With no additional fees, you can run multiple VMs of different OS on TS-h1277AFX. This allows you to deploy multi-tenant environments and applications to increase management efficiency and save hardware costs.

  • Containers

    Run Docker®, LXD, Kata Containers and download Container Apps using Container Station.

  • VM High Availability (Coming soon)

    VM Live Migration and HA (High Availability) guarantee continuous operation and minimal downtime.

  • Network & Virtual Switch

    Flexibly allocate virtual network resources and configure VLANs to ensure virtual services via the virtual network topology in Network & Virtual Switch.

QuTS hero operating system

Designed for enterprises, the QuTS hero operating system adopts the highly reliable ZFS file system to provide utmost data integrity and stability for mission-critical storage. QuTS hero further optimizes SSD performance and endurance to meet businesses’ stringent demands for performance and reliability. Explore the QuTS hero operating system Check out QuTS hero’s latest features

  • Automatic repair of corrupted data

    ZFS supports self-healing for silent data corruption, automatically detecting damaged data to ensure data integrity.

  • Data immutability

    Enable WORM (Write Once, Read Many) to prevent written data from being overwritten, modified, or deleted, effectively mitigating ransomware threats.

  • Power failure protection

    ZIL (ZFS Intent Log) protects against potential data corruption caused by power failure by safeguarding unwritten data.

  • Data reduction

    Inline data deduplication reduces storage consumption for maintaining optimal disk capacity.

  • Prevent simultaneous SSD failure

    The patented QSAL algorithm automatically and regularly detects RAID-level SSD lifespan to prevent simultaneous SSD failure, avoiding RAID crashes and data loss.

Multi-level security strategy for enterprises

Bolster business data security with resilience from all aspects

Connection

Permission

Transmission

  • SMB signing acceleration

    Enable SMB signing to facilitate secure SMB file transfer, while QNAP’s exclusive algorithm greatly increases data signing efficiency and data transmission performance.

Assessment

  • Security and risk assessment

    Security Center proactively detects NAS status and unusual file activity, and offers instant protective measures.

  • Centralized notification management

    Centrally manage system events and alert notifications via Notification Center to stay up-to-date with NAS status.

  • Block malware attacks

    Malware Remover regularly scans your NAS. When detecting malware attacks, infected files are immediately blocked and removed to ensure NAS security.

Construct a multi-level security defense system for enterprises

How to configure your network and connect your NAS to prevent malware attacks?

5-year warranty as standard

The TS-h1277AFX is backed by a 5-year warranty at no extra cost – providing your business organization with greater peace of mind.

QNAP Warranty Service

NAS Recovery Guide
