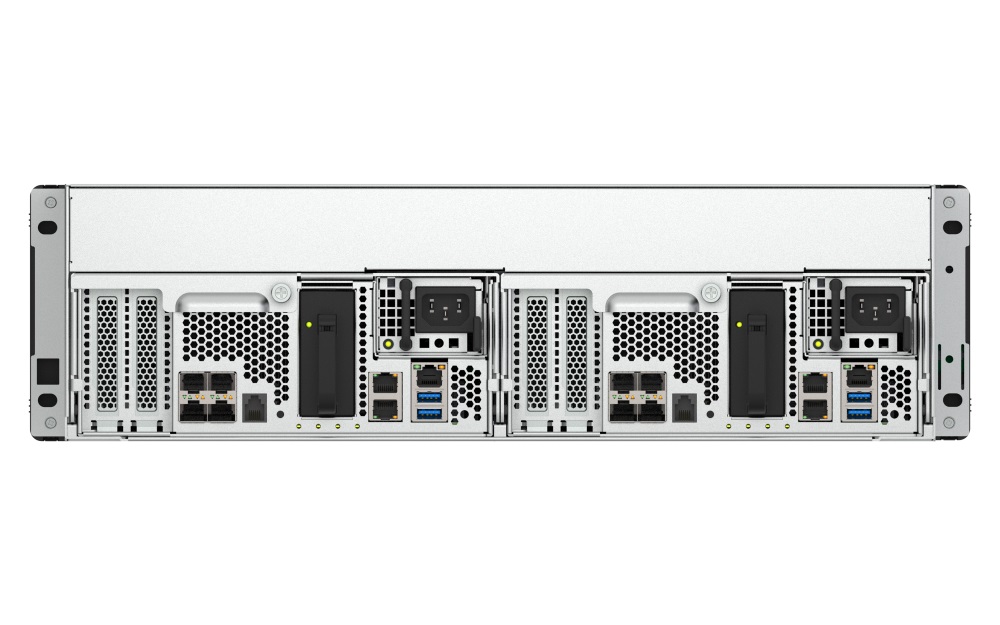

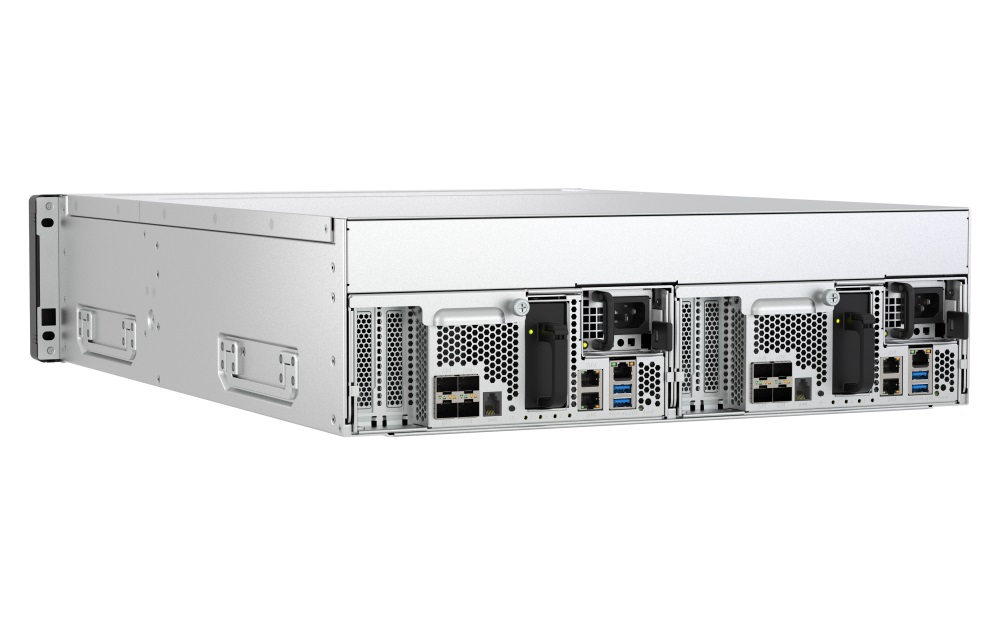

QNAP ES1686dc-R2-2142IT-128G - obrazek 2
QNAP ES1686dc-R2-2142IT-128G - obrazek 3

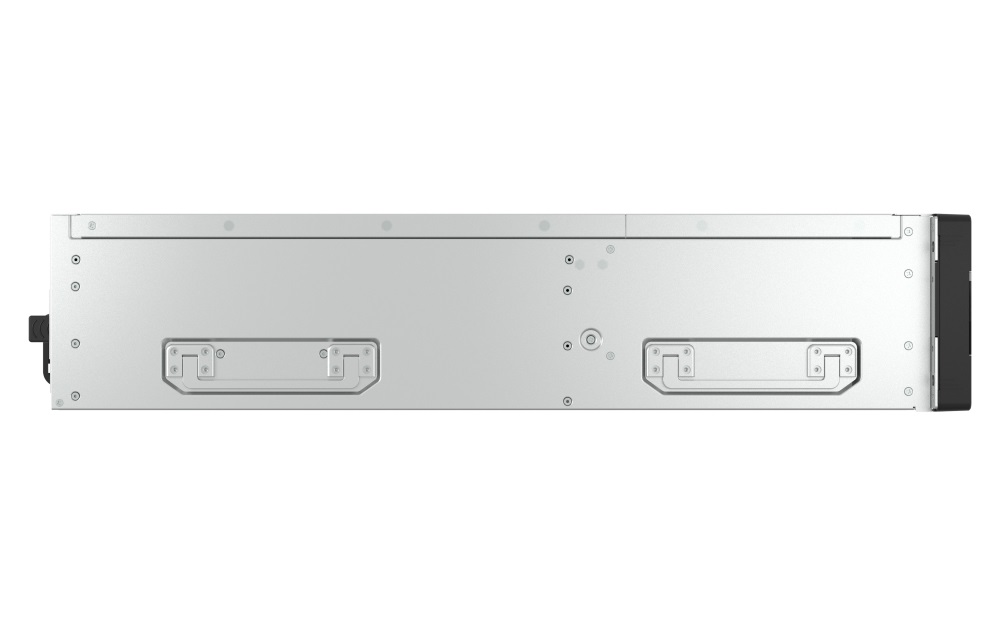

QNAP ES1686dc-R2-2142IT-128G - obrazek 4

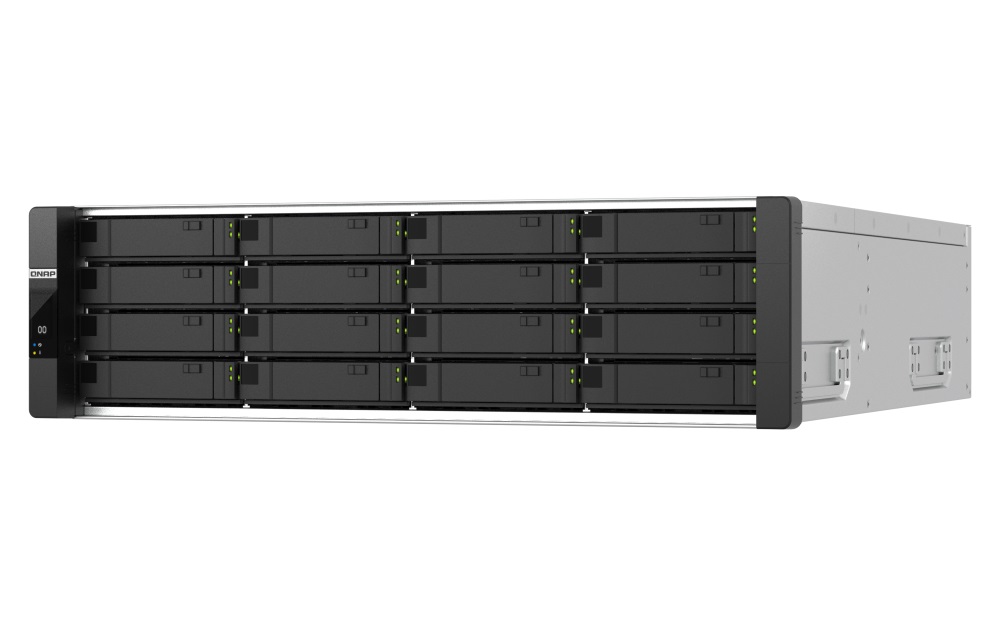

QNAP ES1686dc-R2-2142IT-128G - obrazek 5

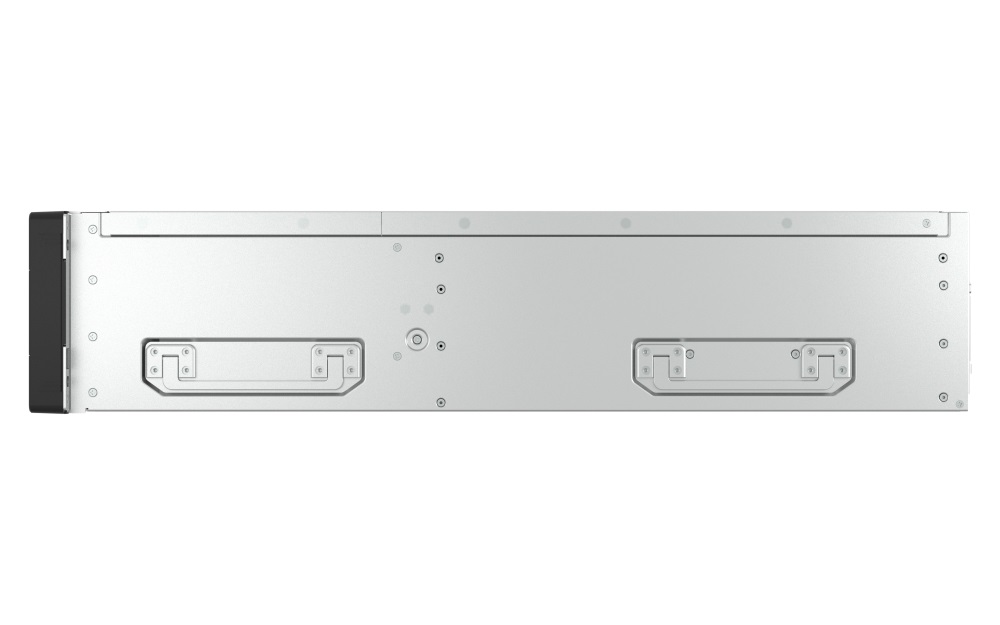

QNAP ES1686dc-R2-2142IT-128G - obrazek 6

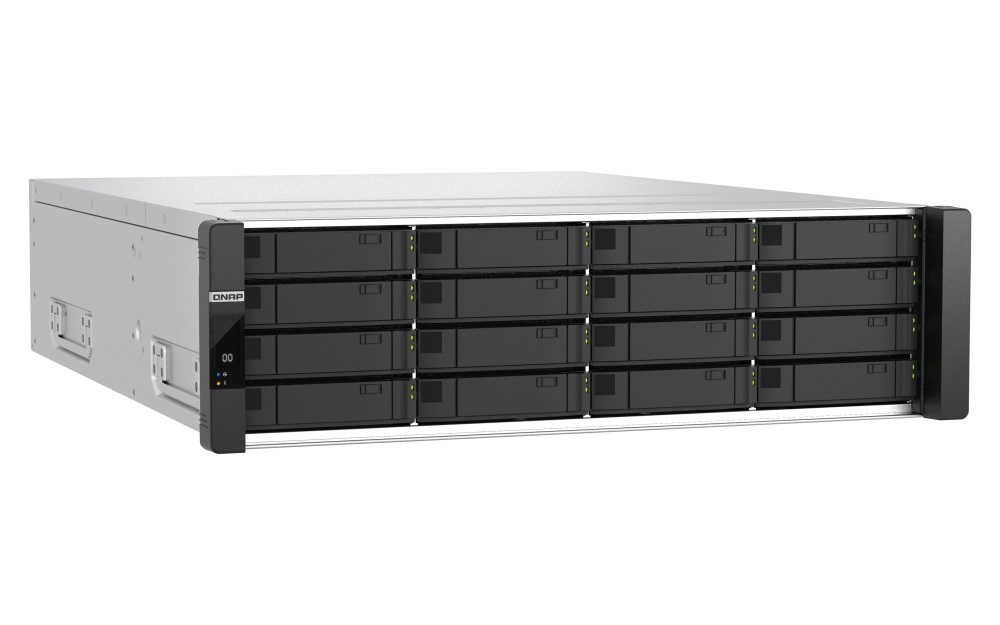

QNAP ES1686dc-R2-2142IT-128G - obrazek 7

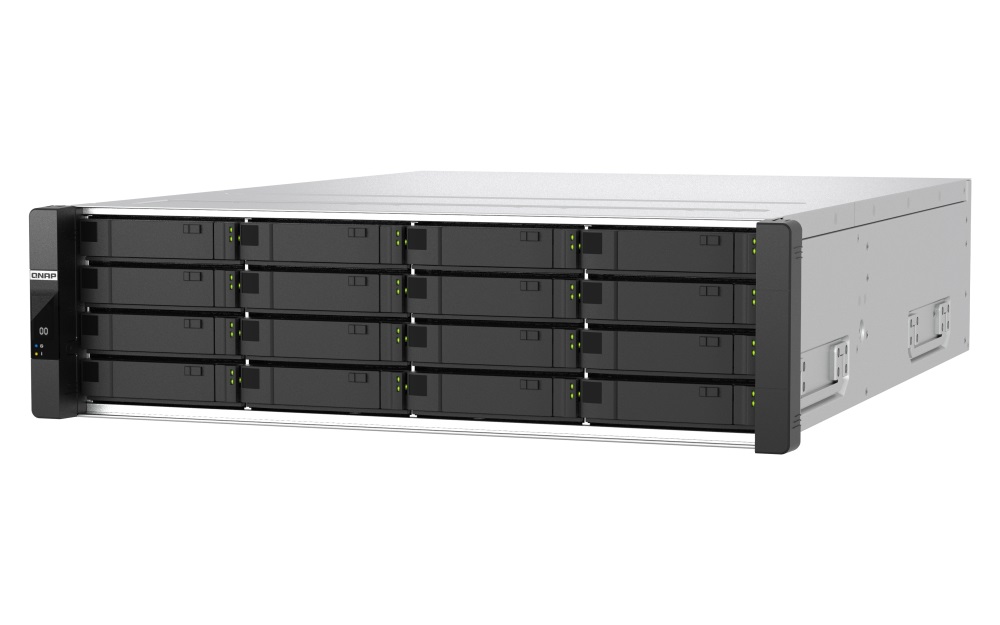

QNAP ES1686dc-R2-2142IT-128G - obrazek 8
QNAP ES1686dc-R2-2142IT-128G - obrazek 9

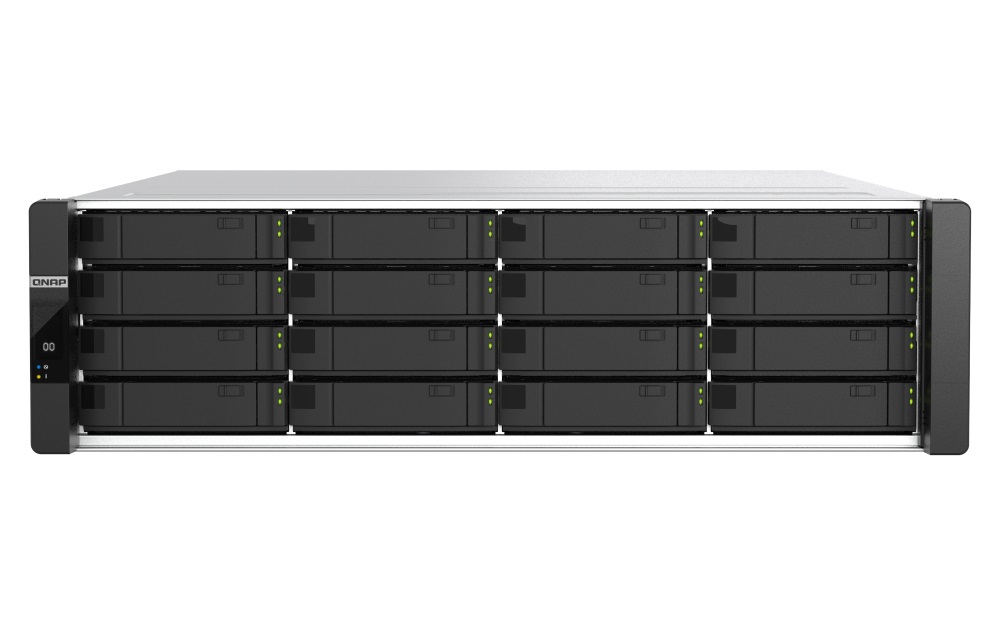

QNAP ES1686dc-R2-2142IT-128G - obrazek 10

QNAP ES1686dc-R2-2142IT-128G

109935,00 zł

ES1686dc-R2-2142IT-128G

  • CPU: Intel® Xeon® D-2142IT 8-core 1.90 GHz processor (burst up to 3.0 GHz) per controller
  • Pamięć systemowa: 64 GB RDIMM DDR4 ECC (4 x 16 GB) per controller
  • Gniazdo pamięci: 8 x R-DIMM/LR-DIMM DDR4
  • Pamięć flash: 4GB (Dual boot OS protection)
  • Wnęka dysków: 16 x 3.5-inch
  • Gwarancja: 5 lat

sprawdź dostępność

SKU: ES1686dc-R2-2142IT-128G Kategoria: Marka:

Opis na stronie producenta

CPU Intel® Xeon® D-2142IT 8-core 1.90 GHz processor (burst up to 3.0 GHz) per controller
CPU Architecture 64-bit x86
Floating Point Unit v
Encryption Engine  v (AES-NI)
System Memory 64 GB RDIMM DDR4 ECC (4 x 16 GB) per controller
Maximum Memory 512 GB (8 x 64GB)
Memory Slot 8 x R-DIMM/LR-DIMM DDR4

IMPORTANT: You can only use one type of dual in-line memory module (DIMM) at a time. Do not use registered DIMM (RDIMM) with load-reduction DIMM (LRDIMM) memory.
Flash Memory 4GB (Dual boot OS protection)
Drive Bay 16 x 3.5-inch

SAS 12Gb/s, backward-compatible to SAS 6Gb/s
Drive Compatibility 3.5-inch bays:
3.5-inch SAS hard disk drives
2.5-inch SAS hard disk drives
2.5-inch SAS solid state drives
Hot-swappable v
SSD Cache Acceleration Support v
Read cache only
Cache for Copy To Flash (C2F) 1 per each controller (64GB M.2 SSD)
Gigabit Ethernet Port (RJ45) 3 for each controller (assign one for remote management)
10 Gigabit Ethernet Port 4 x 10GbE SFP+ for each controller
Wake on LAN (WOL) v
Jumbo Frame v
PCIe Slot 2 per controller
Slot 1: PCIe Gen 3 x8 (CPU)
Slot 2: PCIe Gen 3 x8 (CPU)

Card dimensions for PCIe slot 1~Slot 2：215 x 68.9 x 18.76 mm / 8.46 x 2.71 x 0.74 inches.
Wider cards can be installed if the next PCIe slot will not be used.
USB 3.2 Gen 1 port 2 per each controller

Note: The USB ports are for engineering purpose only. No external devices such as storage drives or UPS are supported.
Form Factor 3U Rackmount
LED Indicators System Power LED (Green): on/off
System Status (Green/ Orange): in operation, system errors, low power, degraded RAID mode, memory failure, fan/power supply failure, system/disk temperature too high, storage pool reaching threshold value, system performing take-over, power supply unit unplugged
LCD Status Display (Two-digit number): Status of JBOD connection
Buttons Power, Reset
Dimensions (HxWxD) 132 × 446.2 × 587.75 mm
Weight (Net) 30.22 kg
Weight (Gross) 34.92 kg
Operating Temperature 0 – 40 °C (32°F – 104°F)
Storage Temperature -20 – 70°C (-4°F – 158°F)
Relative Humidity 5-95% RH non-condensing, wet bulb: 27˚C (80.6˚F)
Power Supply Unit Redundant/ Hot Swap Power Vin:90~264VAC;700W
Power Consumption: Operating Mode, Typical 500.87 W

Tested with drives fully populated.
Fan Hot-swappable fan module (60*60*38mm; 16000RPM/12v/2.8A x 3)
System Warning Buzzer
Standard Warranty 5
Max. Number of Concurrent Connections (CIFS) – with Max. Memory 10000
Safety Standard FCC Class A (USA only)
CE Mark ( EN55022 Class A, EN55024)
EN60950
BSMI
VCCI
CB
LVD

Uwaga: Aby utrzymać wydajność i stabilność systemu, należy używać wyłącznie modułów pamięci QNAP. W przypadku urządzeń NAS z więcej niż jednym gniazdem pamięci należy używać modułów QNAP o identycznych specyfikacjach i zapoznać się z instrukcją obsługi sprzętu w celu zainstalowania kompatybilnych modułów pamięci QNAP.
Ostrzeżenie: Używanie nieobsługiwanych modułów może obniżyć wydajność, spowodować błędy lub uniemożliwić uruchomienie systemu operacyjnego.
QNAP zastrzega sobie prawo do wymiany części lub akcesoriów, jeśli oryginał nie jest już dostępny u producenta/dostawcy. Każdy zamiennik zostanie w pełni przetestowany i zweryfikowany pod kątem zgodności z rygorystycznymi wytycznymi dotyczącymi kompatybilności i stabilności oraz zapewni identyczną wydajność jak oryginał.
Terminy HDMI, HDMI High-Definition Multimedia Interface, HDMI trade dress i HDMI Logos są znakami towarowymi lub zastrzeżonymi znakami towarowymi HDMI Licensing Administrator, Inc.
Zdjęcia produktów służą wyłącznie celom ilustracyjnym i mogą różnić się od rzeczywistego produktu. Ze względu na różnice w monitorach, kolory produktów mogą również różnić się od tych pokazanych na stronie.
Projekty i specyfikacje mogą ulec zmianie bez powiadomienia.

ES1686dc R2

High Availability Enterprise NAS with Dual Active Controllers

Ensure uninterrupted mission-critical business operations with the high-availability ES1686dc R2 NAS. With redundant controllers and power supplies, it minimizes downtime, allowing seamless component replacement without disruption, ensuring reliability and continuity for enterprises.

intel-xeon-dvm-readycitrix-ready-1hyper-vveeam_ready_objectveeam_ready_R

  • Dual active-active controllers

    Dual active-active controllers provide supreme uptime and redundancy to ensure high availability.

  • NVRAM module

    NVRAM reduces the risk of losing write cache data if unexpected power failure occurs.

  • QES operating system

    Supports ZFS near-limitless snapshots, SnapSync, block-level data deduplication, and inline data compression.

  • Storage for virtualization

    Supports VMware® vSphere®, Windows Server® and Citrix® XenServer® for storage virtualization.

  • 10GbE SFP+ ports

    Four 10GbE SFP+ ports (per controller) accelerate virtualization, large file sharing, and intensive data transfer.

  • PCIe Gen 3 slots

    Two PCIe slots (per controller) allow for adding 10GbE/25GbE networking cards to increase application performance.

Active-Active architecture: 2 units in a single chassis

Note: It is recommended to create multiple storage pools and distribute their ownership between both controllers to leverage the strengths of the ES1686dc R2 active-active controller architecture. This allows simultaneous output from both controllers for better load balancing.

Active-Standby Architectur

Active-Standby Architecture

If the active system fails, the standby system starts up and takes over processing.

  • Requires purchasing two systems for HA, doubling the cost.
  • Causes load imbalance as only the active system processes workloads.
  • A power outage may lead to data loss.
  • Network disconnection invalidates the HA architecture, rendering it ineffective.
Active-Active Architecture

Active-Active Architecture

Both systems are active simultaneously.

  • Both controllers handle traffic, optimizing workload distribution.
  • Copy-To-Flash protection safeguards data against power failure.
  • Dual-path SAS interface ensures seamless connectivity.
  • Efficient resource utilization, reducing computational waste.
  • High-speed, uninterrupted, and high-availability storage service.
  • Supports multiple communication protocols: SMB, NFS, and iSCSI.

Intel® Xeon® D processors bring high performance and efficiency

Powered by two Intel® Xeon® D processors, the ES1686dc R2 features a dual active-active controller architecture that provides failover/failback operations as the standby controller takes over if one controller breaks down.

  • CPU

    Intel® Xeon® D-2142IT 8-core 1.90 GHz processor (burst up to 3.0 GHz) per controller.

  • Memory

    64GB RDIMM DDR4 ECC (4 x 16 GB) per controller, up to 512GB (8 x 64GB).

Intel® Xeon® D

SMB Sequential Throughout (10GbE x 8) Write

2201 MB/s
 Read

5773 MB/s
iSCSI Random 4K IOPS (10GbE x 8) Write

178552 IOPS
 Read

254828 IOPS

Tested in QNAP Labs. Figures may vary by environment. Learn more about test environment.

Multi-level cache technology

Multi-tier caching Multi-tier caching

The ES1686dc R2 simultaneously supports main memory read cache (L1 ARC), SSD secondary read cache (L2 ARC), and memory write cache (ZFS Intent Log) to meet performance demands of various enterprise applications.

RAM Expand main memory up to 512GB

Both controllers have eight RDIMM slots, allowing for up to 512GB memory.

The main memory will retain 8GB for use by the write cache.

NVRAM NVRAM

In the event of power failure, the system can write cache data from the battery-protected DRAM to M.2 SSD through Copy To Flash (C2F) to ensure that data is not lost.

To ensure write cache data safety, it is recommended to annually replace the BBU. QNAP provides one-year warranty for the BBU.

PCIe Gen 3 slots

The ES1686dc R2 provides two PCIe Gen 3 x8 slots per controller connected to the CPU, allowing you to add additional functionality to meet growing workload and business requirements.

  • Network Card

    Supports up to 25GbE, boosting virtualization, media file transfer, or adding support for iSER for improved virtualization performance.

    QNAP network expansion cards

  • SAS Storage Expansion Card

    With the QXP-820S-B3408 SAS storage expansion card, you can scale up the ES1686dc R2 with QNAP’s TL SAS expansion enclosures.

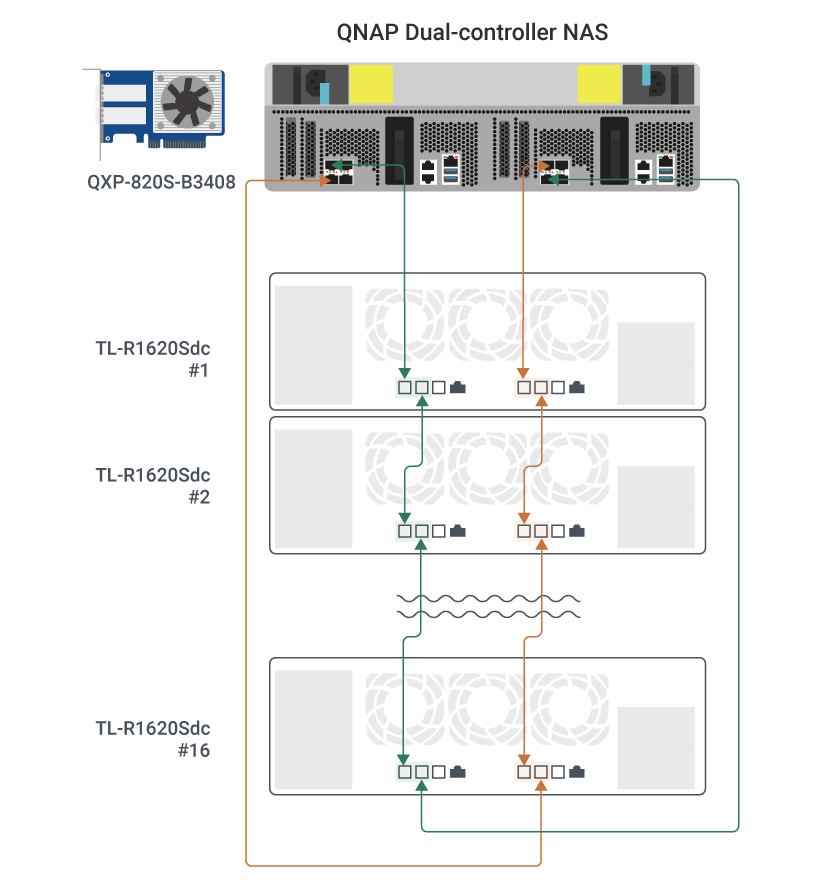

Petabyte-scale, dual-controller SAS storage expansion

Gain petabyte-scale storage capacity using the QNAP’s expansion enclosure. Dual-channel (dual-path) connections allow service continuity even if one node fails.

Dual-controller

NAS hardware you can rely on

  • High-capacity Storage: 16 x 3.5-inch SAS Drive Bays
  • Powerful Processor and Memory: Intel® Xeon® D-2100 seriesprocessor, DDR4 2133MHz ECC memory
  • High-speed Ethernet: 3 x Gigabit ports, 4 x 10GbE SFP+ ports
  • Flexible Expansion and Connectivity: 2 x PCIe Gen 3 x8 slots
  • Others: Power SupplyUnit (PSU), 3 x hot-swappable system fans, Battery Backup Unit (BBU)

QES: ZFS-based OS designed for HA systems

The ES1686dc R2 uses the QES operating system, which is based on the simple and efficient FreeBSD kernel and the ZFS file system that is suitable for high-end enterprise applications.

Learn More: QES 2.2

QES

What’s the difference between QES and QuTS hero?

QES QuTS hero
OS kernel FreeBSD Linux
File system ZFS ZFS
CIFS/FTP/NFS/iSCSI v v
End-to-end data integrity v v
Max. snapshots 65,536 65,536
Remote disaster backup and recovery SnapSync SnapSync
Deduplication v v
Real-time data compression v v
Real-time data compaction v v
Application consistency • Snapshot Agent
• VSS Hardware Provider		 • Snapshot Agent
• VSS Hardware Provider
App Center x v
Supported QNAP NAS models Dual-controller NAS models Single-controller NAS models

Self-healing ensures data integrity and reliability

Designed to ensure data integrity, the QES-based ES1686dc R2 uses end-to-end checksums to detect and correct silent data corruption caused by hardware defects, firmware bugs or metadata errors. If integrity violations are detected, QES automatically repairs the damage using data from the other mirror before the data is passed to applications.

Unleashed SSD potential – agile and cost-effective for the ultimate performance

QES 2.2 features QNAP’s exclusive Write Coalescing algorithm that further optimizes all-flash performance in ZFS, providing a highly cost-effective all-flash solution for enterprise data management and mission-critical services.

QNAP all-flash solution

Write Coalescing

Transforms all random writes to sequential writes along with reduced I/O. This not only increases random write performance for all-flash environments, but also improves SSD lifespan.

Pool over-provisioning

Users can allocate additional over-provisioning for SSDs (from 1% to 60%) and Storage Pools (from 1% to 40%) for a constant performance boost of over 100%.

Deduplication and compression maximizes VDI storage performance

In VDI environments where there could be over 90% duplicate data from virtual desktop OS images and applications, the QES-powered ES1686dc R2 provides businesses with the most cost-effective remote virtual desktop platform and mission-critical information warehousing.

Inline data deduplication

Block-based data deduplication optimizes storage usage and significantly decreases storage capacity requirements.

Inline compression

Shrinks data to reduce storage I/O workloads for improved performance. In VDI, deduplicated virtual desktops are easily cached to achieve optimal virtual desktop performance.

Inline compaction

Especially helpful for increasing SSD storage utilization efficiency when highly repetitive data or massive small files (such as transaction logs of banks or e-commerce) are generated. It delivers higher cost efficiency of all-flash storage systems.

Deduplication helped us achieve our primary goal of increasing storage capacity more efficiently.

Learn more

Real-time SnapSync ensures minimal RPO with real-time disaster recovery

Real-time SnapSync ensures that both the primary and secondary NAS maintain identical data. When data is written to the source, it is immediately written to the destination. If the primary NAS goes offline, IT staff can simply adjust the privilege settings of the secondary NAS to ensure continuous operations. SnapSync provides the strongest support for nonstop business operations and helps users to reduce the risk of data loss.

Learn More: SnapSync

Real-time SnapSync
Business Continuity

Business Continuity

Copy-on-write technology makes QES snapshot creation almost instantaneous without affecting ongoing data writes. SnapSync supports incremental backups, real-time deduplication, and compression. The source ES1686dc R2 performs deduplication before compressing the metadata to reduce synchronized data and save bandwidth.

VMware SRM

VMware SRM

SnapSync supports VMware Site Recovery Manager (SRM) that offers enterprise-class remote backup and disaster recovery solutions for virtual applications. With the Storage Replication Adapter (SRA) for SRM, operation overheads of the ESXi® server can be offloaded to a QNAP NAS to accelerate and simplify virtual machine backup/restore.

Compatible with VMware, Microsoft and Citrix virtualization

The ES1686dc R2 supports VMware® vSphere®, Windows Server®, and Citrix XenServer® for flexible deployment and management in virtualization environments.

Learn More: Storage for Virtualization

VMware

Reliable, high-performance storage for virtualization

The ES1686dc R2 supports block-based iSCSI LUN as a reliable, high-performance, and affordable storage solution for mainstream virtualization environments. It supports VMware® VAAI and Microsoft® ODX to increase performance by offloading server loading for ESXi server and Hyper-V respectively.

Learn More

Supports iSER for Improved VM Performance

The ES1686dc R2 supports iSER, combining iSCSI and RDMA (Remote Direct Memory Access), which can bypass general network drivers, the socket layer, and to directly enter memory buffers of the server and storage. Response time is also reduced to ensure service quality of the NAS.

Build an affordable Fibre Channel SAN environment

Common Fibre Channel Storage Area Networks (SAN) devices are often costly. By installing QNAP dual-port 16Gb/32Gb Fibre Channel expansion cards in the ES1686dc R2, you have more budget-friendly options to add a NAS to a SAN environment. You can set a Fibre Channel Target using the iSCSI & Fibre Channel app. Moreover, the LUN Masking and Port Binding features provide an additional layer of data security.

Learn More: QNAP NAS supports Fibre Channel SAN, QNAP Fibre Channel cards

5-year warranty as standard

The ES1686dc R2 is backed by a 5-year warranty at no extra cost – providing your business organization with greater peace of mind.

Learn More
